Introduction

The fetoplacental circulation, also known as umbilical circuit, with its transport of nutrients, gases, and endocrine signaling, is critical for fetal development. A long tradition of animal experiments has given us indispensable insights into its physiology. However, the introduction of ultrasound techniques enabled studies of the human version of this physiology free from the surgical trauma hampering the experimental procedures. This chapter prioritizes human data where possible, as animal and human physiology are different. For example, fetal lambs have a fundamentally different placenta; four vessels in the umbilical cord; different anatomy of the liver, portal veins, ductus venosus, and intrathoracic inferior vena cava; faster growth; shorter pregnancy; lower hemoglobin; and higher heart rate and temperature than the human fetus.

Anatomy

Technically, the fetoplacental circuit starts in the heart as it ejects blood into the aorta and pulmonary artery, and ends with the inferior vena cava entering the heart ( Fig. 53.1A ). However, the umbilical circulation starts as the umbilical arteries branch from the internal iliac arteries, passing the fetal urinary bladder on both sides to enter the umbilical cord through the umbilical ring. Here the two arteries are bundled with the umbilical vein to communicate with the placenta. The vessels are suspended in Wharton jelly, which prevents external compression of the vessels, and covered with the amniotic membrane to form the free loop of the cord (the amniotic part of the umbilical circuit). At the insertion of the cord in the placenta, the arteries commonly communicate (Hyrtl’s anastomosis) before branching on the amniotic surface of the placenta. The anastomosis equalizes blood pressure and stabilizes the distribution into the smaller arteries in the depths to reach the capillary system of the villi. In the villi, the capillaries communicate extensively with each other before fusing into venules and veins to finally form a single umbilical vein (two umbilical veins in early embryonic development; see Chapter 45 ) that joins the two arteries in the cord on its way to the fetal umbilicus. Here, it enters through the somehow constricting umbilical ring to become the intra-abdominal umbilical vein, embedded in the inferior surface of the liver, and connects with the portal system (see Fig. 53.1B ). During fetal life, the nutritious umbilical venous return feeds the left side of the liver through branches of the left portal system then feeds the shunt ductus venosus that directs blood into the inferior vena cava and foramen ovale. The remainder flows beyond the ductus venosus inlet to merge with blood from the main portal stem and circulate through the right liver lobe ultimately reaching the heart via the hepatic veins and inferior vena cava ( Fig. 53.2 ).

Fig. 53.1, Overview of the umbilical circulation as part of the entire fetal circulation (A) and the distribution of umbilical venous return with central pathways (B). While low-oxygenated blood follows the pathway of “via dextra” (blue), well-oxygenated venous return is fed into the “via sinistra” (red) via the ductus venosus (DV) , foramen ovale (FO) , left atrium (LA) , left ventricle (LV) , and aorta (Ao) , to feed the coronary and cerebral arteries (CCA) before joining the via dextra in the descending Ao. DA, Ductus arteriosus; FOV, foramen ovale valve; IAO, isthmus of the aorta; IVC , inferior vena cava; LHV, left hepatic vein; LP, left portal branch; MHV, medial hepatic vein; MP, main portal vein; PA, pulmonary artery; PV, pulmonary vein; RA, right atrium; RHV, right hepatic vein; RP, right portal branch; RV, right ventricle; SVC, superior vena cava; UA, umbilical artery; US, umbilical sinus of the left portal branch; UV, umbilical vein.

Fig. 53.2, In the fetus, oxygenated blood (red) in the umbilical vein (UV) is either shunted through the ductus venosus (DV) , 20% to 30%, or perfuses the liver, 70% to 80%, feeding the left liver lobe (LL) and then flowing through the transverse part of left portal vein (LPV) and the right portal vein (RPV) to circulate the right liver (RL) blended with low-oxygenated blood (blue) from the main portal vein (PV) . After birth, the UV obliterates and the PV is the sole venous supply to the entire liver. SP, Spine; ST, stomach.

After birth, as the umbilical arteries obliterate and cord is clamped (see “Umbilical Circulation at Birth and Timing of Cord Clamping”), the intra-abdominal umbilical vein obliterates distal to the first portal branches into the left liver lobe (see Fig. 53.2 ), and the entire portal system including the ductus venosus is now supplied from the main portal stem. As for the ductus venosus, 76% obliterate within a week in healthy term neonates, , while in premature neonates , or neonates with pulmonary hypertension, it may stay open for 2 to 3 weeks.

In singleton pregnancies, 0.5% to 1.0% of the umbilical cords have a single artery. These pregnancies have an increased risk of adverse perinatal outcome including small for gestational age neonates. While conventionally the umbilical cord has a central insertion into the placenta, 6% to 7% have a marginal insertion (<3 cm from the placental border) and 1% to 2% a velamentous insertion into the fetal membranes, both associated with an increased risk of adverse perinatal outcome including prematurity and low birth weight.

The Volume of Blood in the Umbilical Circuit

The fetus circulates a blood volume corresponding to 11% to 12% of its weight, which is considerably higher than the 7% during adult life. The reason is that at any time a large proportion of blood is contained within the placenta. This fraction, however, decreases from 50% at mid-gestation to below 25% near term, according to sheep data ( Fig. 53.3 ). Although the fetal liver and splanchnic circuit have a capacity to accumulate blood volume and act as a buffer within the circulation, the umbilical circuit with the huge placental volume represents a correspondingly larger volume buffer.

Fig. 53.3, Fraction of total blood volume contained within the placenta and fetus during the second half of pregnancy.

Umbilical Blood Flow

Umbilical blood flow (mL/min) is a key determinant for fetal growth, has attracted numerous experimental and clinical studies, and is still today of great physiologic interest but has not fully reached clinical applicability. With improved ultrasound techniques and study designs, a number of studies have confirmed and refined the pioneering studies by Gill and colleagues , showing that umbilical blood flow grows steadily during the second half of pregnancy, with some blunting toward term ( Fig. 53.4 ). However, fetuses developing birth weight exceeding the 90th percentile without hyperglycemia have less or no blunting. Although small dimensions impose substantial measurement variation, umbilical flow has been described for gestational weeks 11 to 20.

Fig. 53.4, During the second half of a human pregnancy the umbilical flow grows exponentially, but with a blunted pattern after 32 weeks. Lines = 5th, 50th, and 95th percentiles with 95% confidence intervals (thin lines) .

Before 20 weeks of gestation, umbilical blood flow normalized for fetal weight (mL/min/kg) increases steadily ( Fig. 53.5 ). This hemodynamic development is also reflected in the increasing distribution of fetal cardiac output to the umbilical circuit—that is, from 14% to 21% during 11 to 20 weeks of gestation (see Fig. 53.5 ). These findings in early human pregnancies corroborate previous animal data. These events coincide with establishment of intervillous circulation at the end of the first trimester, which is followed by rapid expansion of the vascular cross-section and a corresponding fall in resistance. ,

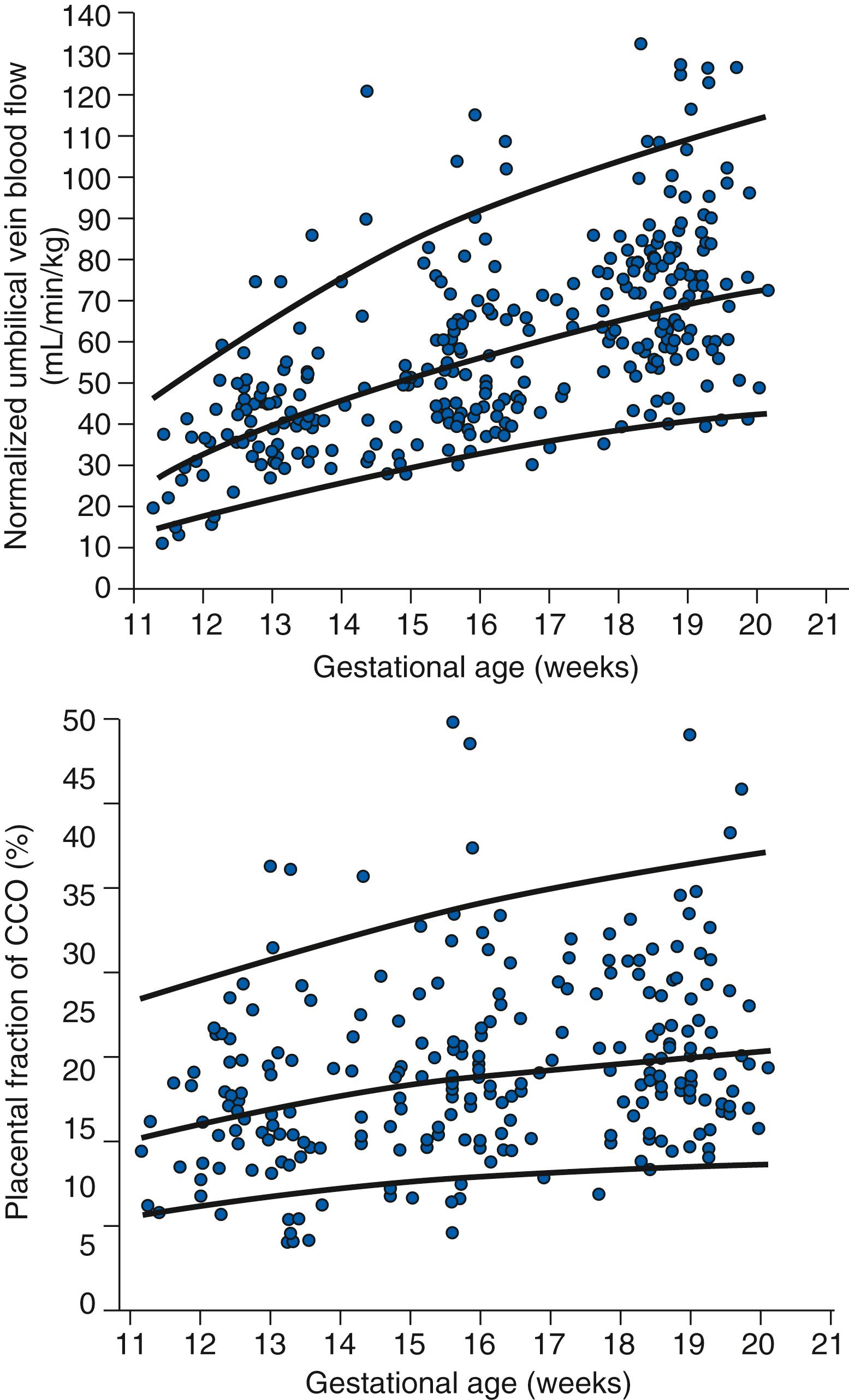

Fig. 53.5, Umbilical blood flow per kg increases during gestational weeks 12 to 19 (upper panel) and constitutes an increasing fraction of the combined cardiac output (CCO) in the human fetus (lower panel) . Lines = 5th, 50th, and 95th percentiles.

After 20 weeks of gestation, however, the umbilical flow per kilogram of fetal weight declines from 105 to 65 mL/min at term ( Fig. 53.6A ). During gestational weeks 20 to 30, a steady fraction (30%) of the total cardiac output is distributed to the placenta. Beyond 30 weeks, the fraction declines to reach 20% or less before term (see Fig. 53.6B ). In contrast, the fetus maintains a combined cardiac output of 400 mL/min/kg during the entire second half of pregnancy. Thus the fetus seems to have a tight regulation to maintain cardiac output per kilogram of body weight, and at mid-gestation it uses 70% of its cardiac output to perfuse its body as the rest (30%) is directed to the placenta. During the last trimester, 80% is circulating to the body, whereas only 20% is directed to the placenta.

Fig. 53.6, Umbilical blood flow normalized for fetal weight declines during the second half of human pregnancies (upper panel) . That is also reflected in the decreased fraction of combined cardiac output (CCO) distributed to the umbilical circulation (lower panel) ; 30% before 30 weeks and at average 20% after. Lines = 5th, 50th, and 95th percentiles with 95% confidence intervals (thin lines) in upper panel, and 10th, 50th, and 90th percentiles in lower panel.

Interestingly, normalized cardiac output is maintained equally well in growth-restricted fetuses, even with the most severe placental compromise ( Fig. 53.7A ), while the fraction distributed to the placenta is significantly reduced and may reach 10% or less in the most severe cases (see Fig. 53.7 , B ). This implies that 90% or more of the blood is recycled within the fetal body without being rejuvenated in the placenta.

Fig. 53.7, Fetuses with intrauterine growth restriction maintain a normal combined cardiac output (CCO) (mL/kg/min) during the second half of pregnancy (A), but distribute a smaller fraction of the CCO to the placenta (PL) (B) graded according to umbilical artery impedance (≈ pulsatility index [PI] ). The most extreme cases with absent or reversed end-diastolic flow (ARED) in the umbilical artery direct ≤10% of CCO to the placenta. Lines = 5th, 50th, and 95th percentiles.

Umbilical Artery Hemodynamics

Umbilical Artery Pressure

Typically, the mean arterial pressure in fetal lambs increases exponentially during the second half of pregnancy, reaching 40 to 60 mm Hg at term. , Less is known of the human fetus. During cordocentesis, Castle and MacKenzie determined mean umbilical artery pressure to be 15 mm Hg at gestational weeks 19 to 21, and during the latter part of pregnancy, Weiner and coworkers measured systolic/diastolic pressures of 63/40, 31/26, and 39/19 mm Hg in three fetuses. Intraventricular measurements suggest that systemic systolic pressure increases from 15 to 20 mm Hg at 16 weeks to 30 to 40 mm Hg at 28 weeks, with negligible difference between the left and the right side. Using mathematical modeling of volume blood flow and diameter variation as measured by Doppler ultrasound, mean aortic blood pressure was estimated to increase from 21 to 45 mm Hg during gestational weeks 21 to 40.

Arterial Pulsation

The pulsation of the umbilical artery blood flow velocity is extensively used in obstetrics because the waveform recorded using Doppler ultrasound indicates the downstream impedance. The waveform is quantified by various indices, the most robust being the pulsatility index ( Fig. 53.8A ). An increased pulsatility index is associated with increased impedance in the umbilical circuit—that is, hemodynamic compromise (see Fig. 53.8B ). , However, the relation between the waveform and resistance in the placental bed is not linear. Obliterating half of the fetoplacental vessels may hardly impact the pulsatile waveform, as shown in embolization experiments and mathematical modeling ( Fig. 53.9 ). , Part of the explanation is that the resistance to pulsatile flow—that is, impedance, in addition to vascular cross-section and length—is governed by the fluid dynamic determinants of pulsation that include frequency, pressure amplitude, and vessel compliance, as well as viscosity when velocities are low.

Fig. 53.8, Normal umbilical artery blood velocity pulse waves recorded with Doppler ultrasound during second trimester (A). Pulsatility index (PI = [ S – D ] / V m ) is a robust way of documenting the wave form. Increased impedance during placental compromise is visualized in a reduced end-diastolic velocity that in extreme cases may be absent or reversed as in the present recording during 24 weeks of gestation (B). D, End-diastolic velocity; S , systolic peak velocity; V m , time-averaged maximum velocity (white line).

Fig. 53.9, Extensive obliteration (e.g., >60%) of the fetoplacental vascular bed is needed to create any discernable impact on the umbilical artery blood velocity waveform, expressed as pulsatility index (PI) , as demonstrated in a mathematical model.

The arterial pulse wave consists of three components: pressure, vessel diameter, and blood velocity wave. As the pulse wave travels downstream in the vascular tree, it moves considerably faster than the average blood velocity in the vessel. The stiffer the vessel, the faster the pressure wave travels. In the fetus, it is estimated that the speed climbs from less than 2m/s to 10 m/s within the first 20 cm from the heart. Thus the pressure wave reaches the periphery early and is reflected whenever there is a change of impedance (which is determined by local vessel geometry and distensibility and blood viscosity). The reflected pressure wave interferes with the downstream velocity wave, which is the reason why velocity waves in the umbilical artery indicate details of the downstream vasculature. Conventionally, the reflected wave will hit the downstream wave with a phase shift and cause a velocity deflection because now it is running in the opposite direction of flow ( Fig. 53.10 ). This is particularly seen in the extreme cases of placental compromise, when the umbilical artery end-diastolic velocity is zero or reversed (see Fig. 53.8B ). In the normally developing umbilical vasculature, this reflected pulse-wave interference is less marked, probably signifying the diffuse distribution of a large number of bifurcations causing the various reflected waves to cancel out each other. The blood velocity waveform in the umbilical artery changes to a less pulsatile pattern with advancing gestation, reflecting continued vascular proliferation.

Fig. 53.10, Arterial blood flows in the direction away from the heart, and the pressure pulse generated in the ventricle runs in the same direction, resulting in a blood velocity increment during systole (S) (upper panel) . However, if the pressure wave runs in the direction opposite to flow, the result is a velocity deflection (lower panel) . That is the case with a reflected wave in arteries, or as here, the atrial contraction wave running away from the heart along the veins in the opposite direction of the venous flow causing a velocity deflection (A) .
