Basics of Electricity and Electronics for Electrodiagnostic Studies
In the office, hospital, and home, we are surrounded by equipment, appliances, and many other devices powered by electricity. Although knowledge of electricity and electronics is not needed to watch television, talk on the telephone, or use a toaster, these examples are just the tip of the electrical and electronic iceberg in the world we live in as electromyographers.
One might ask, is it really necessary to understand the basics of electricity and electronics to perform routine electrodiagnostic (EDX) studies? Although a degree in electrical engineering certainly is not needed, the answer clearly is yes. First, and most important, understanding the basics of electricity is essential to safely perform EDX studies and prevent potential electrical injuries to patients (see Chapter 43 ). Second, all of the responses recorded during nerve conduction studies and needle electromyography (EMG) are small electrical signals that are amplified, filtered, and then displayed electronically. Knowledge of electricity and electronics allows for a better understanding of what these potentials represent. Finally, and equally as important, knowledge of electricity and electronics is critical to understand and correct the variety of technical problems that frequently arise during EDX studies (see Chapter 8 ).
Basics of Electricity
All atoms have a nucleus composed of positively (+) charged particles, protons , and particles with no charge, neutrons . Orbiting around the nucleus are negatively (−) charged particles, electrons . Most atoms have the same number of protons and electrons; the electrons remain bound in their orbit by their magnetic attraction to the protons (i.e., in magnetism, opposites attract).
Electricity is formed when electrons are removed from their orbit and flow to adjacent atoms. Materials that allow electrons to move freely are known as conductors . In contrast, materials that inhibit the flow of electrons are known as insulators . Conductors typically are metals, most often copper. Insulators most often are rubber, plastic, or ceramic. To understand basic electrical circuits, one needs first to be acquainted with several important terms:
-
Coulomb is the standard unit of electric charge, approximately equal to 6.24×10 18 electrons.
-
Current , represented by the symbol I , is the actual flow of electrons. The ampere is a measure of current, designated by the letter A . An ampere is defined as 1 coulomb passing a point in a conductor in 1 second. Current can only flow when a complete circuit exists.
-
Voltage is the electromotive force required to make electricity flow through a conductor. This electromotive force results from a fundamental property of magnetism that oppositely charged particles attract each other. Any source with an excess of electrons (negatively charged particle) will be drawn to a source with a lack of electrons (positively charged particle). Voltage is designated by the symbol E . Its unit of measurement is volts , which is designated by the letter V .
-
Resistance opposes the flow of electrons. Resistance is designated by the symbol R . The unit of measurement for resistance is Ohms , which is designated by the Greek letter Ω . All materials, even conductors, impede the flow of electrical current to some extent. In general, resistance increases with the length of the conductor and decreases as the cross-section of the conductor increases.
Analogy Between Electricity and Water
Because current and electrons cannot be seen, it may be difficult to relate to electricity and its basic definitions. One useful way of understanding electricity and its properties is to make an analogy to the flow of water. The analogy to water and plumbing often is easier to grasp and can be extrapolated to the understanding of electricity.
Water can be measured as a specific volume (e.g., a liter or gallon). Thus a gallon of water is analogous to a coulomb of electricity, an amount of charge. For water to flow, it must have some force that is driving or pushing it. This force can be gravity, in the case of water stored in a water tower, or a pump that mechanically propels the water. In either case, water is put under pressure. Pressure is measured as force per unit area, typically as pounds per square inch (psi). Thus, water pressure is analogous to voltage, the driving electromotive force. Water will flow if there is a pressure difference between two points (i.e., from an area of high pressure to low pressure). Likewise, electrons will flow if there is a difference in voltage between two points. Flow is the actual movement of water, which is measured as volume passing by a point in a specific time period (e.g., gallons per second). Thus flow of water is analogous to current, the movement of electrons, which is measured in amperes (1 coulomb passing a point in a conductor in 1 second). Lastly, resistance to water flow is determined by the physical characteristics of the pipes it is traveling through. Longer and especially narrow-diameter pipes impede the flow of water. Thus the mechanical resistance of a water pipe is analogous to the electrical resistance of a circuit.
The flow of water is determined by Poiseuille’s law :
At point D in the previous figure, the water pressure is essentially zero. Water is taken up by the pump and pressurized, resulting in a high pressure at point A. Water will now flow because it is under high pressure at point A and low pressure at point D. The water pressure at point B will still be high because the diameter of the pipe is so large that it offers little resistance to flow. However, the marked narrowing of the pipe between points B and C increases the resistance to flow. The higher the resistance, the less the flow. Conversely, the higher the water pressure difference, the more the flow. At point C, the water pressure is now very low. However, it must still be slightly higher than point D so that water will flow from point C to D. If extra water were to somehow get into the system and be a greater amount than the water pump could pump, it could easily be diverted to the reservoir (analogous to the ground , see later).
Ohm’s Law
The most important basic principle of electricity is Ohm’s law , which defines the relationship among current, voltage, and resistance in a circuit. Ohm’s law is directly analogous to Poiseuille’s law for water. For electrical circuits, Ohm’s law states that:

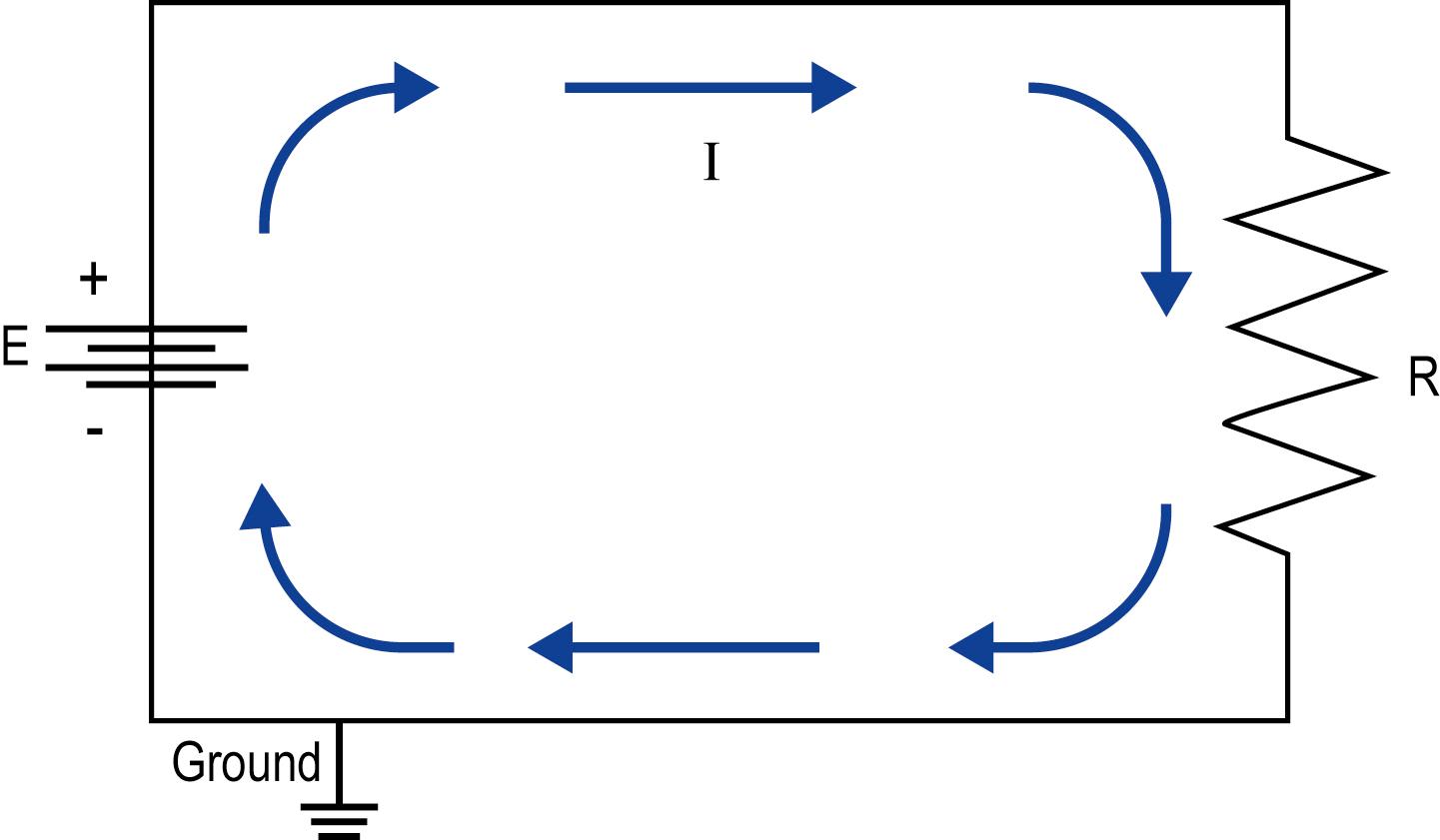

The figure above depicts a simple circuit consisting of a battery (E) (an electromotive source of electrons) connected to one resistor (R) . The amount of current (I) flow is determined by Ohm’s law, I = E / R , where E is the voltage from the battery and R is the resistance. Also note the presence of the ground connection. The ground is ideally a true electrical zero. Most often, true grounds are physically connected to the earth (e.g., through a pipe).
One of the confusing aspects of electricity is figuring out the direction that current actually flows. In the conventional flow notation , electric charges move from the positive (surplus) side of the battery to the negative (deficiency) side. However, as electricity comes about by the flow of electrons, which are negatively charged, the actual flow of electrons occurs from the negative to the positive. In the electron flow notation , electric charges move from the surplus of negative charges at the negative side of the battery to the positive side of the battery, which has a deficiency of negative electrical charges. Both notations are correct when used consistently. The conventional flow notation is used by most electrical engineers and found in most electrical engineering textbooks and will be used in this chapter.
One helpful aid in remembering the relationships in Ohm’s law is the Ohm’s triangle illustration (see figure above). If a triangle is constructed with E at the top and I and R at the bottom as shown, the value of E , I , or R can readily be determined by blocking the variable of interest (shaded in the figure) and looking at the relationship between the other two parameters.
Kirchhoff’s Laws
In addition to Ohm’s law, there are two other important principles, known as Kirchhoff’s laws , with which one must be familiar to understand basic electricity.

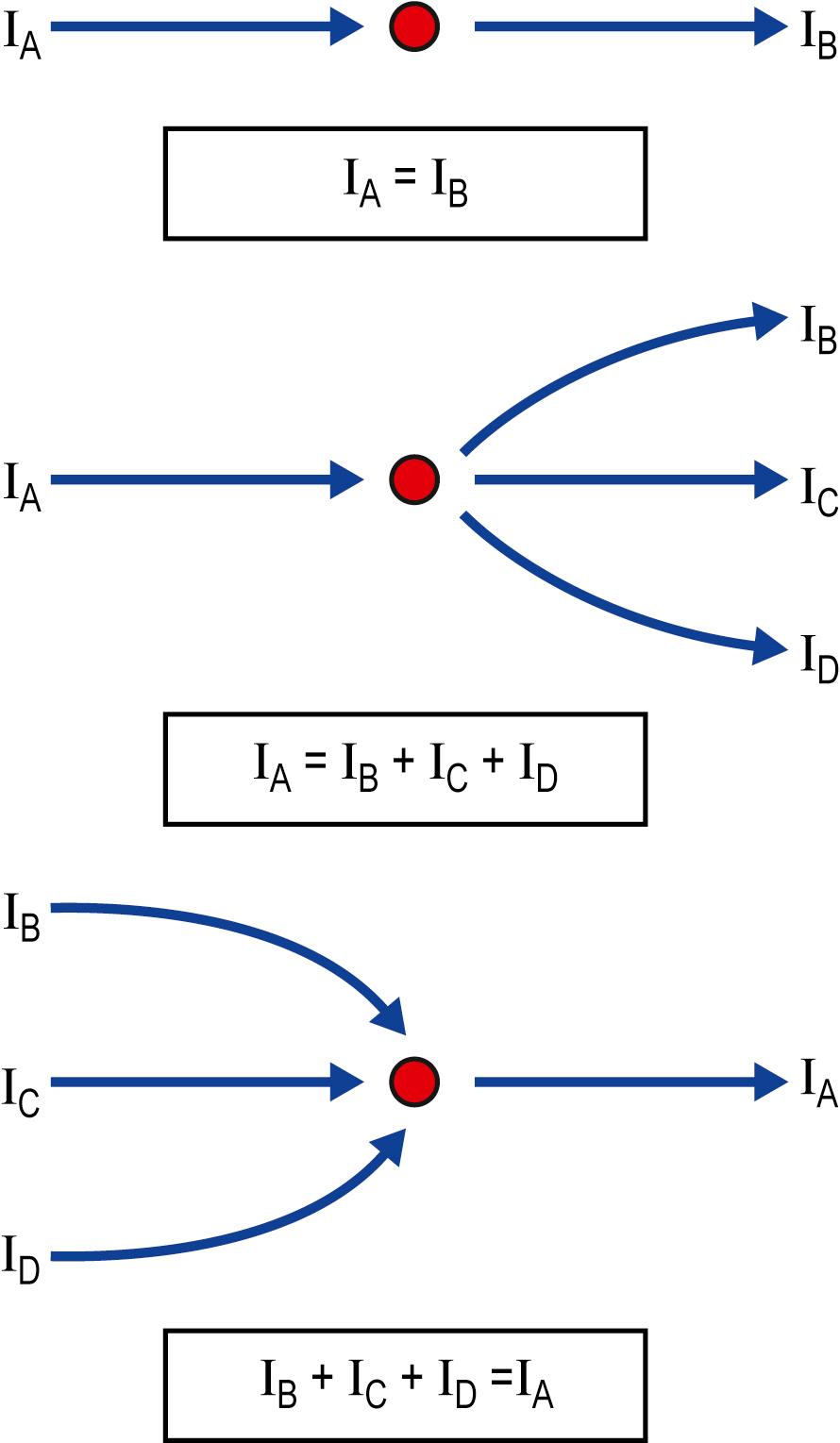

Kirchhoff’s current law states that the algebraic sum of all the currents meeting at any point in a circuit must be zero. Put another way, the sum of incoming currents must equal the sum of outgoing currents. This law represents the conservation of charge. The number of electric charges that flow toward a point must equal the number of electric charges that flow away from that point.

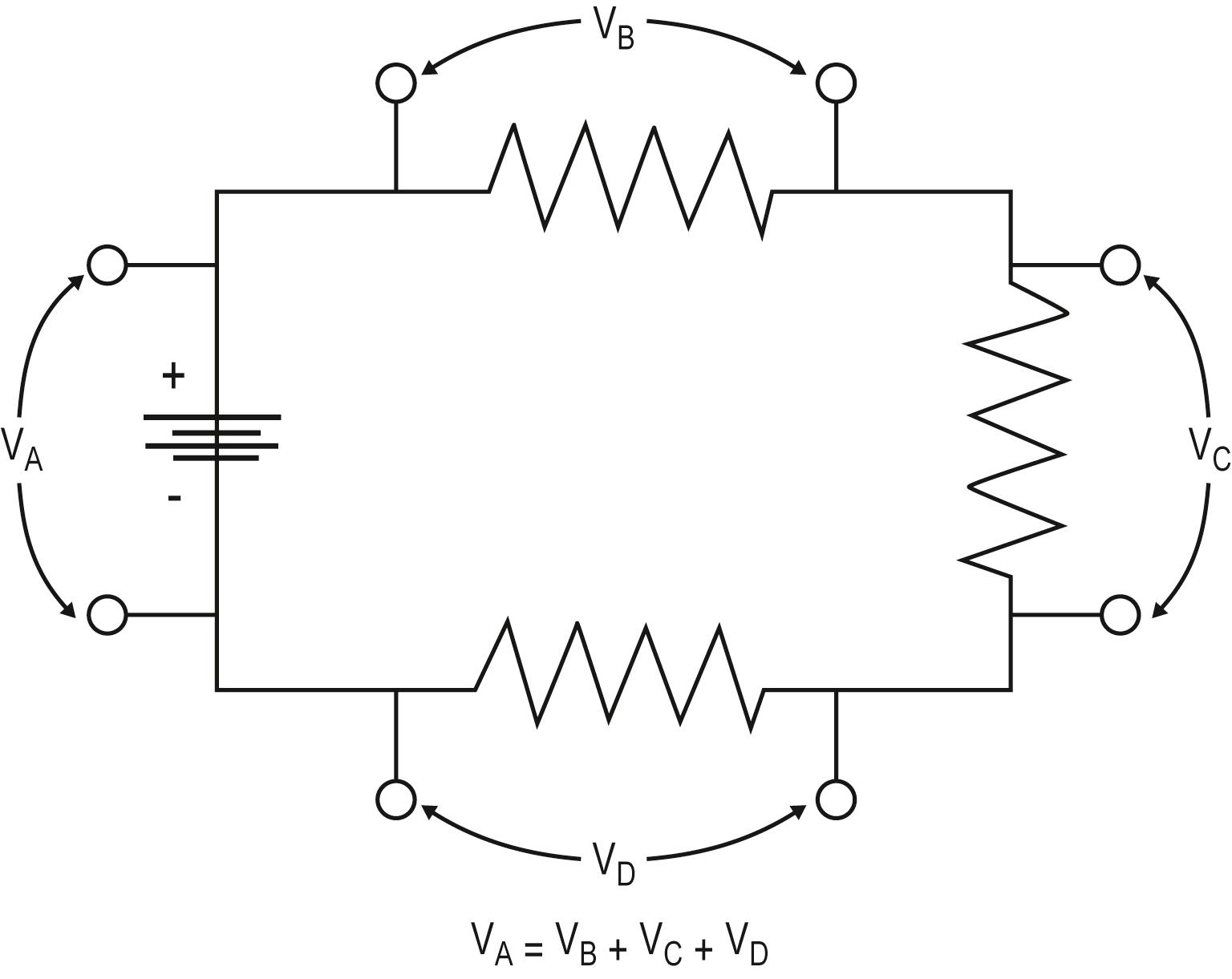

Kirchhoff’s voltage law states that, in a closed circuit, the algebraic sum of all the voltage (i.e., potential) drops is equal to the electromotive source voltage of the circuit. The previous figure shows a battery with a voltage ( V A ) connected in series to three resistors (B, C, D). The current running through the three resistors results in a voltage drop across each resistor, V B , V C , and V D , respectively. Kirchhoff’s voltage law requires that the sum of the voltage drops across all three resistors equals the voltage of the battery (i.e., V B + V C + V D = V A ).
Simple Resistive Circuits
