Video-Assisted Thoracoscopy: Multiportal Uniportal


Introduction

Video-assisted thoracoscopic surgery (VATS) is one of the major innovations in surgery. Within less than 30 years after its modern introduction, almost all of the operations, with only few exceptions, can be performed via VATS. It provides several benefits for the patients, as well as several challenges for the anesthetist. It is an “intentionally created” pneumothorax followed by the introduction of instruments into the cavity to perform the operation.

History

Though thoracoscopic surgery has prospered in the 1990s in terms of surgical spectrum and variability of patients, its history dates back to 19th century. Bozzini was the first to describe a primitive endoscope with a thin cannula and mirrors illuminated by candle in 1806 and named it “Lichleiter,” which is still exhibited in Josephinum of Vienna. However, this device was not largely adopted by the medical community because of low image quality and cumbersome access. Later, modifications, such as introduction of a lens to focus with a direct light source improved visualization, and endoscopes were developed to remove foreign bodies from the esophagus (esophagoscope) or diagnose and treat diseases of the bladder and urethra (cystoscope).

The ontogenesis of thoracoscopic procedures overlaps with the history of discovery and treatment of tuberculosis disease. Artificial pneumothorax was suggested and later published about in an Italian journal for phthisis by Forlany within the same year of the discovery of tuberculosis bacillus. The technique was based on insertion of a needle via and the anterior axillary line and insufflation of air or nitrogen, but the presence of adhesions in the chest wall seemed to limit the expected benefit of the technique. An internist in Sweden, Hans Christian Jacobaeus, who performed the initial step in thoracoscopic history by dividing these adhesions using the two cannula technique via fluoroscopy guidance: the first cannula was the thoracoscope and the second was galvanocautery to be heated at red glow. Ironically, the aforementioned first phases of thoracoscopy were established by pulmonologists and not by surgeons. However, thoracoscopic procedures soon lost their popularity, and thoracoscopy became mostly limited to diagnostic practices with the introduction of antituberculosis chemotherapy in the 1940s. Its rediscovery in trauma surgery was heralded by Branco from Brazil in the 1940s. During the transition period, Bloomberg from the United States continued to perform thoracoscopic procedures and shared his experience at the end of the 1970s. Meanwhile, in Europe, thoracoscopy was not totally abandoned and was applied in the treatment of empyema. During this time, scopes and staple devices further evolved yielding a breakthroughs in minimally invasive surgery, and the once-forgotten technique was revived. The thoracoscopic lobectomy was eventually performed in the 1990s, redefined as VATS, by Roviaro from Milan. Indications have extended beyond the diagnostic issues to achieve a surgical spectrum of thoracoscopic procedures of extended lung resections, including mediastinal mass, thoracic trauma, thoracic wall abnormalities, and esophageal operations. Today, VATS has evolved to subxyphoid, uniportal, or robotic procedures with the goal to minimize surgical injury.

Thoracoscopic surgery today is implemented worldwide. In the 1930s, Dr. Nissen, one of the Jewish academicians who left Germany for Istanbul University before the Second World War, has contributed to the advancement of thoracic surgery in Turkey. Historical progress was similar, starting with surgical treatment of tuberculosis in the 1940s to VATS in the late 1990s, and robotic and uniportal VATS in the 2010s. Today, in the institution of the authors, and in most other institutions worldwide, the majority of the thoracic surgical procedures are performed with VATS.

Techniques of Video-Assisted Thoracoscopic Surgery and Its Advantages

The classical (almost historical) approach of VATS is performed with the standard three-port (up to five ports) technique (camera port, utility port, and posterior/grasping port), in different degrees of lateral position. A video camera is introduced to allow for direct visualization of the entrance of trocars into the thorax.

Unlike laparoscopic procedures, insufflation of carbon dioxide (CO2) into the hemithorax to enhance the view of the working-space (better collapse of the lung; less adhesion etc.) is an uncommon approach in thoracoscopic operations; drawbacks exceeding the evidence of benefit. Insufflation of CO2 into the closed cage of the hemithorax can be associated with hemodynamic instability, hypercarbia, and hypotension. Although non routinely done, more spread during robotic thoracic procedures, the intrathoracic insufflation pressure should be kept below 10 cm H 2 O.

Following its introduction to clinical practice, VATS has been shown to be a reliable method to safely replace—almost—every possible open procedure: “medical thoracoscopies” are performed almost exclusively by pulmonologists for diagnostic purposes; “surgical thoracoscopies” can be diagnostic, where the traditional “diagnostic mini-thoracotomy” has become almost historical, or therapeutic. Because thoracoscopy is a less invasive approach, it has permitted that patients who were not considered to be operated because of their severe comorbidities, are now offered major resections.

Video-Assisted Thoracoscopic Surgery Versus Open Thoracotomy

Contrary to conventional incisions—such as posterolateral thoracotomy—port holes require smaller incisions which would be associated with reduced inflammatory response, better respiratory mechanics, improved respiratory muscle recovery, and certainly lesser pain. Thoracoscopic procedures have become more frequently comprising a wide range of procedures and represent a reliable minimal invasive alternative for high-risk patients.

Initial reports highlighted benefits of VATS in reducing overall complications and decreasing hospital stay. Furthermore, the thoracoscopic approach was found to be more favorable in terms of intensive care unit (ICU) stay time and postoperative pneumonia despite preoperative comorbidities. In several studies, it was shown that VATS minimized complications and enhanced the quality of life in the postoperative period, with less postoperative pain, better pulmonary function outcomes, shorter overall hospital length of stay, and faster return to normal activities. , In 2010, the American College of Surgeons Oncology Group published data of approximately 1000 patients and found that thoracoscopic lobectomy was associated with lower pulmonary complications (atelectasis, chest tube drainage) and shorter length of stay. In 2016, the European Society of Thoracic Surgeons reported results from 235 centers which included 5500 patients (selected among 26,000 according to propensity score). Major cardiopulmonary complications were significantly lower in the VATS group compared with the thoracotomy group (15.9% vs. 16.9%; P = .0094). Length of stay was shorter among the thoracoscopic group as expected ( P = .003). Mortality at discharge was also lower in the VATS group, which, however, needs to be cautiously commented according to authors because of some missing data. A more recent trial by Nwogu et al. has compared VATS with open thoracotomies as length of stay (LOS) for primary outcome. The VATS group had significantly lower LOS (5.4 vs. 8 days; P < .001). Moreover, incidence of complications was consistent with the primary outcome favoring the VATS group (6% vs. 16%; p = .0001). Thoracoscopic surgery is associated with reduced injury, stress response, and may enhance recovery of patients in thoracic surgery. The short-term outcome appeared favorable for thoracoscopic surgery.

In the recently published: “Guidelines for enhanced recovery after thoracic surgery (ERATS),” VATS was recommended for lung resection for early-stage lung cancer with a “high” evidence level and “strong” recommendation grade, stating that “the benefits are even more marked in patients with poor respiratory reserve.”

Long-term results are controversial; studies show either similar results of both approaches, or better results for VATS in terms of survival. Sugi et al. reported a similar oncologic outcome in VATS compared with conventional lobectomy for the following 5 years. Similarly, Whitson et al. did not find any difference in survival between thoracoscopy and thoracotomy. Recently, one center study by Oda et al. in patients with early lung cancer, reported better 5-year survival in patients undergoing thoracoscopic resection. Short-term variables (blood loss, hospital stay, C-reactive protein [CRP] levels) were also significantly advantageous in the thoracoscopy group. The authors speculated that it could be related to lesser tissue damage and inflammatory response screened by CRP values. Other studies confirm that the long-term (5 years) survival was better with VATS when compared with open surgery for early-stage lung cancer , ( Fig. 31.1 ). Another recent study comparing VATS to open thoracotomy for cT1–T2 N1 M0 nonsmall cell lung cancer (NSCLC) showed that VATS had no significant difference in long-term survival, with shorter LOS and similar nodal upstaging rates, considering it suitable for the treatment of NSCLC.

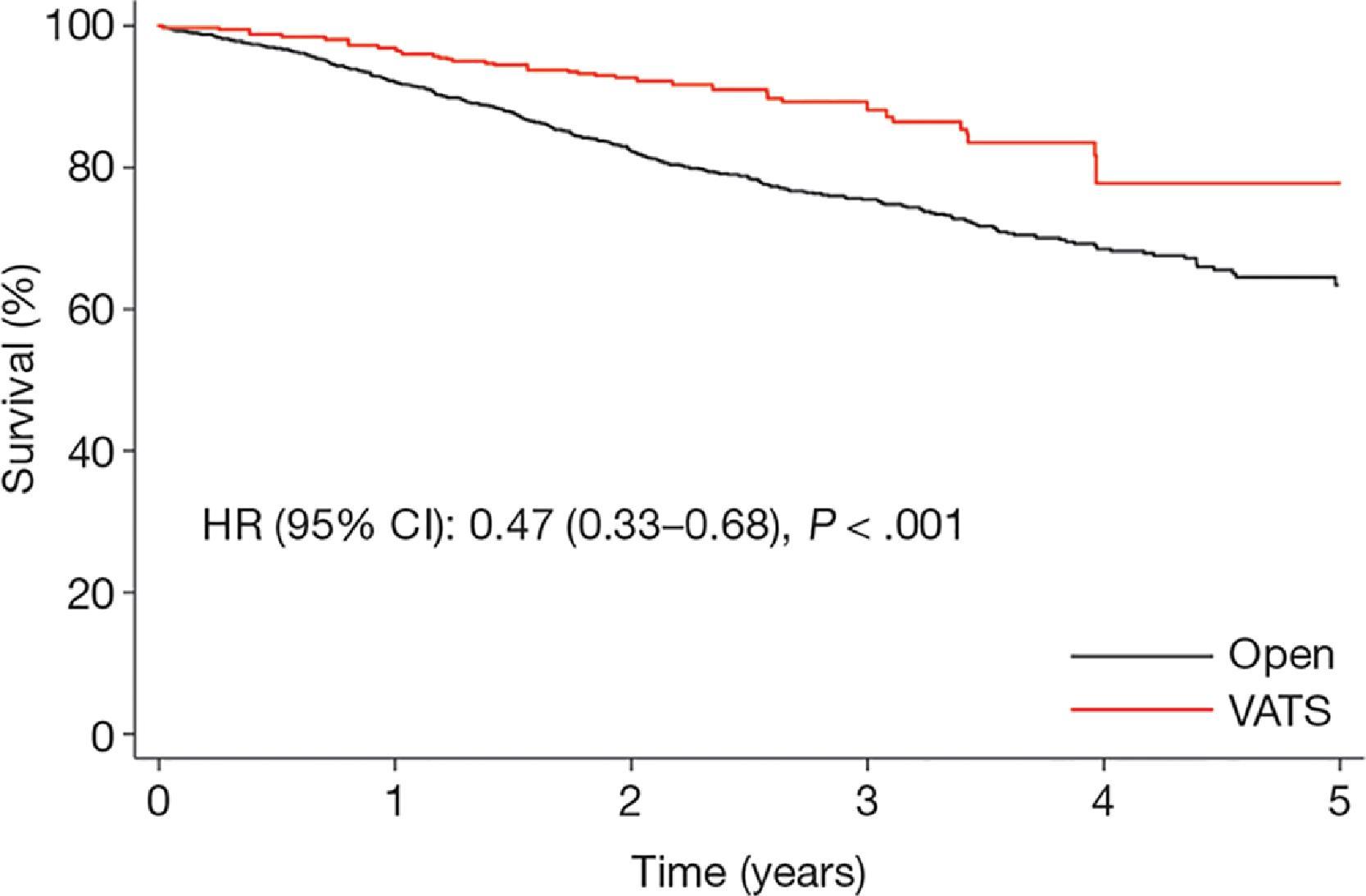

• Fig. 31.1, Kaplan-Meier curve of the survival after open thoracotomy or VATS. CI , Confidence interval; HR , hazard ratio; VATS , video-assisted thoracoscopic surgery.

Today, VATS is recognized by international guidelines as preferred over thoracotomy for treatment of early-stage NSCLC.

An interesting retrospective study revealed similar costs for thoracoscopic or traditional lobectomies. Operative cost was significantly higher with VATS, whereas total hospital cost was similar with traditional lobectomy, but a shorter stay in the thoracoscopic group and increased patients’ turnover abolished the temporary economic issue of conventional approach.

Uniportal Video-Assisted Thoracoscopic Surgery

In a period of less than 20 years, there has been a rapid evolution in the surgical technique of VATS: the classical three-port approach was initially changed to a two-port strategy, and soon afterwards, there was a trend toward a one-port technique, where the camera was moved to the utility port, the camera’s port was abandoned, and the entire procedure was completed using just one incision. Uniportal VATS was first described in 2001, and then reported for simple procedures, such as lung biopsies and spontaneous pneumothorax in 2005.

The expansion of the technique was achieved following the developments by Gonzalez-Rivas et al. in the next 10 years, where the technique was used for more complex procedures, such as pulmonary anatomic and complex resections for the treatment of lung cancer. This strategy achieves a direct vision of the targeted tissue and of the pulmonary hilum. This fact, together with the accession of parallel instrumentation, achieves an approach similar to the open surgery view and maneuvers, making the surgeons feel more comfortable while operating, compared with other VATS strategies. Today, the technique has been adopted, reproduced, and reinforced by the surgical community; however, it is limited by the significant learning curve. ,

Compared with conventional VATS, UniVATS has been shown to be beneficial with shorter LOS in the hospital, duration of drainage, and reduced overall morbidity. One—instead of three—incision is associated with less inflammation and less pain, leading to reduced postoperative complications, with an overall better outcome. It has been used not only in operations like lobectomy or wedge resection but also in more complicated procedures like pneumonectomy, sleeve resection or tracheal and carinal resections.

It should be noted that some trials report no difference between uniportal and multiport VATS lobectomy. Perna et al. have compared uniportal video-assisted lobectomy (group A; n = 51) and other video-assisted thoracoscopic lobectomy techniques (group B; n = 55). The median visual analog pain score in the first 3 days did not show statistically significant differences. Likewise, the median morphine use in the first 3 days did not show statistically significant differences. There was no difference in timing to remove the paravertebral catheter and the chest drain and the duration of the postoperative hospital stay. There was no difference in postoperative complications. In ERATS protocols, it has been stated that “The number of ports used does not appear to affect outcomes, and so, one VATS approach cannot be recommended over another.” As a matter of fact, more and more high quality studies are still necessary to evaluate the potential benefits of this technique. The anesthetic management, including ventilation, for uniportal VATS does not differ from that performed for classical VATS.

Subxiphoid Uniportal Video-Assisted Thoracoscopic Surgery

The subxiphoid approach began its evolution in 1999. First implemented for mediastinal pathologies, in 2014, a subxiphoid UniVATS left upper lobectomy was reported. Following that, many procedures, such as wedge resections, segmentectomies, lobectomies, and even pneumonectomies have been performed by this approach. There are two major advantages of this technique: (1) intercostal nerve injury related to the incision and instrumentation is avoided, and (2) it will allow approaching bilateral lesions from a single incision without changing the patient’s position. Avoidance of intercostal nerve injury has been shown to be associated with significantly lower postoperative pain compared with intercostal UniVATS.

Robotic-Assisted Thoracic Surgery

Robotic-assisted thoracic surgery (RATS) is covered in Chapter 52 in this book in detail. It should be considered as an important step of the rapid changes in the practice of thoracic surgery and anesthesia. A subcostal VATS approach (with or without robotic help) is also one of these promising steps.

Preoperative Evaluation and Prehabilitation

Preoperative Risk Stratification

Preoperative evaluation with risk stratification and scoring systems are extensively explained in Chapter 8 of this book. Regarding VATS, it should be noted that some systems take also “operation-related” risk factors into consideration (e.g., considering pneumonectomy as “high-risk”); however, to our knowledge, none of these risk stratifications and scoring systems differentiated between open thoracotomy and VATS as different risk factors. The risk of a patient undergoing open thoracotomy with similar comorbidities and extent of resection is higher than the patient undergoing VATS. This part will therefore focus on “common” criteria.

Improvements of surgical techniques and advances in anesthesia have resulted in an overall improved outcome. But at the same time, those improvements allowed patients who previously were not considered surgical candidates to now be offered major resections. These patients are older, with multiple comorbidities which in many cases are uncontrolled or not treatable, making the perioperative period challenging, and probably leading to an increase in postoperative complications and decrease survival. Therefore preoperative evaluation and preparation of patients who will undergo a VATS procedure should be revised separately.

Perioperative mortality represents a serious worldwide public health problem. Thoracic surgery deserves special interest because postoperative complications are significantly high (up to 27% in a recent review) ( Fig. 31.2 ). Preoperative assessment and screening of high-risk patients must identify the patient that would benefit from optimizing measures. Increase in patient comorbidities and an increase in awareness during the perioperative period is a relatively new topic which is part of the ERAS (enhance recovery after thoracic surgery) guidelines. A team approach makes sense for this population while assessing cardiac risk, planning optimizing measures, organizing oncologic follow-up, and judging operability. Thus an experienced team should be composed of a pulmonologist, oncologist, thoracic surgeon, and anesthesiologist as well as the patient and the relatives.

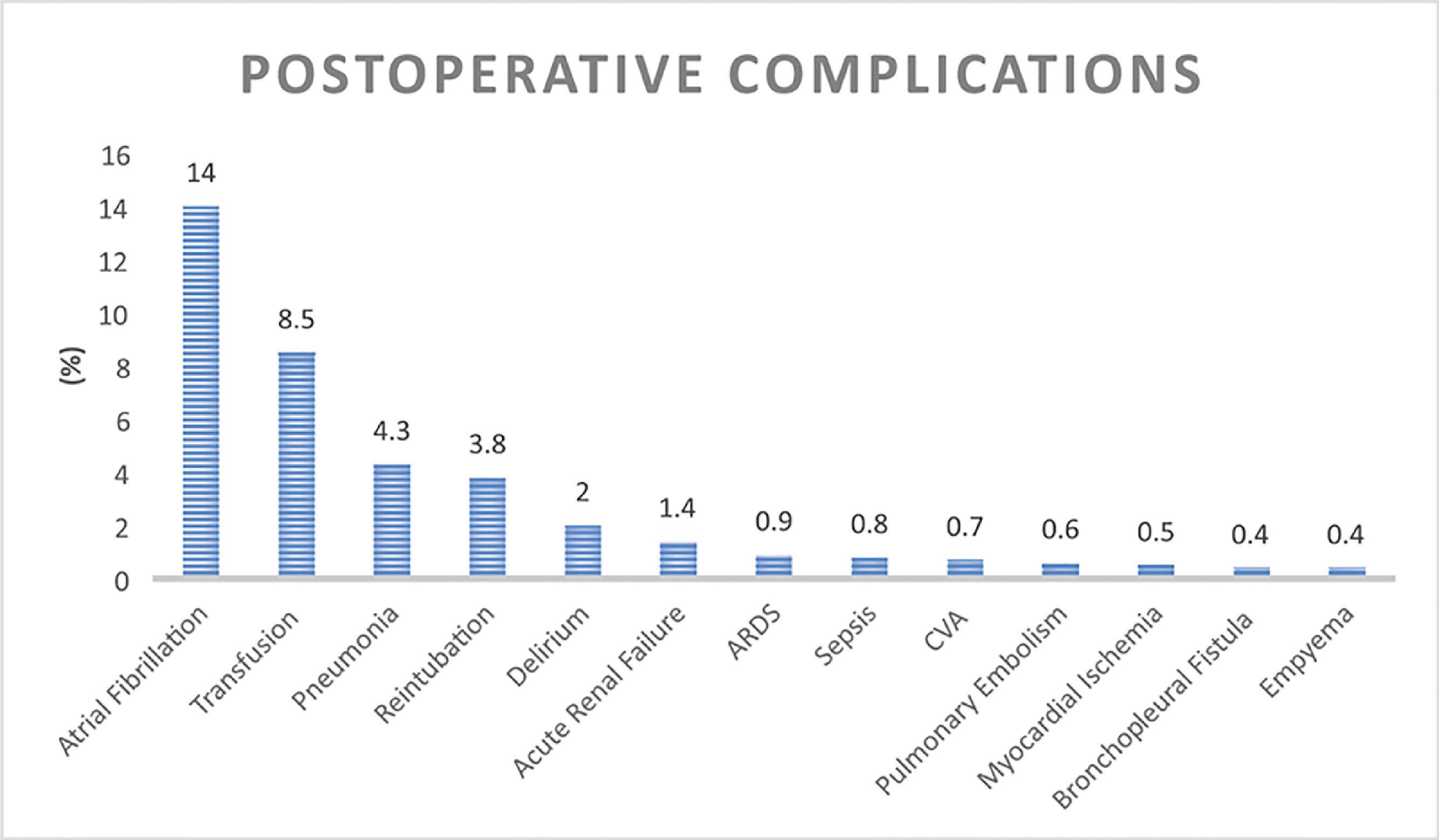

• Fig. 31.2, Incidence of postoperative complications after lung resection. Complications affect survival at different times in the postoperative period. ARDS , Acute respiratory distress syndrome; CVA , cerebrovascular accident.

The first step of preparation can be initiated with cardiac evaluation to determine preexisting risk factors and to treat before surgery. The revised cardiac risk index has been adapted for thoracic surgery ( Table 31.1 ). Three to four subgroups are defined in this scoring system as A (0 point), B (1–1.5 points), C (2–2.5 points), or D (>2.5 points); the latter two described as high risk. The incidence of cardiac event varies in groups for A less than 1.5%, for B 5.8%, for C 19%, and for D 23%. The thoracic revised cardiac risk index (ThRCRI) can discriminate high-risk patients—groups C and D —and may allow for identification of patients who would benefit from additional cardiac evaluation.

Table 31.1
Thoracic Revised Cardiac Risk Index
Point
History of coronary artery disease 1.5
Cerebrovascular disease 1.5
Creatinine >2 mg/dL 1
Pneumonectomy 1.5

A subsequent cardiac issue—generally neglected—is right ventricular (RV) function, which remains affected from the second postoperative day to the second month. Postthoracotomy impaired RV ejection fraction is a recognized phenomenon usually related to elevated pulmonary vascular pressures but also to reduced compliance. Thoracoscopic surgery compared with thoracotomy offers advantages in terms of RV function in the early postoperative course for elderly patients. Not surprisingly, the extent of lung resection directly affects RV changes. Pneumonectomy is found to be associated with more pronounced RV dysfunction compared with lobectomy. Further studies are needed to determine the best predictor for preoperative assessment of RV. Natriuretic peptides seem promising in thoracic patients to detect some CV complications, especially for prediction of postoperative atrial fibrillation. ,

Pulmonary evaluation for lung surgery includes spirometry, diffusion capacity, and exercise tests if needed, as summarized in Fig. 31.3 . Although patients with low risk can be cleared for surgery, in high-risk patients, cardiopulmonary exercise testing should be considered. In a newly introduced algorithm, a slope of minute ventilation to CO2 output ratio seems promising. A slope of more than 34 was associated with increased mortality. In fact, an increased ratio could be explained by respiratory inefficiency and appeared to be associated with increased mortality.

• Fig. 31.3, Risk stratification for thoracic surgery. Note that this algorithm is defined for all thoracic operations, including both open thoracotomies and video-assisted thoracoscopic surgery (VATS). It could be considered that for a patient with similar risk factors, undergoing VATS would be less risky than an open thoracotomy. CPET , Cardiopulmonary exercise testing; DLCO , diffusing capacity for the lung for carbon monoxide; FEV 1, forced expiratory volume in one second; ThRCRI, thoracic revised cardiac risk index; PPO , predictive post operative; VO 2 max , maximum rate of oxygen consumption; VCO2 , carbon dioxide output; VE , minute ventilation; VE/VCO 2 slope , minute ventilation/CO 2 production.

Preoperative Optimization and “Prehabilitation” (See Chapter 9 )

Besides risk stratification, the aim of a preoperative evaluation is optimization and rehabilitation. The anesthesiologist as perioperative physician has to manage treatable conditions to reduce complications. The initial measure should be smoking cessation , as it is a considerable risk factor in lung cancer for both short- and long-term outcomes. , Smoking impairs mucociliary ability to remove pathogens or foreign bodies from the airway and alveolar macrophage activity. In a retrospective study performed with more than 20,000 subjects, smoking cessation was found to be associated with reduced in-hospital morbidity and mortality independent of time interval and amount of smoking. A prospective study affirmed similar results among thoracoscopic lung surgery patients; with incidence of postoperative pulmonary complications (PPCs) 10 times greater in active smokers compared with never smokers and 2 times compared with ex-smokers. Cessation of more than 6 weeks resulted in reduced LOS. However, optimal timing for cessation before surgery has yet to be determined.

Iron deficiency anemia is very common worldwide and affects surgical populations. Screening and treatment of anemia is recommended for expected blood loss greater than 500 mL before surgery. The target value of hemoglobin commonly accepted for preoperative iron therapy is 13 g/dL and replacement is achieved by intravenous (IV) iron if there is a window of less than 6 weeks to surgery. In case of chronic inflammation, diagnosis requires additional findings; serum ferritin levels less than 100 mcg/L or transferrin saturation less than 20% can be considered as inadequate iron stores. Anemia has been associated with worse survival in lung cancers. On the other hand, transfusion itself was related with early recurrence and shorter survival in a meta-analysis of 23 studies. The authors conclude with recommendation of stricter transfusion policy, especially for early stages. Supporting recent results from 15 years’ data of a single center with worse outcome and increased recurrence of blood transfusion. The difference seemed to appear with more than one unit of blood transfusion. Patient blood management, a concept that aims to rationalize blood transfusion, should be applied as possible also in VATS operations.

A relatively new issue of optimization is preoperative habilitation “ prehabilitation, ” which consists of training patients with respiratory or cardiopulmonary exercises before surgery. The expectation is to improve physical performance, to increase exercise tolerance, and to improve health-related quality of life for a well-conditioned patient. Types of exercise are endurance or high-intensity interval trainings (HIIT). The first one consists of moderate intensity efforts and 60 to 120 minutes in daily practice over 6 to 12 weeks. On the other hand, the second one is performed at a high intensity in relatively brief training periods. Licker et al. investigated effects of HIIT and conventional preoperative optimization (nutritional measures, smoking, and alcohol cessation) in patients undergoing lobectomy. The training group attained significantly better peak O2 consumption and 6-minute walking values. Pulmonary complications were significantly lower in the prehabilitation group because of decreased incidence of atelectasis. However, composite outcome, death, and in-hospital complications which was the primary outcome, were similar between groups. Moreover, beneficial effects of a rehabilitation program can be more prominent in patients with respiratory impairment during induction chemotherapy. Initial reports are encouraging with improved aerobic performance and respiratory volumes. Is this progress sufficient to prevent postoperative complications? An adequately powered randomized controlled trial (RCT) that is presently ongoing multicentric study (INSPIRE) hopefully will provide more concrete information.

Lung Isolation (See Chapters 16,17 )

Airway management is a crucial topic of thoracic anesthesia and is covered in different chapters in this book. Here, we aim to inform about specific conditions in VATS operations within a range of general aspects.

History

Historically, lung isolation essays were started with physiologic animal studies by C. Bernard and E. Pflüger in the 19th century. The setup was adapted to volunteers by Loewe and von Schrotter at the beginning of the 1900s, again, for cardiopulmonary physiologic studies. Introduction of the endotracheal tube (ETT), by Gale and Waters, followed by the introduction of the double-lumen tubes (DLTs). The 1950s presented the first double-cuffed double-lumen tube described by Carlens. DLTs designed by Robertshaw were introduced first in red rubber in the 1960s; 20 years later, they are marketed as disposable polyvinyl chloride, and are used worldwide. A rubber bronchial blocker (BB) was first used (positioned by radiography) in the 1930s by Archibald. The use of the fiberoptic bronchoscope was considerably later in the 1980s and constituted a huge advancement in thoracic anesthesia.

Indications

The historical classification of indications for one-lung ventilation (OLV; namely, absolute vs. relative) is not target-oriented and sometimes confusing. From that historical point of view, every VATS operation should be considered as an “absolute” indication of OLV. Currently, thoracic anesthetists agree on the classification of lung isolation versus lung separation: the isolation of the lungs means a completed “anatomic” sealing (conditions like massive pulmonary bleeding, air leak as a result of bronchopleural fistulae, pneumonia with pus, etc.); whereas the separation of the lung means a “functional” sealing. Because most VATS operations require just lung separation and not isolation, both DLTs and BBs can be used. DLT is the most common device used in OLV, but it should be known that in some conditions, BBs can be a more rational alternative ( Table 31.2 ).

Table 31.2
Comparison of Tools for Lung Isolation
Indications Advantages Disadvantages
Double-lumen tube Lung separation (unilateral abscess or cyst; unilateral hemorrhage; bronchoalveolar fistula; unilateral giant bullae, lung transplantation; bronchoalveolar lavage lung isolation (all other indications of OLV, including all kinds of lung resections, and other operations, such as esophagectomy, orthopedic surgery etc.) Familiarity
Easy insertion
Malposition uncommon
Faster, effective lung collapse
Bronchoscopy possible for each lung (operative or other)
Feasible in absence of bronchoscope
Differential ventilation available if needed
Problematic in difficult airway
Not available for each size
Not suitable for postoperative ventilation
Risk of airway (tracheal or bronchial) trauma
Bronchial blocker (BB) Lung isolation (i.e., the majority of cases undergoing VATS) Patient with tracheotomy
Selective lobar placement
Difficult airway
Pediatric patients
Nasal intubation Postoperative ventilation
Experience required
Malposition more common
Bronchoscope mandatory
Difficult to alternate OLV for each lung (except EZ-Blocker)
OLV , One-lung ventilation; VATS , video-assisted thoracoscopic surgery.
