Cardiovascular examination is centered around five main components – all essential for making a diagnosis. In this section we shall discuss inspection , palpation , and percussion . Next we shall address auscultation, first with heart sounds and extra heart sounds, followed by murmurs. The chapter concludes with a discussion on cardiac POCUS and its role in augmenting the five traditional components of the cardiovascular exam.
What are the main components of the cardiovascular physical examination?
The general appearance of the patient (inspection)
The arterial pulse (palpation). This component should also include assessment of the arterial blood pressure (discussed separately in Chapter 2 )
The central venous pressure and the jugular venous pulse (inspection)
Precordial impulses and silhouette (inspection, palpation, and percussion of the point of maximal impulse [PMI])
Auscultation
These five components have been compared to the fingers of a hand, insofar as they are all needed to grab a diagnosis. Cardiac exam also can be compared to the evaluation of a pump, starting with feeding and exit pipes, and ultimately focusing on the pump itself: using your eyes (inspection of the PMI), your touch (palpation of the PMI), and your ears. Auscultation, the queen of cardiovascular exam, is in fact the longest (and largest) of these metaphorical fingers, and thus capable of reaching the farthest. Still, physical examination is only one of five more general components of the cardiovascular assessment. The other are: (1) history; (2) office-based studies (such as POCUS, EKG and chest-x-ray); (3) noninvasive laboratory evaluations (like echocardiography and nuclear medicine); and (4) invasive evaluations (cardiac catheterization).
What aspects of general appearance should be observed in evaluating cardiac patients?
As suggested by , one should sequentially evaluate the following nine areas: (1) general appearance, facies, and body conformation; (2) gestures and gait; (3) face; (4) ears; (5) eyes; (6) extremities; (7) skin; (8) thorax; (9) abdomen.
…With careful practice the trained finger can become a most sensitive instrument in the examination of the pulse…from [its] examination we obtain information on three different points: first, concerning the rate and rhythm of the heart’s action; second, concerning certain events occurring in a cardiac revolution; third, concerning the character of the blood pressure in the artery…The trained finger can recognize a great variety in the apparent volume of the wave itself. Although the pulse wave occupies such a short space of time, yet the sensitive finger readily recognizes these different features. – J. MacKenzie, The Study of the Pulse , 1902
Evaluation of the arterial pulse is a time-honored method of bedside examination. It can still provide valuable cardiovascular information. In selective processes (such as tamponade, aortic valve [AV] disease, and hypertrophic cardiomyopathy), it can even prove essential for securing a diagnosis. Yet, assessment of the characteristics of the arterial pulse requires skill and practice, and at times can be frustrating. It is worth the effort, though, and thus deserves attention even in our times of intraarterial monitoring.
Which arteries should be examined during the evaluation of the arterial pulse?
It depends on what you are trying to evaluate. If you are simply assessing the presence of peripheral pulses, all accessible arteries should be examined. The following points are especially important: (1) arteries on both sides should be compared to detect asymmetries suggestive of embolic, thrombotic, atherosclerotic, dissecting, or extrinsic occlusion; (2) arteries of upper and lower extremities should be simultaneously examined in hypertensive patients, to identify reduction in volume (or pulse delays) suggestive of aortic coarctation. And yet, if trying to evaluate the characteristics of the arterial waveform , you should examine only central arteries – carotid , brachial , or femoral . Since this section focuses on the bedside examination of the arterial wave as part of cardiovascular exam, we will exclusively discuss evaluation of central arteries. Assessment of peripheral vessels will be in the Extremities section.
Isn’t the radial artery the most commonly used vessel for the evaluation of the pulse?
No – and if so, it shouldn’t be, since the radial artery is only suited for evaluation of pulse rate and rhythm – especially in fully clothed patients, a feature that made it quite popular in the prudish Victorian times of Dr. MacKenzie. Conversely, the radial artery is not suited for evaluation of the wave contour , which requires a vessel large and central enough to retain most of the original characteristics of the aortic waveform. For that, the optimal choice is a carotid, brachial, or femoral artery. This is because amplitude and upstroke can only be appreciated in large central arteries (such as carotids and brachial), being otherwise missed in small peripheral arteries, like the radials. In fact, some findings (like the bifid pulse of hypertrophic cardiomyopathy [HOCM]) can only be appreciated on arterial tracing.
What alterations occur in peripheral arteries?
The major ones are an increase in amplitude and upstroke velocity (see Fig. 10.1 ). As the distance from the AV increases, the primary percussion wave that is transmitted downward along the aorta begins to merge with the secondary waves that reverberate back from more peripheral arteries. This fusion leads to greater amplitude and upstroke velocity in peripheral as compared to central arteries. This phenomenon is similar to that occurring at the shoreline, where waves tend to be taller. It is also the mechanism behind Hill’s sign, the higher indirect systolic pressure of lower extremities as compared to upper extremities (see also Vital Signs ).
Are there any findings that are better evaluated in peripheral rather than central arteries?
Pulsus paradoxus and pulsus alternans . Both are best felt over smaller arteries (such as the radial), since the greater amplitude produced by these vessels magnifies the subtle arterial findings of both paradoxus and alternans. Yet, the contour of the arterial pulse should not be examined in peripheral vessels, since the normal alterations in amplitude and upstroke of these arteries might make the pulse of aortic stenosis (AS) inappropriately (and misleadingly) brisk.
What alterations result from decreased arterial compliance?
The same encountered in peripheral arteries: stiffer vessels conduct the waveform with greater velocity, giving the pulse higher amplitude and brisker upstroke , even though stroke volume might be weak and diminished (as in AS). Hence, the arterial pulse of hypertensive, atherosclerotic, and older patients is less reliable for detecting left ventricular outflow obstruction.
What about vasoconstricted arteries?
Highly constricted arteries may also have a diminished pulse, even when stroke volume is normal or increased.
What is the best technique for evaluating the arterial pulse in carotid arteries?
First inspect the carotids in the upper triangular spaces, medial to the sternocleidomastoids. Look for the visible and abnormal pulsations of aortic regurgitation (AR). Then listen over the vessel to rule out bruits. If negative, apply thumb or index over the carotids, one vessel at a time. Vary pressure for optimal evaluation of pulse characteristics (especially amplitude and contour ). Remember that light pressure is often more valuable. Practice and experience are crucial.
What is the best technique for evaluating the arterial pulse in brachial arteries?
First use the fingers of your left hand to palpate the radial artery of the patient’s right arm. Then, use the thumb of your right hand to compress the patient’s brachial artery until the radial pulse is completely obliterated. At this point, release very gently the pressure over the brachial artery until you feel the radial pulse again. Your thumb has now become like a poor man’s transducer, allowing you to feel both amplitude and contour of the brachial pulse.
What should you evaluate when examining the arterial pulse?
You should evaluate the upstroke , the peak , and the downstroke of the waveform. More specifically, you should focus on the following eight characteristics: (1) rate and rhythm; (2) volume and amplitude; (3) contour; (4) speed (or rate of rise) of the upstroke; (5) speed (or rate of collapse) of the downstroke; (6) stiffness (or distensibility) of the arterial wall; (7) presence of a palpable shudder or thrill ; (8) presence of audible bruits or transmitted murmurs .
What are the characteristics of a normal arterial pulse?
A normal arterial pulse comprises a primary (systolic) and a secondary (diastolic) wave (see Fig. 10.2 ). These are separated by a dicrotic notch ( dikrotos , double-beating in Greek), which corresponds to the closure of the semilunar valves (S2).
Are both the primary and secondary wave palpable?
No. Neither dicrotic notch nor secondary wave is normally felt, only the primary wave. Yet, in certain pathologic conditions, a double-peaked pulse may indeed become palpable. Yet, in this case, the two spikes are usually systolic . More rarely the second spike coincides with diastole.
How are primary and secondary wave generated?
The primary wave derives from the ejection of blood into the aorta. Its early portion ( percussion wave) reflects discharge into the central aorta, while its mid-to-late portion ( tidal wave) reflects movement of blood from the central to the peripheral aorta. The two portions are separated by an anacrotic notch , only visible on tracing and usually not palpable.
The secondary wave is generated instead by the elastic back-reflection of the waveform, from the peripheral arteries of the lower half of the body.
What is the significance of a normal rate of rise of the arterial pulse?
It argues against the presence of significant AS, but only in the young (elderly patients may have spuriously brisk pulses – see earlier). Hence, a normal rate of rise can be useful in evaluating a benign systolic ejection murmur.
What is the meaning of a slow rate of rise of the arterial pulse?
A pulse that is reduced ( parvus ) and delayed ( tardus ) argues for aortic valvular stenosis . This also may be occasionally accompanied by a palpable thrill.
Is there any correlation between the slow rise of the arterial pulse and the severity of AS?
Yes. If ventricular function is good, a slower upstroke correlates with higher transvalvular gradient. In left ventricular failure, however, parvus and tardus may occur even with mild AS.
How can you differentiate supravalvular from valvular AS?
Supravalvular AS is associated with right-to-left asymmetry of the arterial pulse: the right brachial is normal while the left resembles the pulse of valvular AS ( Fig. 10.3 ). This is akin to aortic coarctation, and underscores the importance of examining both pulses.
And what about subvalvular stenosis?
In subvalvular stenosis of the hypertrophic variety (HOCM), the arterial pulse is usually brisk and with a double systolic impulse.
What is the significance of a brisk arterial upstroke?
It depends on whether it is associated with normal or widened pulse pressure.
If associated with normal pulse pressure , a brisk upstroke usually indicates two conditions:
the simultaneous emptying of the left ventricle (LV) into a high-pressure bed (the aorta) and a lower-pressure bed. The latter can be the right ventricle (RV; in patients with ventricular septal defect [VSD]) or the left atrium (LA; in patients with mitral regurgitation [MR]). Both will allow a rapid left ventricular emptying, which, in turn, generates a brisk arterial upstroke. The pulse pressure, however, remains normal.
HOCM. Despite its association with left ventricular obstruction, this disease is characterized by a brisk and bifid pulse, due to the hypertrophic ventricle and its delayed obstruction.
If associated with widened pulse pressure , a brisk upstroke indicates AR . In contrast to MR, VSD, or HOCM, the AR pulse has rapid upstroke and collapse.
Beside AR, which other processes cause rapid upstroke and widened pulse pressure?
The most common are the hyperkinetic heart syndromes (high-output states). These include anemia, fever, exercise, thyrotoxicosis, pregnancy, cirrhosis, Beri-Beri, Paget’s disease, arteriovenous fistulas, patent ductus arteriosus (PDA), AR, and anxiety – all typically associated with rapid ventricular contraction and low peripheral vascular resistance.
What is pulsus paradoxus?
It is an exaggerated fall in systolic blood pressure during quiet inspiration. In contrast to evaluation of arterial contour and amplitude, pulsus paradoxus is best detected in a peripheral vessel, such as the radial. Although palpable at times, optimal detection of the pulsus paradoxus usually requires a sphygmomanometer (see Vital Signs section).
What is pulsus alternans?
It is the alternation of strong and weak arterial pulses, despite regular rate and rhythm . First described by Traube in 1872, pulsus alternans is often associated with alternation of strong and feeble heart sounds (auscultatory alternans) . Both indicate severe left-ventricular dysfunction (from ischemia, hypertension, or valvular cardiomyopathy), with worse ejection fraction and higher pulmonary capillary pressure. Hence, they are often associated with an S3 gallop.
What is electrical alternans?
It’s a beat-to-beat alternation of tall and small QRS complexes, still within the realm of a regular heart rate. It may also present as beat-to-beat variation in the direction, amplitude, and duration of any other component of the ECG waveform, although the QRS is usually the predominant one. Undetectable on physical exam, it may coexist with mechanical alternans (which manifests itself through pulsus alternans). The clinical significance of electrical alternans is its association with large pericardial effusions, being seen in 5%–10% of patients with tamponade.
What is the best way to feel a pulsus alternans?
Not on the carotids. Like pulsus paradoxus , pulsus alternans is best assessed in peripheral arteries. This is because smaller vessels tend to magnify variations in volume and amplitude that are crucial for the detection of both findings. To feel a pulsus alternans, either palpate the radial artery at the wrist or use the blood pressure cuff at the arm (beat-to-beat fluctuations in arterial pulse are paralleled by beat-to-beat fluctuations in systolic blood pressure). Slowly deflate the cuff until you hear the first Korotkoff sounds. Notice that only the stronger ejections do indeed produce a sound. After further deflating the cuff, notice that the weaker ejections become detectable too, causing in fact a doubling of Korotkoff sounds. The difference in systolic blood pressure between stronger and weaker ejections is usually 15–20 mmHg, not too dissimilar from that of pulsus paradoxus. Finally, ask the patient to take a deep breath, or suddenly assume an upright position. This may also help eliciting pulsus alternans.
What is the mechanism of pulsus alternans?
There are two schools of thought: one based on contractility and the other on hemodynamics. The contractility school attributes the pulse-to-pulse variation to a beat-to-beat change in left ventricular diameter, which, in turn, leads to a cycling of weaker and stronger ejections through swings in Starling curve position. The hemodynamic school attributes, instead, the variation in left ventricular ejection to a relative change in systolic and diastolic duration. Whenever ejection lengthens (because of increased left ventricular filling), diastole is proportionally shortened. This, in turn, leads to a shorter (and weaker) ejection during the following cycle, with a subsequent proportional increase in diastolic filling. This will then trigger a new cycle of stronger ejection and shorter diastole, with reinitiation of the seesaw.
Can pulsus alternans ever be normal?
It may be encountered in very rapid heart rates (for example paroxysmal tachycardia), where it does not carry the same ominous implications.
What is a bigeminal pulse?
It is also a pulse in which beats occur in pairs (and with different strength), except that this time the rhythm is irregular , and the cause is a bigeminy.
What is a double-peaked pulse? ( Fig. 10.4 )
It is a pulse characterized by two palpable spikes per cycle. The first peak always occurs in systole), while the second may instead occur during systole (as part of the primary wave: pulsus bisferiens and bifid pulse ) or during diastole (as part of the secondary wave: dicrotic pulse ).
Define pulsus bisferiens.
From the Latin bis (twice) and ferio (to strike, i.e., a “double-strike”), pulsus bisferiens is an arterial pulse with two palpable systolic peaks of equal strength. First described by Galen, it has a large amplitude and quick upstroke/downstroke.
What is the best way to detect a pulsus bisferiens?
Through light but firm compression of a large central artery, best if done by using the thumb and slightly elevating the patient’s arm. Too strong of a compression may actually miss it. A pulsus bisferiens can also be detected by a blood pressure cuff, as a closely split Korotkoff sound.
What is the diagnostic significance of a pulsus bisferiens?
It usually reflects moderate-to-severe AR (with or without AS), but can also occur in other high-output states. In AR, however, the double pulse is not only palpable but sometimes even audible . For example, it can be detected as:
Double Korotkoff sound . This is heard during measurement of systolic blood pressure, with the cuff being slowly deflated. It coincides with the systolic arterial peak.
Traube’s femoral sound(s) . Reported by Traube in 1867, this is a loud, explosive, and shot-like systolic sound heard over a large central artery (femoral, usually, but also brachial or carotid), in synchrony with the arterial pulse. It is detected whenever light pressure is applied with the stethoscope’s diaphragm over the artery, coupled with mild arterial compression distal to the stethoscope’s head. Although more often single (and thus called pistol shot sound ), it can also be double (hence referred to as Traube’s femoral double sounds ) and sometimes even triple. It reflects the sudden systolic distension of the arterial wall – like a sail filling with wind. A single shot occurs in approximately half of all AR patients, but may also take place in other high-output states. Double sounds occur in one-fourth of AR patients. Lack of arterial compression distal to the stethoscope’s head sharply decreases the test’s sensitivity, confining it to cases with severe left ventricular dilatation.
What is Duroziez’ double murmur?
It is a to-and-fro double murmur over a large central artery – usually the femoral, but also the brachial. It is elicited by applying gradual but firm compression with the stethoscope’s diaphragm. This produces not only a systolic murmur (which is normal) but also a diastolic one (which is instead pathologic, and typical of AR). Duroziez’ sign has 58%–100% sensitivity and specificity for AR. False negatives may occur in mild disease, concomitant AS, inadequate ventricular filling (due to associated mitral [MS]), inadequate ventricular emptying (due to concomitant MR), or obstruction to waveform transmission (because of aortic coarctation). False positives may occur in all high-output conditions. Yet, in these disorders the murmur is not to-and-fro, but continuous , like that of an arteriovenous fistula. Moreover the double murmur of high-output states is usually caused by forward flow, while in AR only one murmur is due to forward flow; the other is caused instead by reverse flow. The two can be easily separated by applying pressure first on the more cephalad edge of the diaphragm (which enhances the murmur of forward flow), and then on its more caudad end (which enhances the reverse flow murmur). This allows identification not only of AR but also of PDA, the only other high-output state characterized by both forward and reverse flow.
Who was Duroziez?
A colleague and friend of Charcot. Paul L. Duroziez (1826–1897) had a general medical practice in Paris but no official academic appointment. After serving as a surgeon during the Franco-Prussian war of 1870, he became president of the French Society of Medicine and Chevalier of the Legion of Honor. He described his homonymous finding at age 35, in 1861.
What is the usefulness of all these auscultatory findings?
More historical than clinical, although the intensity of femoral pistol shot sounds does indeed correlate with height of pulse pressure. Yet, neither signs of Traube nor Duroziez predict AR severity.
What is the mechanism of pulsus bisferiens?
Not clear. One theory explains the trough between the two peaks as a result of the Venturi effect caused by rapid blood flow. This would pull the aortic walls inward, and trigger a transient arrest in flow – which, in turn, would stop the Bernoulli effect, restart the flow, and thus lead to the secondary peak.
What is the prognostic value of a pulsus bisferiens?
It indicates a very large stroke volume. Hence, it may disappear with left ventricular dysfunction.
What is a bifid pulse?
It is the classic pulse of HOCM. In contrast to bisferiens, the bifid pulse (from the Latin bifidus , cleft) is not detectable at the bedside, unless there is severe outflow obstruction . In fact, most HOCM patients have a normal carotid pulse, with its bifid nature only appearing on tracings (where it presents as a spike and dome pattern ).
What is the mechanism of the bifid pulse?
It is a very rapid early-systolic emptying of the ventricle (causing the first brisk peak), followed by an obstruction, and then by another emptying (causing the second peak).
What is a dicrotic pulse?
It is also a double-peaked pulse (from the Greek di , two and krotos , beat), except that in this case the additional impulse originates in diastole , as an accentuation of the secondary (or dicrotic ) wave. Although the secondary wave is normally seen only on arterial recordings, the dicrotic pulse can actually be felt – usually over the carotids. It is probably due to a rebound of blood against the closed AV, causing a secondary elastic wave. Since this “rebound” requires very elastic arteries, it can only be felt in young patients – and never above the age of 45. The dicrotic pulse is the least common of all the double-peaked pulses, easily separated from bifid and bisferiens because of its diastolic timing and longer interval between peaks.
What is the clinical significance of a dicrotic pulse?
It suggests low cardiac output and increased systemic vascular resistance, as in severe congestive cardiomyopathy or tamponade (especially during inspiration). Hence, it often coexists with pulsus alternans and gallop sounds. In these patients the low cardiac output reduces the primary wave, thus increasing the likelihood of feeling the secondary one. In addition, a dicrotic pulse has also been reported in young healthy individuals as a result of fever.
What is a hypokinetic pulse?
From the Greek hypo (diminished) and kinesis (movement), this is a pulse of diminished amplitude . Causes include: (1) obstruction to left ventricular outflow (AS); (2) diminished left ventricular contraction (cardiomyopathy); and (3) diminished left ventricular filling (MS). A small pulse is also called parvus (“small” in Latin), which usually presents as a slow upstroke ( tardus , “delayed” in Latin). A reduced and delayed pulse (parvus and tardus) narrows significantly the differential diagnosis of a hypokinetic pulse, making AS more likely.
Can arterial characteristics modify a pulsus tardus?
Yes. The stiffer the vessel, the brisker the upstroke. That is why atherosclerosis may obliterate a pulsus tardus. And that is also why older AS patients may lack the typical arterial findings. This atherosclerosis-induced “acceleration” may even occur on central arteries.
Are there any other manifestations of arterial delay?
The apical-carotid and brachio-radial delay (respectively, a palpable delay between apical and carotid impulse, and brachial and radial impulse). Both can occur in patients with valvular AS.
What is the carotid shudder?
It is a palpable thrill felt at the peak of the carotid pulse in patients with AS, AR, or both. It represents the transmission of the murmur to the artery and is a relatively specific but insensitive sign of aortic valvular disease ( Fig. 10.5 ).
What is an anacrotic pulse?
Another sign of AS. The pulse is not only small (parvus) and slow (tardus) but also has an anacrotic notch on its ascending limb. This is visible on arterial tracings but not palpable at the bedside. Hence, it has little clinical relevance. The name derives from the Greek ana (upward) and krotos (impulse) and refers to the upstroke (or ascending) limb of the arterial tracing. It is an abbreviation for “ anadicrotic ” (twice beating on the upstroke) .
What is a hyperkinetic pulse?
A pulse with large amplitude and rapid upstroke (from the Greek hyper , large, and kinesis , motion). It is often referred to as pulsus celer (which is Latin for fast), to distinguish it from the slow and small pulse (tardus and parvus) of AS. The large volume of a hyperkinetic pulse reflects increased stroke volume, while the quick rise reflects increased velocity of contraction.
What are the causes of a hyperkinetic pulse?
Usually the high-output states (including AR), which are typically associated with a widening pulse pressure . A hyperkinetic pulse can also occur in MR or HOCM, but in this case the pulse pressure is normal. Finally, a hyperkinetic pulse may be felt in patients with decreased arterial compliance, like elderly individuals, especially if they are hypertensive.
What is Corrigan’s pulse?
It is one of the various names for the bounding and quickly collapsing pulse of AR. This is both visible and palpable. Another common term for it is “water hammer,” but also cannonball, collapsing, or pistol-shot pulse. Corrigan’s may be so brisk to cause other typical findings, such as De Musset’s or Lincoln’s signs (see also Chapter 1 ).
Who was Corrigan?
Sir Dominic J. Corrigan (1802–1880) was an Irishman. In fact, he was the longest-serving president of the Irish College of Physicians, and a member of Parliament for the city of Dublin. He was also a personal physician to Queen Victoria. In 1832, he published a treatise titled On Permanent Patency of the Mouth of the Aorta, or Inadequacy of the Aortic Valve , where he reported a series of observations on AR. He also reported the visible ( not palpable) characteristics of his famous pulse. Still, a brisk arterial pulse had been described by De Vieussens 100 years before, but Corrigan was the first to make the correlation between this pulse and AR.
What is a water hammer?
A very popular Victorian toy. It consisted of a sealed test tube, partially filled with water or mercury, and all in a vacuum. Since solids and liquids fall at the same rate in a vacuum, the inversion of the tube caused the column of fluid to fall rather precipitously, hitting the glass with a brisk jolt. This made Victorian children happy, and the gadget almost as popular as today’s electronic gizmos. The comparison between the slapping impact of a water hammer and the brisk bounding pulse of AR was first made in 1844 by the English Physician Thomas Watson. It remains part of medical lore today, long after the demise of its homonymous toy.
What is the best way to feel a Corrigan’s pulse?
By elevating the patient’s arm while at the same time feeling the radial artery at the wrist . Raising the arm higher than the heart reduces the intraradial diastolic pressure, collapses the vessel, and thus facilitates the palpability of the subsequent systolic thrust.
What is a pulsus durus?
A pulse so hardened that it is difficult to compress ( durus , hard in Latin). This is usually a finding of arteriosclerosis, which may be associated with Osler’s sign (see Chapter 2 ).
Can the compressibility of the arterial pulse predict the systolic blood pressure?
Yes. To do so, palpate the radial artery with the fingers of your left hand, while at the same time compressing the brachial artery with the thumb of your right hand. Push on the brachial until you have obliterated the radial pulse. If this requires mild force, the blood pressure is probably around 120 mmHg or less. If it requires intermediate force, the blood pressure is 120 to 160 mmHg. Finally, if it requires high force, the blood pressure is probably above 160 mmHg.
How do you auscultate for carotid bruits?
By placing your bell on the neck, in a quiet room and with a relaxed patient. Auscultate from just behind the upper end of the thyroid cartilage to immediately below the angle of the jaw.
What other findings can mimic a carotid bruit?
Systolic heart murmurs. These are only transmitted to the neck. Hence, in contrast to a bruit, they are louder over the precordium than the neck.
Venous hums. These are innocent murmurs caused by flow in the internal jugular vein. In contrast to a carotid bruit, they are loudest in diastole (although, actually, continuous ) and can only be heard in a sitting position (see also later, under Jugular Veins Exam ).
Most carotid bruits are heard in systole . Only a few are both systolic and diastolic. Why this is so is unclear. The major issue of a bruit, of course, is the exclusion of carotid artery stenosis .
Can carotid bruits occur in children?
Yes. In fact, they are present in 20% of children less than 15 years of age.
And what about adults?
They occur in 1% of healthy adults. Still, prevalence and incidence increase with age. For example, prevalence of asymptomatic bruits rises from 2.3% between 45 and 54 years, to 8.2% above age 75. Incidence of new bruits is 1% per year in adults ≥ 65; twice the rate of people aged 45–54. Finally, bruits are very common in high-output states . In hemodialysis patients they are often louder on the side of the A-V fistula, frequently associated with a subclavian bruit.
What is the significance of a carotid bruit in asymptomatic ambulatory patients?
It depends on the age. In a 50-year-old man an asymptomatic carotid bruit is associated with increased incidence of both cerebrovascular and cardiovascular events, with average annual rates of stroke and transient ischemic attacks that are three times higher. This increased risk decreases sharply with age, becoming essentially nonexistent among people older than 75.
What is the significance of a carotid bruit in an asymptomatic preoperative patient?
It depends on the surgery. Asymptomatic preoperative bruits are rather common in the surgical population (10% of patients), a prevalence much higher than in the general population (4.4%). Yet, they do not necessarily predict increased risk of perioperative stroke, although they do predict transient postoperative dysfunction and behavioral abnormalities. Still, in patients undergoing bypass heart surgery the incidence of hemodynamically significant carotid artery stenosis is high (2.8%–11.8%, with no correlation in the asymptomatic patient between presence of a bruit and severity of carotid disease). Risk of perioperative stroke is age-related (1%–3% in patients of all ages, but 3.8 times higher in those older than 70). Hence, detecting a bruit prior to coronary revascularization is ominous, and it mandates further diagnostic studies.
What is the correlation between carotid bruit and symptomatic high-grade stenosis?
It’s high. In fact, bruits presenting with transient ischemic attacks (TIAs) or minor strokes in the anterior circulation should be evaluated aggressively for the presence of high-grade (70%–99%) carotid stenosis, since endarterectomy markedly decreases mortality and stroke rates. Still, while presence of a bruit significantly increases the likelihood of high-grade carotid stenosis, its absence doesn’t exclude disease. Moreover, a bruit heard over the bifurcation may reflect a narrowed external carotid artery, and thus occur in angiographically normal or completely occluded internal carotids. Hence, surgical decisions should not be based on physical exam alone; imaging is mandatory.
The visible oscillations in this region consist of a series of filling and collapses, sometimes prominent and easy to recognize … There is found then, aside from the slow oscillations caused by the respiratory movements and simultaneous with them, the following sequence of movements which is repeated with constant and perfect regularity: at first a slow elevation, then two quick elevations, finally two deep depressions, after which the series begins again. Now each series of this kind corresponds to a cardiac cycle. These impulses sometimes have such force and amplitude that at first it might be believed that they represent pulsation of the carotid artery or of the subclavian. But after a little attention one is soon convinced that they actually take place in the internal jugular. –Pierre Carl Potain. (1867). On the movements and sounds that take place in the jugular veins. Bull Mem Soc Med Hop , Paris 4:3.
We come now to the study of a subject which gives us far more information of what is actually going on within the chambers of the heart. In the study of the venous pulse we have often the direct means of observing the effects of the systole and diastole of the right auricle, and of the systole and diastole of the right ventricle. The venous pulse represents therefore a greater variety of features, and is subject to influence so subtle that it may manifest variations due to the changing conditions of the patient, during which the arterial pulse reveals no appreciable alteration. –James MacKenzie. (1902). The Study of the Pulse, Arterial, Venous And Hepatic, And The Movements Of The Heart . Edinburgh, Young J. Pentland.
Clinical analysis of the venous pulse may not be easy, but there can be no question that five minutes spent observing the movements of neck veins may be as informative as auscultation. –Paul Wood. (1950). Diseases of the Heart and Circulation . London: Eyre and Spottiswoode.
Observation of the jugular venous pulse and measurement of the CVP are more recent acquisitions than the evaluation of the arterial pulse. Yet, they can still provide a wealth of valuable clinical information; especially when trying to assess intravascular volume, evaluate right ventricular function, test the integrity of pulmonic and tricuspid valves, and investigate the status of the pericardium. Skills are difficult. At times even intimidating. Yet, they are worth the effort, even in our times of invasive hemodynamic monitoring.
What is the history behind the examination of neck veins?
The first report of venous pulsations goes back to the 17th century, when the Italian Giovanni Maria Lancisi (1654–1720) described a “systolic fluctuation of the external jugular vein” in a patient with tricuspid regurgitation (TR; i.e., the large systolic jugular wave replacing the normal trough that is still referred to as the Lancisi’s sign – in these patients, also watch for earlobe pulsations, especially on the right side). In 1867 Pierre Carl Potain carefully described the jugular waveform in a paper titled Movements and Sounds that Take Place in the Jugular Veins . Forty years later, the Scottish Sir James MacKenzie published The Study of the Pulse , a seminal work, which summarized 20 years of clinical assessment of both venous and arterial pulsations and established the jugular venous pulse as one of the essential elements of cardiovascular examination. It also contributed the standard waveform terminology (A, C, V waves and X-Y descent) still used nowadays. Yet, it was only in the 1950s that the examination of the jugular venous pulse (and pressure) became a standard component of bedside examination, thanks to the influence of the charismatic British physician Paul Wood.
What is the role of physical exam in assessing neck veins?
Twofold: (1) To estimate the CVP and (2) To evaluate the venous pulse .
What is the central venous pressure (CVP)?
The pressure within the right atrium (RA)/superior vena cava system, i.e., the right ventricular filling pressure . As pulmonary capillary wedge pressure reflects left ventricular end-diastolic pressure (in the absence of MS ), so CVP reflects right ventricular end-diastolic pressure (in the absence of tricuspid stenosis [TS]).
Which veins should be evaluated for assessing venous pulse and CVP?
Central veins, as much in direct communication with the RA as possible. The ideal one is therefore the internal jugular .
What is the clinical value of jugular venous distension and pulse?
It is a poor man’s monitor of right heart hemodynamics. More specifically:
Evaluation of jugular venous distension provides a noninvasive estimate of CVP and intravascular volume.

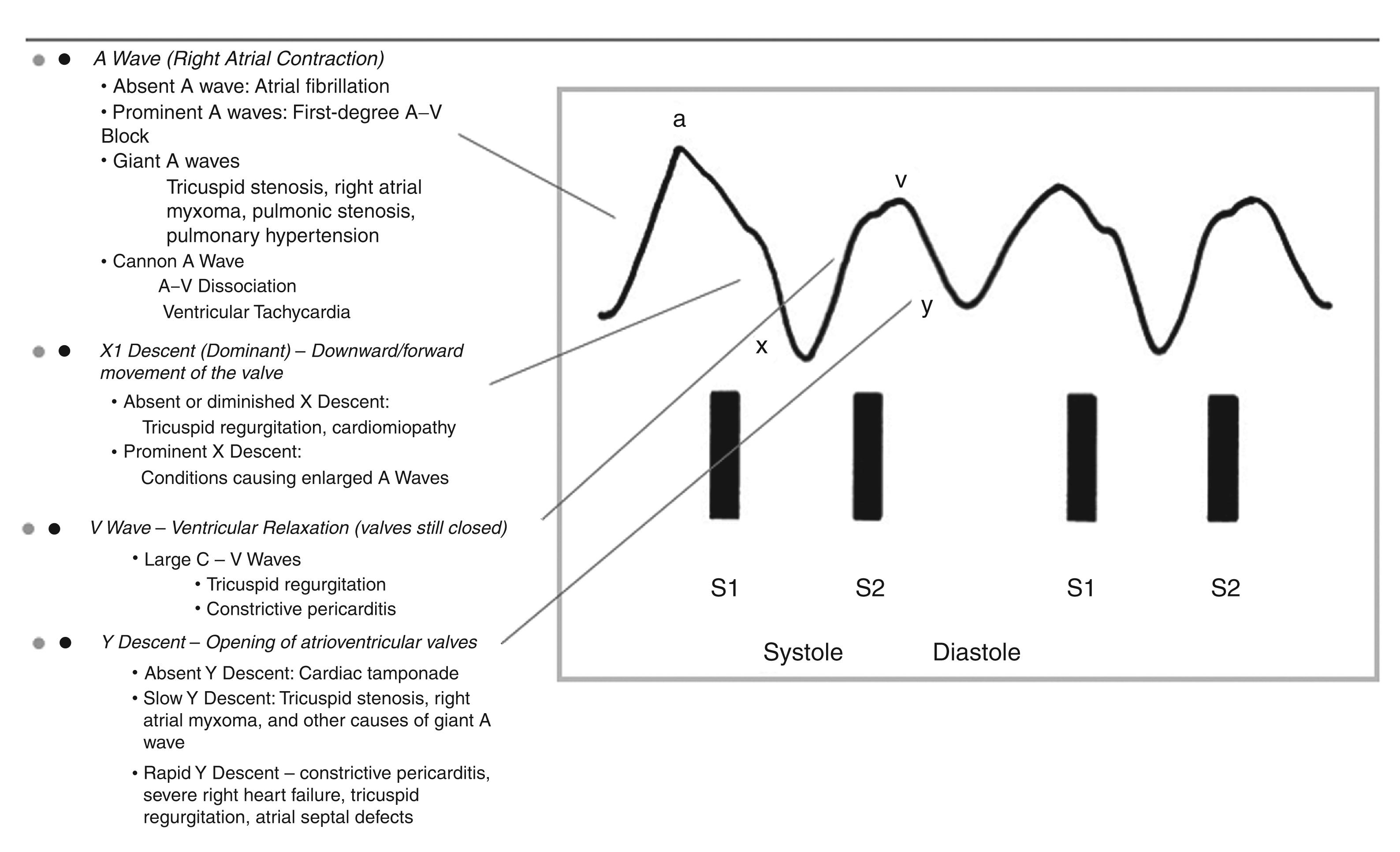

Evaluation of jugular waveform provides instead additional information on right ventricular function, the status of tricuspid and pulmonic valves, and the presence (or absence) of pericardial constriction.
Should one inspect the right or the left internal jugular vein?
Ideally the right, since it is in a more direct line with the RA, and thus better suited to function as both a manometer for venous pressure and a conduit for atrial pulsations . Moreover, CVP may be spuriously higher on the left as compared to the right. This is because of the left innominate vein’s compression between aortic arch and sternum.
Can the external jugulars be used for evaluating central venous pressure?
Both the internal and external jugular veins can actually be used for estimating CVP, since they yield comparable estimates. Hence, if the only visible vein is the external jugular, do what Yogi Berra recommends you should do when coming to a fork on the road: take it.
But don’t external jugulars have valves?
They do, but so do the internal jugulars. Yet, this doesn’t interfere with estimation of CVP, since the normal flow of blood is toward the heart , and not from it. It might interfere, though, with evaluation of the venous pulse (see later).
Still, aren’t the internal jugulars too deep for an accurate inspection?
They are quite deep, and thus not as visible as the external jugular (in fact, if you see a plump subcutaneous neck vein, as turgid as the one on the dorsum of your hand, it is probably the external jugular). And yet, the pulsations of the internal can be transmitted quite well through the overlying sternocleidomastoids, making its waveform recognizable as a skin flickering.
What is the anatomy of internal and external jugular veins?
The external jugulars lie above the sternocleidomastoid muscles, coursing obliquely from behind and laterally toward the angle of the jaw ( Fig. 10.6 ). The internal jugulars lay instead below the sternocleidomastoids, crossing them in a vertical straight line. At the junction with the subclavian veins, the internal jugulars create a dilatation known as the bulb , which is often visible between the two heads of the sternocleidomastoid muscles.
How do you examine neck veins?
By carefully positioning the patient (so that the veins fill enough to become visible), and then by tangentially shining a light across the neck. Venous pulse will only be visible and, unless the right ventricular pressure is extremely high, is not palpable.
How important is the patient’s position during examination of the neck veins?
Of enormous importance:
The head should be supported, so that the neck muscles are fully relaxed and not impinging upon the jugular veins.
The trunk should be inclined and raised. The angle of inclination must allow the top of the column of blood in the internal jugular to reach above the clavicle but still to remain below the jaw. This inclination will vary depending on CVP:
In patients with normal CVP , the required angle is usually 30–45 degrees above the horizontal.
In patients with elevated CVP , the required angle is >45 degrees. In fact, patients with severe venous congestion may have to sit upright and take a deep inspiration in order to lower the meniscus down into full view. In some of these patients the level of venous pulsation may still remain behind the angle of the jaw, where it will appear to flicker the earlobes.
In patients with very high CVP , the internal jugular will be so “full” that pulsations may not be visible even when the patient is fully upright. The risk in this case is to overlook the high venous pressure and call it normal.
In patients with low CVP , the required angle is usually between 0 and 30 degrees.
In patients with very low CVP , the neck veins will be so empty that pulsations may not be visible at all, even when the patient is fully horizontal.
Hence, to get a good look at venous pulsations you may need to vary patient’s position based on volume status .
How do you tell the carotid pulse from the jugular venous pulse?
By the following differentiating features:
The waveform is different: the venous pulsation is diffuse, at least bifid , and with a slow upward deflection. Conversely, the carotid pulse is well localized, single , and with a fast outward deflection. Also, the most striking event in the venous pulse are the descents, while in the arterial pulse is the ascent.
The response to position is different: the carotid pulse never varies with position. The venous pulsations classically do so. In fact, as the patient sits up or stands, they move down toward the clavicle and may even disappear below it. Conversely, as the patient reclines, venous pulsations gradually climb toward the angle of the jaw. They may even disappear behind the auricle.
The response to respiration is different: in the absence of intrathoracic disease (and Kussmaul’s sign – see later), the top of the venous waveform descends toward the heart during inspiration (because of lower intrathoracic pressure and greater venous return). The carotid pulse, instead, remains unchanged. The only exception is pulsus paradoxus, and even in this case, the variation is rarely visible, at most palpable. Note that inspiration makes jugular “pulsations” more visible (by enhancing venous return), even though it also lowers the mean jugular “pressure.”
The response to palpation is different: the jugular venous pulse is usually too light to be palpable. Even gentle pressure will collapse the vein, engorge its more distal segment, and obliterate the pulse. Conversely, the carotid is not only palpable but quite forceful too.
The response to abdominal pressure is different: sustained pressure on the abdomen (the abdominojugular reflux test , see later) will not change the carotid pulse, but will increase (at least momentarily) even the normal venous pulse.
Characteristic | Internal Jugular Vein and Jugular Venous Pulse | Carotid Artery and Carotid Pulse |
---|---|---|
Location | Low in neck and lateral | Deep in neck and medial |
Contour | Double peaked and diffuse | Single peaked and sharp |
Character | Undulant, usually not palpable | Forceful, brisk, easily felt |
Response to position | Varies with position | No variation |
Response to respiration | Mean pressure decreases on inspiration (height of column falls), but A and V waves become more visible | No variation |
Response to abdominal pressure | Displaces pulse upward and induces transient increase in mean pressure | Pulse unchanged |
Effect of palpation | Wave visible but nonpalpable. Gentle pressure 3–4 cm above the clavicle obliterates pulse and fills the vein | Pulse unchanged. Vessel difficult to compress |
What are the components of the jugular waveform?
It depends on whether you are looking at a patient or a tracing. Jugular vein undulations reflect phasic pressure changes in the RA. Yet, because the fluctuations in venous pressure are so mild (3–7 mmHg, or 4–11 cmH 2 O), peaks and troughs of the venous pulse can be easily recorded but remain difficult to appreciate at the bedside. As a result:
On venous tracings the jugular pulse consists of three positive waves (A, C, and V) and three negative descents (X, X1, and Y). The A wave is followed by the X descent, the C wave by the X1 descent, and the V wave by the Y descent.
At the bedside the jugular venous pulse consists instead of only two positive waves (A and V – with A taller than V) and two negative descents (X1 and Y – with X1 steeper than Y). Neither the C wave nor the X descent are visible (C is usually lost in the A wave, and X is merged with X1). Note that descents are easier to spot than ascents.
What is the physiology of the jugular venous pulse?
The jugular venous pulse reflects the relationship between volume of blood in the venous system, venous vascular tone, and right heart hemodynamics. Hence, during diastole it reflects right ventricular filling pressure, whereas during systole it reflects right atrial pressure.
What is the physiology of the various ascents and descents of the jugular venous pulse?
It is the physiology of right-sided chambers. Thus, in assessing the jugular venous pulse, it is important not only to visualize peaks and troughs but also to relate these undulations to various physiologic and clinical events, such as the EKG, the carotid pulse, and the heart sounds ( Fig. 10.7 ). More specifically:
The A wave (the first and dominant positive wave) is produced by right A trial contraction. It follows the P wave on EKG, coincides with the fourth heart sound (if present), and slightly precedes both first heart sound and carotid upstroke.
The C wave , the second positive wave (only visible on recordings), is produced by the bulging of the tricuspid cusps into the RA, and thus coincides with ventricular isovolumetric contraction. Note that a very small component of “C” is produced by the transmitted carotid pulsation – in fact, Mackenzie considered it an entirely C arotid artifact; hence the label “C.” Also, note that the interval between A and C corresponds to the P-R interval on EKG (this was one of the methods used by Wenckebach to describe the second-degree heart block that still carries his name). Because the C wave is not visible at the bedside, it is omitted from the remainder of our discussion.
The early X descent (located between A and C) is produced by right atrial relaxation. The most dominant later trough (X1 , i.e ., the “x-prime”) is produced instead by the pulling of the valvular cusps into the RV. This downward and forward movement of valve and atrium floor (descent of the base) coincides with right ventricular isotonic contraction and acts as a plunger, creating a sucking effect that draws blood from the great veins into the RA. The X1 descent occurs during systole , coincides with ventricular ejection and the carotid pulse, takes place between S1 and S2, and ends just before S2. Note that this discussion disregards the early X descent and uses instead this term to refer to the combined X and X1 troughs – only X1 is visible at the bedside.
The V wave (the third positive wave) occurs toward the end of V entricular systole and during the early phase of ventricular diastole. It coincides with the apex of the carotid pulse and peaks immediately after S2. Because the ventricle relaxes while the tricuspid valve is still closed, blood flowing into the RA starts building up, generating a positive wave.
The Y descent (the final negative trough) occurs during early ventricular diastole. It is due to the opening of the tricuspid valve and the emptying of the RA. It corresponds to S3.
Clinically, the only visible peaks are A and V; the only visible troughs are a combination of X1 and X (which we will herein refer to as “X”) and Y; the A wave is usually more prominent than the V wave, whereas the X descent is usually more prominent than the Y descent. Overall, it is easier to time the pulse by using the X and Y descents than the A and V waves .
Who was Wenckebach?
Karel F. Wenckebach (1864–1940) was a Dutch physician. Building on an 1873 observation by the Italian physiologist Luigi Luciani, he reported in 1899 the phenomenon that still carries his name. He described it in a 40-year-old woman who had presented with an irregular pulse. Wenckebach based his conclusions on tracings of the patient’s arterial pulse, observations of her venous pulse, and intraatrial and intraventricular recordings in a frog. His insight preceded the invention of electrocardiography by 2 years, the discovery of the atrioventricular node by 7 years, and the description of the sinoatrial node by 8 years. Yet, despite his genius, he remained a simple and unassuming man, full of charm, self-deprecating humor, and a love for the arts and the English countryside. He was famous for quipping that he was not a great man, just a “happy man.” His colleagues loved him, and many affectionately referred to him as “Venky.” His many friends included Sir William Osler and James MacKenzie (with whom he maintained a long correspondence, praising him for his 1902 book The Study of the Pulse ). A master of physical diagnosis and a pioneer in arrhythmias, Wenckebach linked his name not only to the homonymous phenomenon but also to one of the first reports on the beneficial use of quinine in atrial fibrillation. He taught at Utrecht, Groningen, Strasbourg, and, finally, Vienna, where he died of urosepsis just after the onset of World War II.
What is the influence of respiration on the jugular venous pulse?
Inspiration increases venous return. This, in turn, distends the right-sided chambers and, because of the Starling effect, makes right atrial and right ventricular contractions stronger. As a result, the jugular venous pulse becomes more visible in inspiration, with brisker X and Y descents (i.e., the troughs of the venous pulse). Even the positive waves become more accentuated. Conversely, exhalation lessens the A wave to a point that V becomes dominant.
What is the influence of respiration on the jugular venous pressure?
The opposite. Inspiration lowers the mean jugular venous pressure; exhalation increases it.
Which diseases can be diagnosed by jugular venous pulse? ( Fig. 10.8 )
Quite a few. Some are both common and important, affecting either waves or descents .
What are the most important abnormalities of jugular waves?
For both this and the next question see Fig. 10.9 .
Giant A wave. In addition to TS, this can also occur in increased right ventricular end-diastolic pressure (from pulmonic stenosis [PS], primary pulmonary hypertension, pulmonary emboli, or chronic pulmonary disease). In these patients the large A wave reflects a strong atrial contraction against an increased ventricular resistance, presenting with a concomitantly blunted and small Y descent . The acoustic counterpart of a giant A wave is a right-sided S4, while its electric equivalent is a P pulmonale. Giant A waves may also be seen in marked left ventricular hypertrophy (LVH; like AS, severe hypertension, or hypertrophic obstructive cardiomyopathy). In these patients, the ventricular septum bulges toward the right, making right ventricular filling more difficult (the Bernheim effect, from Hippolyte Bernheim, the French physician and hypnotist who described it in 1910).
“Cannon” A waves are the hallmark of atrioventricular dissociation (i.e., the atrium contracts against a closed tricuspid valve). They are different from the other prominent outward waves (like the presystolic giant A wave), insofar as they begin just after S1, since they represent atrial contraction against a closed tricuspid valve. Giant A waves, on the other hand, begin just before S1 – like the large V waves of TR (see later). Intermittent cannon A waves reflect atrioventricular dissociation in a setting of ventricular tachycardia, while regular cannon A waves reflect atrioventricular dissociation in a setting of supraventricular tachycardia with retrograde atrial activation.
The V wave is classically increased in TR, where it becomes the dominant wave, associated with a brisk Y collapse (a more gentle Y descent usually indicates concomitant regurgitation and stenosis). Abdominal compression may help to unmask more subtle and subclinical cases. Prominent V waves can become so large that they were dubbed by Paul Wood “the venous Corrigan.” In fact, they may even cause bobbing of the earlobes (the Lancisi’s sign). Since the CV merger responsible for the giant V wave entirely eliminates the X descent , a giant V wave is easy to spot; it starts just after S1 and leaves the patient with only one ascent (the V wave) and one descent (the Y descent). The giant V wave is not too sensitive for TR, being present in only 40% of the cases.
Equally prominent A and V waves can occur in atrial septal defect. The V wave in the higher-pressure LA is transmitted through the perforated septum into the RA , and from there to the jugular veins. This, however, is more commonly suggestive of simple right ventricular failure.
What are the most important abnormalities of jugular descents?
A prominent X descent is seen in patients with vigorous ventricular contraction (and thus requiring strong atrial contractions), like tamponade or right ventricular overload .
A diminished X descent (to the point of becoming even less prominent than the Y descent) is seen in atrial fibrillation or cardiomyopathy (wherein right ventricular contraction is not forceful enough to “pull down” the atrial floor).
A prominent Y descent is seen in patients with increased venous pressure, regardless of etiology. A very brisk Y descent is often referred to as Friedreich’s sign, from the German clinician and neurologist Nikolaus Friedreich, who described it in 1861. In combination with the prominent X descent it creates two steep troughs (the “W” sign). This occurs in one-third of constrictive pericarditis cases, where it is often associated with an early diastolic extra-sound (pericardial knock). Friedreich’s sign is not too sensitive for constrictive pericarditis, but quite specific, with the only differential diagnosis being restrictive cardiomyopathy.
A diminished – to-absent Y descent is seen in patients with increased CVP, like tamponade or TS. Note that the Y descent is usually minimal in normal subjects too; hence, an abnormally diminished Y descent has clinical significance only if the patient has high CVP.
How do you estimate the CVP?
By first positioning the patient , so that you can get a good view of the internal jugular vein and its oscillations. Although it is wise to start at 45 degrees, it doesn’t really matter which angle you use to raise the patient’s head, as long as it can adequately reveal the pulsations.
By identifying the highest point of jugular pulsation that is transmitted to the skin (i.e., the meniscus). This usually occurs during exhalation and coincides with the peak of “A” or “V” waves. It serves as a bedside pulsation manometer.
By finding the sternal angle of Louis (junction of the manubrium with the body of the sternum).
By measuring in centimeters the vertical height from sternal angle to the top of the jugular pulsation and then adding a correction factor, usually 5–10 cm, which is the distance from the center of the RA (the zero point) to the sternal angle.
In the past, 5 cm was thought to be the constant distance from the sternal angle to the center of the RA regardless of patient position, but recent evidence from cadavers and computerized tomography (CT) scans show that the 5 cm rule is only correct when the patient is supine. At angles between 30 and 90 degrees, 8–10 cm should be added (and even more if the patient has a larger than average chest wall, as in obesity).
How is “Louis” pronounced?
It depends. If you refer to the sternal angle , it should be “French-like,” since it was indeed the French surgeon Antoine Louís who first described it (Dr. Louis is much more famous for having coauthored with the internist Joseph-Ignace Guillotin the homonymous capital punishment device, which presumably chopped aristocrats’ heads just above their angle of Louis). If, on the other hand, you are referring to the maneuver that relies on the sternal angle for estimating CVP, then you should pronounce it “English-like,” since it was the British Physician Sir Thomas Lewis (student of MacKenzie) who first realized that the normal jugular vein distension is never more than 2–3 cm above the angle of Louis. A subsequent variant of this observation (i.e., that CVP can be estimated at the bedside by adding 5 cm to the vertical height of the internal jugular vein above Louis’) is what we call today the “method of Lewis.” Hence, it doesn’t really matter how you pronounce it, since either will be correct.
What is the normal central venous pressure?
As estimated by the method of Lewis, a normal CVP should be less than 7 cmH 2 O (some authors have suggested 8 cmH 2 O).
Is there any faster way to assess central venous pressure?
Yes. A nice, quick, and dirty method consists in having the patient sit up. Visible neck veins in the upright position indicate a CVP >10 cmH 2 O, and thus pathologic (this is because the clavicles lie at a vertical distance of about 2 cm above the sternal angle. Hence, if CVP is normal, veins should not be visible).
Are there alternative methods to assess the central venous pressure?
Yes, by using hand veins.
One is the Von Recklinghausen’s maneuver . This consists in asking the patient to lie supine, with the palm of one hand laid down over the thigh and the other laid down over the bed (thereby 5–10 cm below the first hand). Patients have high CVP if the veins of both hands are engorged; normal CVP if only the lower hand veins are engorged.
An alternative but similar maneuver consists in inspecting the veins of the back of the hand in a reclining patient as the arm is slowly, and passively, raised. The level at which the veins collapse can then be related to the angle of Louis and the CVP measured.
What is the significance of a low jugular venous pressure?
It reflects a low CVP, usually due to intravascular depletion from gastrointestinal (GI; vomiting, diarrhea), urinary (diuretics, uncontrolled diabetes mellitus or diabetes insipidus), or third space losses.
What is the significance of an elevated jugular venous pressure?
It usually reflects a high CVP. This can be due to either hypervolemia or problems with right-sided filling . Among the latter are (in a rostro-caudal fashion):
Superior vena cava obstruction (in this case, there will be no jugular venous pulse and the abdominojugular reflux test will be negative)
Obstruction to right ventricular inflow (such as TS and right atrial myxoma, but also constrictive pericarditis or tamponade, where neck veins distension is a sine qua non )
TR
Decreased right ventricular compliance with increased end-diastolic (and right atrial) pressure. Possible causes include right ventricular failure or infarction, PS, and pulmonary hypertension
Left ventricular failure . This is a common cause of pulmonary hypertension. In fact, in patients presenting with either angina or dyspnea, a high CVP argues in favor of left ventricular failure. Conversely, normal neck veins are unhelpful in separating normal from increased left-atrial pressure. Finally, CVP does not predict left-sided ejection fraction.
What is the significance of neck vein distension in assessing chronic heart failure?
In a prospective study of 52 patients undergoing in-hospital evaluation for heart transplantation, found that jugular venous distension, a positive abdominojugular test, pulmonary crackles, and a left-sided S3 all independently predicted higher right-sided pressures and worse cardiac performance. Jugular venous distension (whether at rest or inducible), had the best operating characteristics. Hence, the bedside cardiovascular examination of patients with chronic heart failure is quite useful for identifying increased right- and left-sided pressures. In this study, baseline or induced jugular venous distension were both sensitive and specific.
What is the prognostic significance of abnormal jugular venous pressure in heart failure?
Together with S3, it represents an ominous prognostic variable, independently associated with adverse outcomes, including progression of heart failure. This was shown by in a large study of 2569 patients with either symptomatic heart failure or a history of it. In multivariate analyses adjusted for other markers of heart failure severity, elevated jugular venous pressure was associated with a significant increase in the risk of death or hospitalization for heart failure. The presence of S3 was similarly (and independently) associated with increased risk.
How are the neck veins in tamponade?
Distended. This is a must , together with dyspnea/tachypnea, tachycardia, and clear lungs. Given this constellation of four symptoms/findings, the differential diagnosis is narrowed to five major entities: right ventricular infarction, massive pulmonary embolism, constrictive pericarditis, tension pneumothorax, and tamponade. The first four present with a positive Kussmaul’s sign in approximately half of the cases but never have a pulsus paradoxus >21 mmHg. Conversely, tamponade comes with no Kussmaul’s but does present with a pulsus of 20–50 mmHg.
What is the significance of leg swelling without increased central venous pressure?
It reflects either bilateral venous insufficiency or noncardiac edema (usually hepatic or renal). This is because any cardiac (or pulmonary) disease leading to right ventricular failure would manifest itself through an increase in CVP.
What is the significance of leg edema plus ascites in the absence of increased central venous pressure?
It also argues in favor of a hepatic or renal cause (cirrhotics do not usually have high CVP). Conversely, a high CVP in patients with ascites and edema argues in favor of an underlying cardiac etiology.
What is the prognostic value of an increased CVP in preop patients?
If untreated, it predicts postoperative pulmonary edema and/or infarction.
What are the jugular findings of right ventricular infarction?
The right ventricular filling pressure is increased (as a result of an ischemic and less compliant chamber). Since the ventricle also becomes unable to handle incoming venous flow, the mean jugular (and central) venous pressures will be similarly increased.
The jugular venous pulse exhibits a prominent “A” wave. It also shows “X” and “Y” descents so steep they can mimic constrictive pericarditis. Jugular venous pressure and waveform are both significantly affected by the concomitant magnitude of damage to the interventricular septum (IVS) and left ventricular free wall.
Positive Kussmaul's sign is as specific as a jugular venous pressure (JVP) increase, but less sensitive.
The abdominojugular reflux test can be positive.
Finally, an associated TR will give additional findings, such as giant V waves, pulsatile liver, and right earlobe bobbing.
What is hepatojugular reflux?
An old term for the abdominojugular reflux , a maneuver first described by the British William Pasteur in 1885 as a sign of TR, and then rekindled in 1898 by the French Edouard Rondot. Rondot is also the author of the unfortunate term “hepatojugular reflux,” and the first to suggest that a positive response is not pathognomonic of TR, but can also occur in other disorders.
What is it used for?
To unmask subclinical right ventricular failure (and silent TR), but also to confirm symptomatic left ventricular failure (see later). Hence, the “Pasteur-Rondot maneuver” is a very helpful tool, albeit one that is often used (and interpreted) incorrectly.
What is the physiology of the abdominojugular reflux?
It is a cardiac stress test for patients whose jugular venous pressure is either normal or only borderline elevated (hence, no need to use it in patients who already have jugular venous distention). Steady pressure onto the abdomen increases venous return by shifting blood from the splanchnic bed into the thorax and RA, like a sort of poor man’s fluid challenge . If the RV cannot handle this extra load, there will be sustained increase in JVP.
Does abdominal pressure cause any change in cardiac output?
No. Moreover, the changes in CVP that result from this maneuver cannot be attributed to variations in esophageal pressure or to a compression of the heart by elevation of the diaphragm. Instead, various observations are consistent with the overall hypothesis, that the increased right-sided filling pressure induced by abdominal compression does indeed reflect both the volume of blood in the abdominal veins and the ability of the ventricles to respond to an increased venous return . Hence, its value for detecting congestive heart failure.
Is compression of the liver necessary to elicit a response?
No. In fact, it can actually be detrimental in patients with passive hepatic congestion, since compression of the right upper quadrant might indeed elicit pain and a Valsalva’s response. As a result, pressure over the periumbilical area (or any other area of the abdomen) has become the method of choice. Hence the more current term of abdominojugular (reflux) test .
How do you perform an abdominojugular test?
By observing the jugular venous pressure before, during, and after abdominal compression:
Position the supine patient so that the jugular venous pulsations are properly monitored (an angle of 45 degrees will usually suffice). Then instruct him/her to relax and breathe normally through the open mouth. This will avoid the false-positive increase in jugular venous pressure caused by a Valsalva's maneuver inadvertently triggered by abdominal discomfort.
Apply your hand over the patient’s mid-abdomen (periumbilical area), with fingers widely spread and palm gently rested. Once the patient is well relaxed, apply gradual and progressive pressure for at least 10 seconds: firm, inward, cephalad, and soon reaching a steady level of 20–35 mmHg. This can be confirmed by placing an unrolled bladder of a standard adult blood pressure cuff between the examiner's hand and the patient's abdomen. The cuff should be partially inflated with six full-bulb compressions.
Note that the precision of the test may vary based on the force of abdominal compression. Different investigators have in fact suggested different forces: Ducas (1983) recommended 35 mmHg (equivalent to a weight of approximately 8 kg), while used 20 mmHg.
Throughout the maneuver (i.e., before, during or after compression), observe the column of blood in the internal and external jugular veins.
To avoid the risk of false positive neck vein distension from breath-holding or “bearing down,” consider a trial run. This can also be used to demonstrate in advance the force that will be applied onto the abdomen.
You might also look for a softening of the first heart sound during the application of abdominal pressure. This represents the auscultatory equivalent of a positive response.
When is the abdominojugular test considered positive?
When there is an increase in jugular venous pressure of more than 3 cm in height (which, according to Ducas [1983], is the upper limit of normal) that remains sustained through all 10 seconds of compression. Conversely, the test is considered negative when any of the following occurs:
No change in JVP.
Sustained change, but not large enough (i.e., ≤3 cm).
Enough change, but not sustained . In this case there may be an initial bulging of the external jugular vein at the beginning of abdominal compression (and also of the peaks and troughs of the internal jugular), and the JVP may even increase by more than 3 cm, but this is transient and returns to normal (or near normal) during the remainder of the compression.
A positive “reflux” is sometimes easier to observe as an abrupt fall in JVP when the pressure is being released . For the test to be positive, this drop should be at least 4 cm (Ewy et al.).
What is the significance of a positive abdominojugular reflux?
In patients presenting with dyspnea, the presence of abdominojugular reflux argues in favor of bi ventricular failure and suggests a pulmonary capillary wedge pressure >15 mmHg . This was confirmed at cardiac cath by Ewy et al. Patients with positive responses also had lower left ventricular ejection fraction and stroke volume, and higher mean pulmonary arterial and right atrial pressure, confirming biventricular failure. Conversely, a negative test in a patient with dyspnea would strongly argue against the presence of increased left atrial pressure.
In the absence of left ventricular failure, a positive test points to the right chambers , suggesting an inability of the atrium and ventricle to handle an increased venous return. This is particularly useful in subclinical cases, where a positive test has high sensitivity and specificity for predicting right atrial pressure >9 mmHg and right ventricular end-diastolic pressure >12 mmHg. Differential diagnosis includes impaired right ventricular preload (increased intravascular volume), decreased right ventricular compliance (right ventricular hypertrophy), decreased right ventricular systolic function (right ventricular infarction), or elevated right ventricular afterload (pulmonary hypertension).
TR, TS, restrictive cardiomyopathy, and constrictive pericarditis are also common causes of a positive test. The only condition not presenting with a positive abdominojugular reflux is cardiac tamponade.
Hence, the test is not specific to any one disorder, but instead a reflection of either a RV that cannot accommodate an increased return, or a LVLV that is dysfunctional.
Although recently shown to correlate with pulmonary capillary wedge pressure (and thus reflecting left ventricular function) the abdominojugular maneuver is traditionally used to either augment or unmask a murmur of tricuspid regurgitation. For this, it has a specificity of 100% and a sensitivity of 66%, whereas the Rivera-Carvallo maneuver (inspiratory increase in intensity of the tricuspid regurgitation murmur) has a specificity of 100% and a sensitivity of 80%. When combined, the two have a sensitivity of 93% and a specificity of 100%.
Shouldn’t the abdominal pressure be applied for at least one minute?
No. This was recommended in the past, but it is not the case anymore. In fact, used 10 seconds, and so did Ducas (1983), who also showed that CVP stabilized by that point and did not change over the subsequent 60 seconds. Sochowski, on the other hand, showed that 62 of 65 patients stabilized their pressure by 15 seconds.
What is Kussmaul’s sign?
It is the paradoxical increase in JVP that occurs during inspiration. Jugular venous pressure normally decreases during inspiration, because the inspiratory fall in intrathoracic pressure creates a “sucking effect” on venous return. Thus, Kussmaul's sign is a true physiologic paradox. This can be explained by the inability of the right heart to handle an increased venous return.
Which disease processes are associated with a positive Kussmaul’s sign?
Those that interfere with venous return and right ventricular filling. The original description was in a patient with constrictive pericarditis (Kussmaul’s sign is still seen in one-third of severe and advanced cases, where it is often associated with a positive abdominojugular reflux). Nowadays, however, the most common cause is severe heart failure , independent of etiology. Working backward from the heart to the superior vena cava, other causes of this sign include (1) cor pulmonale (acute or chronic); (2) constrictive pericarditis ; (3) restrictive cardiomyopathy (such as sarcoidosis, hemochromatosis, and amyloidosis); and (4) TS . Remember that Kussmaul’s sign is also present in 33%–100% of patients with right ventricular infarction . Thus, in a setting of acute myocardial infarction (MI), Kussmaul’s sign should not be interpreted as a sign of tamponade, but as a clue to concomitant right ventricular injury.
What can be said about the association of pulsus paradoxus and Kussmaul’s sign?
Both were first described by Kussmaul. And yet,
Kussmaul’s sign never occurs in “pure” tamponade (if it does, concomitant epimyocardial fibrosis is present); but it does occur in one-third of patients with “pure” constrictive pericarditis.
Pulsus paradoxus, on the other hand, does not occur in “pure,” totally dry constrictive pericarditis (if it does, a concomitant amount of pericardial effusion is present). Still, it does occur in almost all patients with tamponade.
A small pulsus paradoxus (>10 but <21 mmHg) occurs in two-thirds of patients with right ventricular infarction, while Kussmaul’s sign occurs in 33%–100% of right ventricular infarctions.
To avoid confusion, you should use a high cutoff for pulsus paradoxus (≥21 mmHg). This will limit the positivity of the test to only tamponade, a condition where Kussmaul’s sign doesn’t occur.
What is the association between Kussmaul’s sign and the abdominojugular reflux?
They share the same pathophysiology. Both, for example, occur in situations of diffuse peripheral venous constriction with secondary increase in CVP, such as severe heart failure and constrictive pericarditis. And both result from the inability of the heart to handle an increase in venous return, either because of pump failure or various mechanical impediments (constrictive pericarditis, TS, and cor pulmonale – acute or chronic).
How can you improve the clinical examination of the jugular veins?
Blind examination of patients with indwelling central venous catheters may provide valuable feedback. Pocket cards displaying the normal jugular pulse may also be helpful. Finally, evaluation of patients with tachycardia, irregular cardiac rhythms, rapid and deep respirations, or need for mechanical ventilation may provide very useful challenges and thus hone the skill.
What is the “venous hum”?
It is a functional murmur (see also Question 324) produced by turbulent flow in the internal jugular vein. It is continuous (albeit louder in diastole), and at times strong enough to be associated with a palpable thrill. It is best heard on the right side of the neck, just above the clavicle, but sometimes can become audible over the sternal/parasternal areas, both right and left. This may lead to misdiagnoses of carotid disease, PDA, or AR/AS.
What is the best way to elicit a venous hum?
Have the patient sit up, with head turned away from the side of auscultation (i.e., rotated 30–60 degrees leftward if listening over the right supraclavicular area). The hum vanishes upon reclining, and fades (or altogether disappears) with maneuvers that reduce venous return, such as pressing over the jugular vein distal to the hum (i.e., just above the stethoscope) or performing Valsalva.
What is the mechanism of the venous hum?
A mild compression of the internal jugular vein by the transverse process of the atlas, in subjects with strong cardiac output and increased venous flow. Hence, it is common in young adults or patients with high-output state.
How prevalent is this finding?
It can be heard in 31%–66% of normal children, and 25% of young adults. It is also encountered in 2.3%–27% of adult outpatients. It is especially common in situations of arteriovenous fistula, being present in 56%–88% of patients undergoing dialysis and 34% of those in- between sessions.
Can any other cardiac event be heard at the neck?
Besides transmitted systolic ejection murmurs, right-sided S3 and S4 gallops may also be heard over the neck. These usually occur in patients with right-ventricular failure and elevated right-sided pressure. Similarly, the murmur of TR may at times be heard over the neck.
In the first place, then, when the chest of a living animal is laid open and the capsule that immediately surrounds the heart is slit up or removed, the organ is seen now to move, now to be at rest; there is a time when it moves, and a time when it is motionless. –William Harvey. Exercitatio Anatomica De Motu Cordis et Sanguinis in Animalibus. London 1628
In the natural condition of the organ, the heart, examined between the cartilages of the fifth and sixth ribs, at the lower end of the sternum, communicates, by its motions, a sensation as if it corresponded evidently with a small point of the thoracic parietes, not larger than that occupied by the end of the stethoscope. –Rene TH Laennec. Treatise on Mediate Auscultation . Paris 1819
Inspection and palpation of precordial impulse and movements completes the preauscultatory evaluation of the cardiovascular system. In fact, percussion of the cardiac area (although still quite accurate when competently performed) has become more a memory of the past than a standard of today’s practice. Conversely, evaluation of the precordial impulse remains a very important part of the exam. It can provide valuable information on intracardiac size and function and may even be the first clue of ventricular enlargement, well before any EKG or x-ray change.
What is the history behind precordial palpation?
It goes back 3500 years, to the Ebers Papyrus of 1550 BC, which was the principal medical document of ancient Egypt. The papyrus covered 15 diseases of the abdomen, 29 of the eyes, and 18 of the skin. It also listed no fewer than 21 cough treatments. In a section titled “Beginning of the Secret of the Physicians: Knowledge of Heart’s Movement and Knowledge of the Heart,” palpation of the cardiac impulse was clearly described. Following that initial information, chest palpation remained part of the medical armamentarium up to medieval times. Only with William Harvey, though, did the motions of the heart become again a specific topic of scientific discussion. In his 1628 book De Motu Cordis , Harvey wrote: “[T]he heart is erected and rises upward to a point so that at this time it strikes against the breast and the pulse is felt externally.” Subsequently, important contributions to the art of precordial palpation came from R.T.H. Laennec, his teacher Jean-Nicolas Corvisart, and Sir James MacKenzie.
Which precordial impulse can be appreciated on physical exam?
The only one that can be normally seen (and palpated) in healthy subjects is the apical impulse , also known as the PMI – a rather confusing term for what is nothing more than a brisk movement of LV and septum against the chest wall. This is typically felt over the left fifth interspace, mid-clavicular line, and can be absent in >50% of the cases. In disease states, additional precordial or chest wall impulses may occur, reflecting mechanical events of ventricles, atria, and large vessels. Hence the need for a systematic search.
What precordial areas should be examined?
The same four used for cardiac auscultation. In addition to the apex per se (which reflects primarily the left ventricular impulse), you should palpate the two basilar areas (right and left parasternal interspaces, reflecting respectively aortic and pulmonary outflow tracts) and the left lower sternal area (reflecting right ventricular and atrial projection).
Can the right ventricle be appreciated in a normal person?
No. Right ventricular contraction produces neither visible nor palpable chest wall movements. Only occasionally (and usually in children or young people with narrow anteroposterior diameter) it may become possible to feel a gentle right ventricular activity. The same applies for the two basilar areas, which, in the absence of pathology, offer no palpable impulse.
How do you assess the precordial impulse(s)?
First inspect , since this may prove even more valuable than palpation. Shine a tangential light across the chest, which can help you visualize retractions and outward motions.
Then palpate the precordium, thoroughly assessing all major areas. With the patient in a supine position, localize impulses and evaluate their force . Then assess the impulse size by asking the patient to lie in left lateral decubitus. This might also help you elicit an otherwise undetectable apical impulse, as well as other impulses, such as a palpable S3 or S4. Use your palm to detect heaves or lifts (i.e., sustained precordial movements), the proximal metacarpals to identify thrills , and the finger pads to localize the various abnormalities.
How do you time precordial events?
By simultaneously palpating the carotid, or by concomitantly auscultating for S1 and S2.
Which characteristics of the apical impulse should be analyzed?
Location. Normally over the fifth left interspace mid-clavicular line, which usually (but not always) corresponds to the area just below the nipple. Volume loads to the LV (such as AR or MR) tend to displace the apical impulse downward and laterally. Conversely, pressure loads (such as AS or hypertension) tend to displace the impulse more upward and medially – at least initially. Still, a failing and decompensated ventricle , independent of its etiology, will typically present with a downward and lateral shift in PMI. Although not too sensitive, this finding is very specific for cardiomegaly, low ejection fraction, and high pulmonary capillary wedge pressure. Correlation of the PMI with anatomic landmarks (such as the left anterior axillary line) can be used to better characterize the displaced impulse.
Size. As measured in left lateral decubitus, the normal apical impulse has the size of a dime. Anything larger (nickel, quarter, or an old Eisenhower silver dollar) should be considered pathologic. A diameter ≥4 cm is quite specific for cardiomegaly.
Duration and timing. This is probably one of the most important characteristics. A normal apical duration is brief and never passes mid-systole. Thus, a sustained impulse (i.e., one that continues into S2 and beyond – often referred to as a “heave”) should be considered pathologic until proven otherwise, and is usually indicative of pressure load, volume load, or cardiomyopathy. For separating these conditions use the overall clinical picture:
In patients with no murmurs, consider cardiomyopathy and a low ejection fraction.
In patients with systolic ejection murmur, consider instead severe pressure load from AS.
In patients with a diastolic murmur of AR (which causes a volume load), consider the disease to be mild if the apical impulse is nonsustained.
Amplitude. This is not the length of the impulse, but its force . A hyperdynamic impulse (often referred to as a “thrust”) that is forceful enough to lift the examiner’s finger can be encountered in situations of volume overload and increased output (such as AR and VSD), but may also be felt in normal subjects with very thin chests. Similarly, a hypodynamic impulse can be due to simple obesity, but also to congestive cardiomyopathy. In addition to being hypodynamic, the precordial impulse of these patients is large, somewhat sustained, and displaced downward/laterally.
Contour. A normal apical impulse is single. Double or triple impulses are clearly pathologic.
Hence, a normal apical impulse consists of a single, dime-sized, brief (barely beyond S1), early-systolic, and nonsustained impulse, localized over the fifth interspace mid-clavicular line.
What are the most common abnormal apical movements?
A double systolic apical impulse can be seen in patients with HOCM. This may even present as a triple apical impulse (triple ripple) , with one impulse being presystolic (and corresponding to a strong atrial contraction) and the other two being instead systolic (corresponding to the initial ventricular contraction, and a delayed one necessary to overcome the outflow obstruction by the septum). A thrill is often present. Note that a double systolic impulse may also be encountered in patients with left ventricular dyskinesia due to either ischemia or aneurysm of the wall (see later). In fact, one-third of patients with ventricular aneurysm present with abnormal precordial findings.
A presystolic apical impulse represents the palpable equivalent of a fourth heart sound. It is an important finding because it provides a clue to reduced left ventricular compliance, as in the case of either ischemia or pressure load (such as AS or hypertension). In AS, a palpable S4 usually correlates with a significant gradient between the LV and aorta. It is often associated with a palpable thrill over the second right interspace.
An early-diastolic apical impulse represents the palpable equivalent of S3. It is more difficult to palpate than the presystolic impulse, and usually indicates a dilated LVLV. This can be the result of either volume load (i.e., MR) and/or left ventricular failure. In the latter, there may be an associated sustained apical impulse.
What is the significance of a precordial movement in the left lower sternal area?
A sustained movement that begins immediately after S1 usually reflects a pressure (or volume) load to the RV.
A sustained movement that begins late in systole reflects instead severe MR with dilatation of the LA.
A hyperdynamic movement can be a sign of atrial septal defect but is much more common in situations of high output, thin chests, or sternal malformations.
What is a retracting impulse?
One that moves inward in systole and outward in diastole. This is the opposite of the normal apical impulse, which has instead an early-systolic outward movement followed by a mid- to late-systolic retraction. Timing of the events by either auscultation or carotid palpation is therefore key to separating the two.
What are the causes of a retracting impulse?
Constrictive pericarditis (where up to 90% of patients may present with the finding) and severe TR . In the latter condition, patients usually exhibit a peculiar rocking motion of the chest in systole, with a retraction at the apex (now occupied by the enlarged RV) and a bulge over the epigastric and tricuspid area (now occupied by the enlarged RA).
What are the precordial findings of tricuspid regurgitation?
In addition to those listed above, adult patients with TR may have precordial evidence of pulmonary hypertension and right ventricular hypertrophy, such as a palpable P2 over the pulmonic area and a right ventricular parasternal impulse. At times the right ventricular impulse may even be palpable over the epigastric or subxiphoid area. A pulsatile liver in synchrony with each systole is also appreciated.
What precordial evidence suggests mitral stenosis?
Palpability of both first and second sound. S1 becomes palpable because of the sharp loudness characteristic of this disease, and S2 (primarily its P2 component) because of the concomitant pulmonary hypertension. Thus, the absence of a palpable P2 argues strongly against the presence of pulmonary hypertension. Note that the opening snap (OS) can become palpable too, and an apical diastolic thrill may at times be felt in left lateral decubitus. Since the apical impulse of MS is usually hypodynamic (as a result of impaired left ventricular filling), the presence of a hyperkinetic impulse argues strongly against the purity of the disease and suggests instead the possibility of concomitant aortic or MR.
What precordial evidence suggests angina? Previous infarction?
In angina, the apical impulse is usually normal, but there may be a transiently palpable S4 (presystolic impulse), or a dyskinetic apical area. Conversely, in case of a preexisting infarction, the apical impulse may at times be just superior and medial to the normal apical location. Such an ectopic impulse usually suggests a left ventricular aneurysm or dyskinesia.
What are the precordial findings of a dilated aorta or pulmonary artery?
A dilated pulmonary artery (as in patients with pulmonary hypertension) may often be felt at the upper left parasternal area. Conversely, a dilated aorta (as, for example, in patients with aortic aneurysm) may often be felt at the right parasternal area.
What is a thrill?
A palpable vibration associated with an audible murmur (see also Question 306). A thrill automatically qualifies the murmur as being ≥4/6 in intensity, and thus pathologic.
What is the value of precordial percussion?
When properly carried out, precordial percussion retains some clinical value. It can even outline the cardiac area with errors of only 1 cm. But given the difficulty in mastering this skill (and today’s ubiquity of sophisticated imaging), cardiac percussion has become one of those areas of physical examination that have clearly yielded to technology-based diagnosis.
...the gallop stroke is diastolic and is due to the beginning of sudden tension in the ventricular wall as a result of blood flowing into the cavity. It is more pronounced if the wall is not distensible and the failure of distensibility may depend on either a sclerotic thickening of the heart wall (hypertrophy) or to a decrease in muscular tonicity…the sound is dull, much more so than the normal sound. It affects the tactile sensation, more perhaps than the auditory sense. If one attempts to hear it with a flexible stethoscope, it lacks only a little, almost always, of disappearing completely. –Potain PC. Note sur les dedoublements normaux des bruits du coeur. Bull. Mem. Soc. Med. Hop . Paris 3:138, 1866
Conventional teaching has long recognized auscultation of the heart as the centerpiece of physical diagnosis. Indeed, proper identification of the various findings can still allow the prompt recognition of many and important cardiac diseases. This is particularly true in the area of sounds and extra-sounds, a field that has fascinated physicians since the introduction of stethoscopy. A plethora of gallops , clicks , snaps , knocks , and plops has since entered our everyday vocabulary. Accordingly, we have granted all but a few of these sounds a “high pass” in our conventional teaching test. The few that failed did so not because of the paucity of information they deliver, but because of the rarity of the disease processes they represent.
Why is cardiac auscultation so difficult?
Cardiac sounds are often at the threshold of audibility . The human ear can only perceive sounds between 20 and 20,000 Hz: it can neither reach beyond (as dolphins and whales do) nor, as elephants often do, go below it. In this range it has a preferential bandwidth of 1000–5000 Hz, corresponding to that of the human voice. Yet, most cardiac sounds are <500 Hz. In fact, many are so low-pitched as to be almost inaudible (S3 or S4 can be <100 Hz).
Cardiac sounds are crammed in a very little time interval . At a rate of 70/min, a cycle of 0.8 seconds can easily harbor four to five sounds, many barely detectable.
Hospital rooms are noisy.
Patient’s hair and respiration create misleading artifacts.
The obesity epidemic has given many patients a much larger chest muffler.
Pathology has shifted from rheumatic to coronary , thus reducing the pool of teaching patients, as have the development of catheter-based valve repair and replacement.
Our ever-increasing fascination with the inanimate and the machine (and the sophistication of technology), compounded by:
Medico-legal issues (which have made imaging a self-protecting necessity).
Patients’ demands and expectations.
Reduced emphasis on bedside skills during training, and availability of teachers.
Time constraints (which make resorting to technology an ever-increasing need).
How can you make auscultation a little easier?
Take your time.
Be thorough.
Control noise in the room.
Separate systole from diastole (easily done in normal rates by recognizing the acoustic differences of S1 and S2 plus the long and short intervals; in faster hearts it may require simultaneous assessment of arterial pulse or precordial impulse).
“Inch” (move your stethoscope inch-by-inch, from auscultatory area to auscultatory area).
Know how to use your tool: (1) bell versus diaphragm; (2) patient’s position (supine, seated, and left lateral decubitus); (3) changes with respiration; and (4) dynamic bedside maneuvers (straight leg raising, squatting-standing, Valsalva, hand-gripping, exercise).
When challenged by feeble and crammed signals, focus on one sound at a time.
Develop pattern recognition . This means practice, practice, practice. In fact, you may need to hear an individual acoustic event as many as 500 times before you can master it.
What are the normal heart sounds?
They are the first (S1) and second (S2) heart sound.
What are the hemodynamic and acoustic characteristics of the cardiac cycle?
The cardiac cycle starts with contraction of the atria (S4), which completes the ventricular diastolic filling and results in electrical activation (and contraction) of the ventricles themselves. This, in turn, closes the atrioventricular valves (S1) and starts the isometric phase of systole. Opening of semilunar valves (which may cause ejection sounds (ES)/clicks) signals the beginning of isotonic contraction, with expulsion of ventricular content into the great vessels. Closure of the semilunar valves (S2), and subsequent reopening of the atrioventricular valves, restarts diastole and the cycle begins anew. Note that diastole is always longer than systole, unless heart rate exceeds 120/min. Knowledge of the interrelationship between intracardiac pressure and valve motions is crucial for understanding heart sounds and murmurs ( Fig. 10.10 ).
What are the cardiac areas?
They are areas of chest wall projection that correspond to the four cardiac valves (see also Questions 301–538). In a clockwise fashion:
Aortic area : second right parasternal interspace
Pulmonic area : second left parasternal interspace
Erb’s point : third left parasternal interspace (area of left ventricular outflow)
Mitral area : apex (fifth interspace left mid-clavicular line)
Tricuspid area : fourth to fifth left parasternal space, at times extending into epigastrium/subxiphoid.
Where is S1 best heard?
At the apex (for its mitral component) and over the subxiphoid/epigastrium (for the tricuspid).
How is S1 generated?
By the vibration of valves, ventricles, and blood that coincides with:
Closure of the atrioventricular (A-V) valves.
Opening of the semilunar valves . This in turn leads to two separate sounds caused by: (1) opening of the semilunar valves per se (2) and blood being ejected into the large vessels.
In the absence of pathology, only A-V closure is responsible for S1. Semilunar opening is silent.
Which characteristics of S1 are clinically valuable and should therefore be identified?
The most valuable is intensity (and variations thereof). The next most valuable is splitting .
How do you tell S1 from S2?
The area of greatest intensity is different (apical for S1 and basilar for S2) and so is the timing (beginning of the short interval for S1 versus beginning of the long interval for S2). Finally, S1 is lower-pitched and longer than S2, but still high-pitched enough to require the diaphragm.
If S2 is louder than S1 at the apex, it suggests two possible explanations: (1) S2 is indeed louder than S1 (and this is usually the result of either pulmonary or systemic hypertension); or (2) S2 is normal, while S1 is softer .
Which factors are responsible for the loudness of S1?
Besides shape and thickness of the chest wall, three major factors play a role:
The rate of rise in left ventricular pressure.
This is a function of ventricular contractility , with stronger contractions causing faster rise in left ventricular pressure, and thus brisker and more forceful A-V closure. Hence, a loud S1 is typical of the hyperkinetic heart syndrome , while a soft (muffled) S1 is instead common in congestive heart failure, whose failing ventricles can only generate a slow rise in systolic pressure.
The separation between atrioventricular leaflets at onset of ventricular systole.
The closer the leaflets, the softer S1; conversely, the wider apart the leaflets, the louder S1. This mechanism feeds into two other important variables:
The duration of the P-R interval. A short P-R forces the ventricles to contract while the leaflets are still widely separated, so that their closure occurs on a steeper part of the left ventricular pressure curve, causing a more forceful, and louder closure. Conversely, a long P-R provides enough time for the leaflets to come close to each other, thus softening S1.
The atrioventricular pressure gradient. A large A-V pressure gradient keeps the leaflets widely separated until ventricular pressure rises high enough to shut them closed. Since the closure takes place on a steeper part of the left ventricular pressure curve, it will be forceful and loud. Hence, the longer the ventricle has to contract in order to close the A-V valve, the louder S1 will be.
The thickness of the atrioventricular leaflets.
The thicker the leaflets, the louder the S1 (banging hardbacks against each other generates more noise than banging paperbacks). Conversely a soft S1 may indicate leaflets that are too rigid. Hence, a thickened and stenotic mitral valve (MV) may generate a booming S1 early on in the disease, but a softer (or absent) S1 when the leaflets get eventually fixed and calcified .
What factors can affect the rate of rise of ventricular pressure?
The most important is contractility . An increase in left ventricular contractility (because of exogenous or endogenous inotropics) will intensify the mitral component of S1, while a decrease in contractility (because of congestive heart failure), will soften it.
Which diseases present with a variable intensity of S1?
Heart blocks , such as second degree (i.e., Mobitz I or Wenckebach) and third degree .
In second-degree A-V block there is progressive softening of S1 , while S2 remains instead constant. This is due to the increasing P-R lengthening, until a beat is eventually dropped. It is so typical of Mobitz I that Wenckebach could describe it even before EKG availability.
In third-degree A-V block (typical of Morgagni-Adams-Stokes) the change in S1 intensity is instead random and chaotic . This is because atrium and ventricle march to the beat of a different drummer, with rates that are totally independent: when ventricular contraction catches the A-V valves wide apart, S1 booms; when it catches them partially closed, S1 softens. The varying S1 intensity is so typically random to allow the recognition of complete block just on the basis of auscultation ( Table 10.1 ).
Loud | Variable | Soft |
---|---|---|
Short P-R interval (<160 msec) | Atrial fibrillation | Long P-R interval (>200 msec) |
Increased contractility (hyperkinetic states) | Atrioventricular block (Wenckebach and third degree) | Decreased contractility (left ventricular dysfunction) |
Thickening of mitral (or tricuspid) leaflets | Ventricular tachycardia (due to atrioventricular dissociation) | Left bundle branch block |
Increased atrioventricular pressure gradient (stenosis of the A-V valves) | Pulsus alternans |
|
What was the role of Morgagni in describing complete heart block?
He had actually reported it almost 100 years before Adams and Stokes, in a merchant from Padua whom he had evaluated:
…when visiting by way of consultation, I found with such a rarity of the pulse that within the 60th part of an hour the pulsations were only 22. And this rareness, which was perpetual, was perceived to be even more considerable, as often as many as two (epileptic) attacks were at hand. So that the physicians were never deceived from the increase of the rareness they foretold a paroxysm to be coming on.
Who was Mobitz?
Woldemar Mobitz was a German cardiologist who, during the first half of the 20th century, linked his name to various arrhythmias and to the eponymous second-degree A-V block.
What is the intensity of S1 in atrial fibrillation?
Variable. This is due to the irregular ventricular rate, which may catch the A-V valves widely open, partially closed, or in between.
How can you separate the variable S1 of atrial fibrillation from that of complete A-V block?
In atrial fibrillation the rhythm is irregularly irregular, while in third-degree A-V block it is a regular bradycardia (due to either nodal or ventricular “escape”).
How is S1 in mitral stenosis (MS)?
Booming (in 90% of the patients). A loud S1 should always alert the clinician to the possibility of MS, and thus prompt a search for its associated diastolic rumble. Conversely, a soft S1 argues against the presence of uncomplicated MS (i.e., one where the valve is still relatively pliable). The loud S1 is usually the result of:
Thickening of the mitral leaflets . In the late stages of MS, however, leaflets can become stiff and poorly mobile. Which, in turn, softens S1 and eventually eliminates it.
High atrioventricular pressure gradient . This is produced by the stenotic valve, and keeps the A-V leaflets maximally separated at onset of ventricular contraction.
What other conditions can be associated with a loud S1?
Beside MS and the hyperkinetic heart syndrome , a loud S1 is often encountered in:
Hypertrophic ventricles.
Holosystolic mitral valve prolapse (MVP) with regurgitation (where the prolapse delays the tension of the redundant mitral leaflet, thus allowing it to occur at peak of ventricular contraction, which makes it louder). A similar mechanism takes place in:
A left-atrial myxoma . Here it is the tumor that delays the closure of the MV, thus allowing it to occur at peak of ventricular contraction and making it therefore louder. As a result, 80% of patients with this condition will have a loud S1.
Short P-R interval , as in the preexcitation syndromes of Wolff-Parkinson-White and Lown-Ganong-Levine.
Which conditions can be associated with a soft S1?
Other than calcific MS , a soft S1 is usually heard in early closure of the MV, as in AR or prolonged P-R interval . Alternatively, a soft or absent S1 can result from inadequate left ventricular contraction, because of congestive heart failure , MI , or left bundle branch block (where the LVLV not only contracts ineffectively but also late, with M1 following T1; “M” for mitral and “T” for tricuspid).
Which atrioventricular valve closes first?
The mitral, followed by the tricuspid (high pressure beds always close earlier). Since mitral closure is much louder than tricuspid, the first component of S1 is usually referred to as M1, and predominates in the formation of the sound.
Which semilunar valve opens first?
The pulmonic, followed by the aortic (low-pressure beds always open earlier). As for the intensity, the aortic ES is usually louder than the pulmonic, but still not enough to become audible in the normal patient.
What is the sequence of closure and opening of the various valves at time of S1?
In sequence (see Fig. 10.10 ): (1) mitral closure (M1); (2) tricuspid closure (T1); (3) pulmonic opening; (4) aortic opening. The first two events are the only real contributors to S1, while the last two may become audible (as ejection clicks/sounds) in case of disease.
What is the significance of a narrowly split S1?
It reflects the audible separation of M1 and T1, a normal phenomenon that may at times be detected by listening over the lower left sternal border/epigastric area (where the tricuspid component is louder, and thus easier to separate from its mitral counterpart).
Is the tricuspid component of S1 (T1) audible at the apex?
No. It is only audible over the lower left sternal border. T1, however, may become audible at the apex in case of (1) thickening of the tricuspid valve leaflets (i.e., early TS); or (2) right ventricular pressure overload (such as pulmonary hypertension or atrial septal defect).
What is the significance of a split S1 at the base?
It does not indicate the audible separation of M1 and T1, but instead the presence of an early ES . This can be of either pulmonic or aortic origin.
What is the significance of a widely split S1?
It usually indicates a delayed closure of the tricuspid valve , most commonly because of a right bundle branch block. Note that a bundle branch block is also a cause of split S2.
What is the significance of an apparently split S1?
It may represent a normal S1 that is either preceded by an S4, or followed by an early systolic (ejection) sound. This is an important differential diagnosis to keep in mind.
How can one separate a truly split S1 from a “pseudosplit” S1?
A truly split S1 is usually heard over the lower left sternal border . Conversely, an S4 of left atrial origin is only audible at the apex , while an early systolic click is usually louder over the base . To separate S4 from an early-systolic click, keep in mind that S4 is lower-pitched, best heard with the bell, softer, located before the true S1, and only heard at the apex . An early-ejection click is instead higher-pitched, best heard with the diaphragm, louder, located after the true S1, and best heard at the base (although it can also radiate down to the apex).
Where is S2 best heard?
At the base. More specifically, over the second/third left parasternal interspace for its pulmonic component, and over the second or third right parasternal interspace for the aortic one. Because of its medium-to-high frequency, S2 requires the diaphragm of the stethoscope.
How is S2 generated?
By sudden deceleration of blood following the closure of aortic (A2) and pulmonic (P2) valves.
Which of the two semilunar valve closes earlier?
The aortic, due to systemic pressure being normally higher than pulmonic pressure.
How clinically useful is S2?
Very useful. In fact, it has been suggested that careful evaluation of S2 ranks with electrocardiography and radiology as one of the most valuable routine screening tests for heart disease (Leatham used to call it “the key to auscultation of the heart”).
Which S2 characteristics are more valuable clinically?
Sound intensity and sound splitting . Of these, splitting (and variations thereof) is the most informative. This is in contrast to S1, where intensity (and variations) were the most important.
What is a physiologic splitting of S2?
It is the inspiratory widening of the normal interval between A2 and P2. This is triggered by: (1) increased venous return to the RV (due to negative intrathoracic pressure; this delays P2); (2) decreased venous return to the LV (due to pooling of blood in the lungs; this accelerates A2). Although there is always a small interval between A2 and P2, only in inspiration is this interval wide enough to be audible by all (i.e., 30–40 msec).
What is the effect of exhalation on semilunar valve closure?
The opposite. It delays A2 (more venous return to the left side) and accelerates P2 (less venous return to the right side), so that the interval between the two components becomes too narrow to be appreciated by the human ear.
How common is a physiologic splitting of S2? ( Fig. 10.11 )
Not very common. In a study of 196 normal adults examined in the supine position, only 52.1% had an audible inspiratory split of S2. Physiologic splitting was much more common in younger individuals (60% of those between age 21 to 30, and 34% of those older than 50). Indeed, after age 50, S2 appeared single in more than 60% of subjects, as opposed to 36% for all ages. Hence, in older patients, a single S2 should not be considered evidence for a delayed A2 (and therefore it should not suggest an underlying AS or a left bundle branch block).
A physiologic S2 split occurs in 60% of subjects below 30 and 30% of those above 60.
How important is patient’s position on S2 splitting? ( Fig. 10.12 )
Very important. A supine position increases venous return, lengthens right ventricular systole, and thus widens the physiologic splitting of S2. Conversely a sitting (or standing) position decreases venous return, shortens right ventricular systole, and narrows the physiologic split. This is especially important when analyzing an expiratory splitting of S2. In a study by Adolph and Fowler (1972), 22/200 (11%) normal subjects had an expiratory split while supine, but only 1/22 maintained it upon sitting or standing. Hence, an expiratory splitting of S2 is one that is present both in a recumbent and upright position.
What is the significance of a true expiratory splitting of S2?
It indicates one of three conditions: (1) a wide (physiologic) splitting of S2; (2) a fixed splitting of S2; (3) a paradoxical splitting of S2. With the exception of the wide (physiologic) splitting (that may be normal in the young, but abnormal above age 50), both the fixed and the paradoxical splitting reflect cardiovascular pathology.
What is a wide (physiologic) splitting of S2? What is it due to?
It is a splitting so wide as to appear present throughout respiration , albeit still more marked in inspiration . It occurs in: (1) delayed closure of the pulmonic valve (delayed P2); (2) premature closure of the AV (premature A2); or (3) a combination thereof.
What are the causes of delayed closure of the pulmonic valve?
The classic one is a complete right bundle branch block, which delays both the depolarization of the RV and the closure of the pulmonic valve, making the physiologic splitting of S2 audible both in inspiration and expiration. Loss of pulmonary recoil (because of idiopathic dilatation ) or severe impedance to right ventricular emptying can also delay the pulmonic closure. The latter can occur in: (1) PS (where the interval between A2 and P2 correlates with the severity of stenosis); (2) massive pulmonary embolism; (3) cor pulmonale with right ventricular failure; and (4) atrial septal defect. In pulmonary embolism an audible expiratory splitting of S2 (with a loud and palpable P2) has both diagnostic and prognostic significance, reflecting acute cor pulmonale, and usually resolves in hours or days.
What are the causes of premature closure of the aortic valve?
The most common is a rapid emptying of the LV, as in severe MR or VSD. A premature closure of the AV can also occur in severe congestive heart failure, usually because of a reduction in left ventricular stroke volume. Finally, a widely split S2 may also occur in tamponade, where expansion of the two ventricles is limited and fixed. During inspiration the RV fills relatively more, pushing the septum leftward and thus further impairing left ventricular filling. This reduces left ventricular stroke volume, accelerates A2, and makes S2 widely split. The opposite occurs in exhalation.

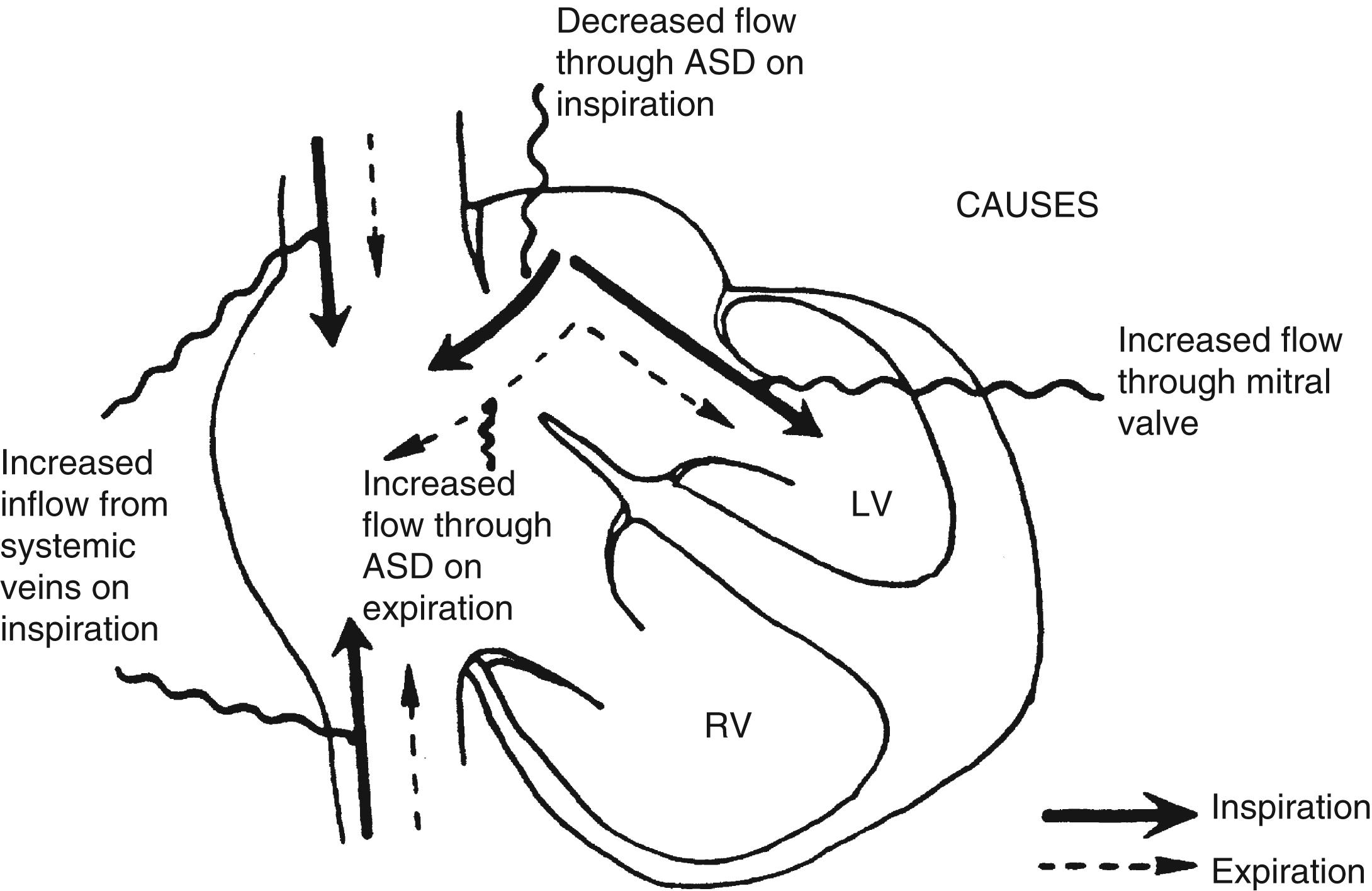

What is a fixed splitting of S2? What does it mean? ( Fig. 10.13 )
It is an S2 that remains audibly split throughout respiration , both in the supine and upright position, and with a consistent interval between its two components . Although encountered in severe ventricular failure, a fixed splitting of S2 should suggest a septal defect (most often atrial but occasionally ventricular ), especially if associated with pulmonary hypertension. The defect (and its shunt) eliminate the respiratory changes in right and left ventricular stroke volume, thus fixing the S2 splitting (more rarely, a fixed S2 split will occur in severe impedance to right ventricular emptying, such as that of pulmonary stenosis [PS], pulmonary hypertension, or massive pulmonary embolism – with or without bundle branch block). These patients cannot cope with the increased venous return of inspiration by increasing right ventricular stroke volume. Hence, they maintain their S2 widely and persistently split throughout respiration.
What is the differential diagnosis of a fixed splitting of S2?
A late-systolic click (which precedes S2), and an early-diastolic extra sound (which follows S2).
The late-systolic click from MVP varies with bedside maneuvers and is loudest at the apex (conversely the split S2 is unchanged with maneuvers and only heard at the base).
The two most common early diastolic extra sounds are the S3 and the OS of mitral (or tricuspid) stenosis (to see how to differentiate an OS from a widely split S2 or an S3, see later). The OS is primarily apical, while the split S2 is basilar. Still, OS can be loud enough to transmit to the base, thus producing a triple lilt in inspiration (OS + split S2, with a loud P2 because of pulmonary hypertension). Note that the interval between S2 and OS is wider than that between the two components of S2. Finally, an OS is usually (but not necessarily) associated with a diastolic rumble.
What about tumor plop and pericardial knock?
They are two other (albeit less common) early diastolic sounds that should be included in the differential diagnosis of a fixed splitting of S2. The tumor plop is the opening sound of an atrial myxoma. It typically varies with the patient’s position and from cycle to cycle. The pericardial knock is instead a loud apical sound that is widely separated from S2 (and thus easily differentiated from a fixed splitting of S2, which is more basilar and closely separated). The knock comes with signs of constrictive pericarditis, like distended neck veins, hepatomegaly, and leg edema in the absence of crackles.
What is a paradoxical splitting of S2? What does it mean?
A paradoxical (or reversed) splitting indicates a second sound that becomes audibly split only in exhalation , while remaining single in inspiration . It means pathology until proven otherwise. The behavior (opposite to the physiologic inspiratory split of normal subjects, hence the paradox) usually results from a delay in aortic closure, so that A2 now follows P2. Since the respiratory changes of the two valves remain the same, inspiration will narrow their closure, while exhalation will widen it. Hence, the expiratory (or paradoxical) splitting.
What are the causes of paradoxical S2 splitting?
Delayed aortic closure is indeed the most common reason, usually due to a complete left bundle branch block (where reversed S2 splitting can occur in 84% of the cases). Other causes include increased impedance to left ventricular emptying (hypertension, AS, coarctation) or left ventricular dysfunction. The latter can occur in acute ischemia and various cardiomyopathies.
Early pulmonic closure is a much less common cause of paradoxical splitting, usually due to decreased right ventricular filling – from either TR or right atrial myxoma.
Is paradoxical S2 splitting a sign of myocardial ischemia?
Yes. While paradoxical splitting of S2 rarely occurs with stable coronary artery disease (CAD), it may often be heard during acute decompensation, such as after exercise or during angina. It may also be heard during the first 3 days following an acute MI (in as many as 15% of patients). Finally, it is commonly heard in elderly hypertensive patients with underlying CAD and evidence of heart failure.
What is the significance of a “single splitting” of S2?
It refers either to a single S2 or to an S2 so narrowly split in inspiration as to be inaudible in its two separate components. A single S2 is usually due to:
Aging : the audible splitting of S2 decreases in prevalence with age, to the point of becoming absent in most subjects above the age of 60. This is probably due to the muffling of P2 by the “physiologic” senile emphysema.
Emphysema : the hyperinflated lungs will muffle P2 during inspiration, thus making A2 the only audible sound. Because this phenomenon is less pronounced in exhalation, these patients may be misdiagnosed as having paradoxical splitting of S2 (while in fact, they have a pseudoparadoxical splitting that becomes evident only in expiration).
Reversed (or paradoxical) splitting: in this case the split will indeed occur only in exhalation.
Pulmonary hypertension : increased impedance on right ventricular emptying makes the ventricle unable to cope with the increased venous return of inspiration. Hence, there will be no inspiratory lengthening of right ventricular systole, and no inspiratory splitting of S2.
Semilunar valvular disease : stiffening and reduced mobility of semilunar valves may also lead to disappearance of either A2 or P2, thus making S2 “single.”
Which is louder: A2 or P2?
A2. This is consistent throughout the precordium. In fact, there is only one site where P2 is loud enough to become audible: the pulmonic area (second or third left parasternal interspace). This is also the only site where physiologic splitting of S2 can be heard.
How can you differentiate the two components of S2?
By remembering that only A2 is heard at the apex (in the absence of pulmonary hypertension, P2 is too soft to be transmitted there). Hence, to tell A2 from P2, move the stethoscope from the base to the apex, and then pay attention to which component of S2 gets softer: if it is the first component, then P2 precedes A2; if it is the second component, then A2 precedes P2. This maneuver may help differentiating a right bundle branch block (where A2 precedes P2) from a left bundle branch block (where P2 precedes A2).
What is the significance of S2 physiologically split at the apex?
It suggests pulmonary hypertension, with P2 so loud the sound transmits downward. This is common in primary pulmonary hypertension and atrial septal defect, but less common in other conditions.
What is the significance of a loud P2 or A2?
It suggests increased pressure in the pulmonic or systemic circulation. In fact, S2 louder than S1 at the apex also suggests pulmonary or systemic hypertension. Note that high-output states may also be associated with a loud S2, very much like they were associated with a loud S1 . These include AR and atrial or VSDs.
What is the significance of S2 softer than S1 at the base?
It depends on which basilar area is involved (and thus on which of the S2 components is softer). If S2 is softer than S1 over the aortic area, then A2 is diminished, suggesting fibrosis or calcification of the AV, (i.e., AS). Conversely, if S2 is softer than S1 over the pulmonic area, then P2 is decreased, and the most likely explanation is PS.
What is a “tambour” S2?
It is a loud and ringing S2, very rich in overtones. Tambour (“drum” in French) conveys the peculiar character of this sound, which usually indicates a dilatation of the aortic root. In patients with an AR murmur, it suggests Marfan’s syndrome, syphilis (Potain’s sign), or a dissecting aneurysm of the ascending aorta (Harvey’s sign).
What makes P2 louder than A2?
Pulmonary hypertension. Alternatively, AS with reduced valve mobility can make A2 softer than P2. Note that, despite conventional teaching, a loud P2 has not been validated as a clue to pulmonary hypertension. This is contrast to a palpable P2 over the pulmonic area, which is indeed a strong predictor of pulmonary systolic pressure ≥50 mmHg.
What are the other precordial findings of pulmonary hypertension?
A right-sided S4, a pulmonic ES, murmurs of tricuspid and/or pulmonic regurgitation, an audible splitting of S2 at the apex, and, of course, a palpable P2.
What can soften A2 or P2?
Besides emphysema, the most common cause is reduced pulmonic or systemic pressure. Soft A2 or P2 can also be due to reduced mobility of the semilunar valves, from either calcification or sclerosis, an important marker of severe stenosis.
What are extra heart sounds?
They are pathologic sounds that may occur in addition to the normal sounds (S1 and S2). Based on location within the cardiac cycle, extra sounds are classified into systolic (usually referred to as Clicks: early-, mid- and late-systolic, or diastolic (usually referred to as snaps, knocks, or plops ; Table 10.2 ). For each of them we shall review acoustic characteristics, pathogenesis, and clinical significance.
Systolic | Diastolic | ||
---|---|---|---|
TIMING | SOUND | TIMING | NAME |
Early systolic | Ejection sounds (aortic or pulmonary) Click (mitral or tricuspid) Aortic prosthetic valve sounds | Early diastolic |
|
Mid-to-late systolic | Click (mitral or tricuspid) | Mid-diastolic |
|
Late diastolic (presystolic) |
|
Where are these extra sounds best heard?
It depends. Snaps, knocks, and “plops” are best heard at the apex, while clicks (especially ejection clicks) can be heard both at the base and the apex.
Where are S3 and S4 best heard?
At the apex, but barely, since their low frequency (20–50 Hz) puts them at the threshold of audibility. Hence, use the bell and remember to palpate ; in thin patients they may be more palpable than audible (especially the S4).
Which bedside maneuvers can intensify S3 and S4? ( Fig. 10.14 )
Maneuvers that increase venous return, intracardiac blood volume , and flow across the atrioventricular valves . These include : (1) leg raising; (2) mild exercise (like assuming the left lateral decubitus; even coughing a few times may unmask a gallop); (3) abdominal compression; (4) the release phase of Valsalva; and (5) respiration. Held- exhalation tends to intensify the left -sided S3 and S4 (with S4 increasing in early -exhalation and S3 in end -exhalation), while held- inspiration tends to intensify the right -sided S3 and S4. Conversely, maneuvers that decrease venous return, intracardiac blood volume, and transvalvular flow (such as sitting, standing, and the strain phase of Valsalva) will soften a pathologic S3 or S4, and totally eliminate a physiologic S3. All these maneuvers increase (or decrease) the intensity of both S4 and S3, but they will do so much more dramatically with S3.
How many diastolic extra sounds can be encountered?
Five. Of these, two are common (S4 and S3); one less common (the OS of MS or TS); and two very uncommon (the opening “plop” of atrioventricular myxoma and the pericardial knock). Only the S4 occurs late in diastole (or presystole ); all others are early diastolic. Two are low-pitched and soft (S3 and S4); two high-pitched and loud (OS and pericardial knock); and one medium-pitched and of varying intensity (tumor “plop”).
What is an S3?
It is a low-pitched, soft, early , diastolic extra sound of great value. First described by Potain in the second half of the 19th century, S3 is an important clue to ventricular dysfunction. In a nationwide survey of primary care residency directors, it was ranked as the most useful extra sound.
How is S3 best detected?
In left lateral decubitus, and by holding the bell very gently over the apex. This will bring the ventricle closer to the chest wall, thus improving sound transmission. Of course, asking the patient to turn on the side after a negative supine exam requires a high index of suspicion. A high index of suspicion is also needed for other “bedside maneuvers” that may elicit the S3.
Why the bell?
Because it filters out all the extraneous high frequencies, thus making the feeble S3 more easily detectable. Given its low pitch, S3 may be inaudible through the diaphragm. In fact, it may be inaudible even through the bell when too much pressure is applied (thus transforming it into a diaphragm). This little trick can be used to confirm that the sound in question is indeed an S3, and not, for example, a higher-pitched extra sound like an OS.
How is S3 after an extrasystole?
Louder. The mechanism is the same: increased ventricular filling following the premature beat.
Should S3 be pursued over the point of maximal apical impulse (PMI)?
Yes. In fact, at times S3 is too soft to be heard anywhere else. That the PMI is the best area of auscultation derives directly from the site of origin of S3, the left ventricular wall.
Can S3 be palpable?
Yes. In patients with LVH, S3 may be more palpable than audible. Especially in left lateral decubitus.
Which is easier to detect: S3 or S4?
S4. It is higher-pitched and louder, even though not quite as long (the S3 is often prolonged by a series of low-pitched and humming vibrations, rumble-like – see later).
How is S3 produced?
Not by the LV hitting against the chest wall, but instead by the sudden and abnormal deceleration in left ventricular flow that coincides with the end of rapid filling. This occurs in patients with abnormal left ventricular compliance or increased left ventricular preload (the latter can be physiologic in young and bradycardic athletes, and pathologic in atrioventricular regurgitation or left-to-right shunt). Either mechanism will make S3 more detectable, through increased frequency (abnormal compliance) or greater intensity (higher pre-load).
Why does S3 occur in early diastole? (See Fig. 10.10 )
Because it coincides with the rapid (and passive) phase of ventricular filling , which occurs in early diastole just after the opening of the A-V valves. This normally accounts for 80% of ventricular filling, with the other 20% taking place much later in diastole, and at the time of atrial contraction ( active filling). This late phase coincides with the atrial kick , and is heralded not by S3 but by S4. Hence, S3 signals the phase of early (or passive) ventricular filling, while S4 signals the phase of late (or active) ventricular filling. Both sounds occur within the ventricle .
Is S3 always a gallop?
No. A gallop is any triple lilt whose cadence resembles the canter of a horse. Accordingly, a ventricular gallop (i.e., a gallop produced by S3) is only one of three forms of gallop (see later). The sine qua non for a gallop is its lilt , which usually requires S1 and S2 to be almost as soft as the pathologic extra sound. It also requires a relatively fast heart rate , even though gallops can at times be rather slow, as long as they maintain the necessary cadence . Note that tachycardia is instead the prerequisite for the summation gallop (see later).
Can a gallop be physiologic?
No, a gallop is always pathologic. Hence, S3 can be physiologic and yet not be a gallop, while the S3 “gallop” is always pathologic. Whether due to S3 or S4, a gallop is usually ominous .
Who first used the term gallop ?
Pierre Carl Potain, who, in the second half of the 19th century, wrote about the “triple bruit du coeur” and the “bruit de galop” – an expression of his teacher, Jean-Baptiste Bouillard (besides describing both S3 and S4, Potain also contributed to the measurement of blood pressure).
What are the most important gallops?
(1) The ventricular gallop (where the lilt is due to a third heart sound, together with a soft S1 and S2) and (2) the atrial gallop (where the lilt is instead due to a fourth heart sound, together with S1 and S2). Traditionally, we try to mimic these rhythms by saying in a cadenced fashion: Ken-tu-cky (for an early diastolic, or S3 gallop) and Ten-ne-ssee (for a late diastolic, or S4 gallop). Finally, there is a third and less common gallop, called summation .
What is a summation gallop?
It is the peculiar lilt of very tachycardic patients, who have both atrial and ventricular gallops. Often referred to as “S7” (S3 + S4), the summation gallop owes its genesis to a tachycardia -induced shortening of diastole, causing the merge of S3 and S4 into a single extra sound (S7).
What are the causes of a summation gallop?
Diseases causing both a stiff and a failing ventricle, like hypertensive congestive heart failure. A summation gallop may also occur in hypertrophic cardiomyopathy , and in a first-degree A-V block (where the prolonged P-R moves the S4 backward in diastole, thus merging it with S3).
What are the acoustic characteristics of a summation gallop?
It is higher-pitched, longer, and louder than either S3 or S4 (in fact, often louder than S1 and S2). It is also easily palpable. Given its longer duration (and its location in early/mid-diastole), S7 can often be misinterpreted as a mid-diastolic rumble. It can, however, be easily recognized as a combination of two separate acoustic events by simply slowing the heart rate. This can be done with a cautious carotid massage (beware of elderly and possibly atherosclerotic patients).
Is a quadruple rhythm the same as a summation gallop?
No. A quadruple rhythm is a gallop lilt characterized by both S3 and S4, each separately audible. This is usually caused by a rate not fast enough to produce summation. More than the galloping of a horse, a quadruple rhythm resembles the steel-rail humming of a passing train.
What is a physiologic S3?
It is the sound often heard in healthy children and young adults, usually in association with a venous hum or an innocent systolic murmur. A physiologic S3 occurs in 20%–90% of young volunteers, usually thin and with more rapid early diastolic left ventricular inflow. It can also occur in athletes, especially if bradycardic. It is due to a more energetic expansion and filling of the LV, probably caused by higher cardiac output (and lower heart rate). It typically softens (or disappears) upon assuming an upright position (because of the decreased venous return). Given the slowing of ventricular relaxation associated with aging (which delays diastolic filling), S3 above the age of 40 should be considered pathologic until proven otherwise.
Can a physiologic S3 occur in any other situation?
Yes. It can occur in patients with increased sympathetic tone or higher catecholamines, causing rapid circulation time and tachycardia (hyperkinetic heart syndrome) .This, for example, affects 80% of pregnant women. An S3 of this type often coexists with a cervical venous hum .
What is the clinical significance of a pathologic S3?
It reflects either: (1) increased ventricular preload (i.e., diastolic overload) or (2) reduced ventricular function (i.e., systolic impairment, with decreased myocardial contractility and low ejection fraction). The first (and less common) mechanism plays a role in high-output failure ; the second (and more common) plays instead a role in the low-output failure of dilated cardiomyopathy (conversely, hypertrophic cardiomyopathy is more often associated with S4 ).
How does a pathologic S3 differ from a physiologic S3?
A pathologic S3 is softer, lower-pitched, and more likely associated with a gallop. It is also longer. At times, however, the two may be indistinguishable. Hence, the best differentiating feature is “the company it keeps:” a pathologic S3 comes with symptoms or abnormal signs.
Why is the pathologic S3 softer and lower-pitched?
Because of reduced ventricular contractility. This also causes the tachycardia and softer S1/S2 of these patients. Altogether, these findings make the pathologic S3 more subtle and elusive.
What is the low-pitched diastolic murmur that often follows a pathologic S3?
It is the sound produced by the sudden rush of blood across the A-V valve. This low-pitched, short, early diastolic rumble often occurs in situations of ventricular dysfunction or increased transmitral flow, as in cases of regurgitation. It may even present in patients who lack an S3. It is, however, rarely encountered in association with a physiologic S3. Hence, the presence of an early diastolic rumble and an S3 should be considered pathologic until proven otherwise.
What are the hemodynamic implications of an S3?
They depend on the mechanism responsible for its generation.
In patients with increased left ventricular preload (diastolic overload), the atrial pressure is not necessarily elevated, while cardiac index and ejection fraction may even be increased.
In patients with systolic dysfunction (and abnormal ventricular compliance ), the cardiac index and ejection fraction are instead both decreased, while left atrial, pulmonary diastolic, pulmonary capillary wedge, and left ventricular pressures are all increased. Hence, the LV is dilated and the end-diastolic volume increased. S3 in ventricular dysfunction reflects ejection fraction <30% and filling pressure ≥25 mmHg. That the sound is partly due to an increased atrial pressure is demonstrated by its disappearance after diuresis.
What are the clinical implications of S3?
Quite a few. S3 is such an accurate predictor of poor systolic function (and elevated atrial pressure) that its absence argues in favor of an ejection fraction >30%. In patients with congestive heart failure, S3 is the best predictor for response to digitalis and overall mortality. If associated with elevated jugular venous pressure, it predicts more frequent hospitalizations and worse outcome. S3 is also the most significant predictor of cardiac risk during noncardiac surgery. Even in the absence of other signs of decompensation, it can identify patients at risk of peri- or postoperative failure and infarction. If preoperative diuresis is not instituted, it can also predict mortality. Finally, presence of S3 in MR reflects worse disease (i.e., higher filling pressure, lower ejection fraction, and more severe regurgitation).
You diagnose mitral regurgitation in systole, but you assess its severity in diastole.
Which conditions are responsible for an S3 of diastolic overload?
Intracardiac or intravascular shunts – like a VSD or a PDA. Note that an atrial septal defect is not responsible for diastolic overload of the LVLV. This is because the left to right atrial shunt actually decreases the transmitral flow (while the increased tricuspid flow is much less likely to cause a right- sided S3).
MR with increased diastolic flow across the MV. Here S3 is louder and higher-pitched than the more typical S3, almost resembling an OS. S3 in MR does not necessarily indicate heart failure, but does indicate a severe regurgitation.
What about the diastolic overload of aortic regurgitation?
In contrast to MR, presence of S3 in chronic AR does indicate left ventricular dysfunction. In fact, it may help in selecting patients for catheterization and valve replacement.
What is the effect of pulmonary hypertension on the S3 due to diastolic overload?
If the diastolic overload is caused by a left-to-right shunt (such as VSD or PDA), the development of pulmonary hypertension will gradually decrease the shunt, and thus reduce the transmitral flow across. This will progressively soften S3 and eventually eliminate it – an important clue to the development of Eisenmenger’s syndrome. In these patients, the return of an audible S3 usually indicates development of a new right -sided (and not left-sided) failure.
What is Eisenmenger’s syndrome?
It is any left-to-right shunt complicated by pulmonary hypertension, shunt reversal, and cyanosis. Eisenmenger’s is usually more common with PDA or VSDs, and less with atrial septal defects. The syndrome was first described by the German physician Victor Eisenmenger (1864–1932).
Is S3 common in aortic stenosis (AS)?
No, it’s actually uncommon . When present, it indicates ventricular decompensation and elevated filling pressure. AS is otherwise more commonly associated with S4 .
How common is S3 during a myocardial infarction?
Not uncommon in the early stages, but resolving in matter of days or weeks. In fact, a persistent postinfarction S3 has ominous implications, predicting greater myocardial damage, higher likelihood of congestive heart failure, and worse mortality.
Is S3 always generated by the left ventricle?
No. It can also be generated by the RV , through the same mechanisms of either ventricular dysfunction/flaccidity or increased transvalvular flow.
Which disease processes are associated with a right-sided S3?
Processes characterized by either increased blood flow across the tricuspid valve (because of severe TR) or increased impedance to right ventricular emptying (because of cor pulmonale or massive pulmonary embolism).
How can you differentiate right from left ventricular S3?
Mostly through the different location (the right-sided S3 is best heard over the left lower sternal border/epigastric area, and not at the apex). Response to respiration will also be different ( Fig. 10.15 ); the right-sided S3 gets louder with inspiration , while the left-sided gets louder with exhalation (Carvallo maneuver). Finally, a right-sided S3 is often associated with a parasternal “lift” (see also Question 121).
What is the differential diagnosis of S3?
A split S2: in contrast to S3, a split S2 is higher-pitched and thus best heard through the diaphragm, and at the base. It also has respiratory variations but does not soften with either a sitting or standing position.
Tumor (plop): the hallmark of this sound is its cycle-to-cycle variability, which is not a feature of S3.
Pericardial knock and OS: in contrast to S3, both the knock and the OS are medium- to high-frequency sounds; thus, best detected through the diaphragm.
How can S3 be further differentiated from an opening snap(OS)?
S3 occurs a little later in diastole than OS (and much later than the split S2): 120–220 msec after A2 as opposed to 100 msec for OS. Although this may seem trifling to the untrained ear, it can actually help differentiating the two sounds. In addition, S3 is softer, lower-pitched, and heard through the bell. Finally, because the LV is usually small in MS, OS tends to be a little closer to the left sternal border than the S3 (which is instead loudest at the apex).
How common is S3 in mitral stenosis (MS)?
Very un common. In fact, presence of S3 argues strongly against significant stenosis. This is because the valvular obstruction of MS prevents the rapid left ventricular early diastolic filling that is so crucial for the genesis of S3.
What is an S4?
It is a low-pitched, soft, late -diastolic (and thus, pre systolic) extra sound. It is much more common than S3, but never physiologic. Still, some authors consider it a “normal” sound of aging, due to the reduction in ventricular compliance that results from either hypertrophy (i.e., hypertension) or fibrosis (i.e., ischemia) – two time-honored companions of old age.
How is S4 best detected?
Very much like the S3: over the apex, through the bell, and in left lateral decubitus. Note that S4 (and S3) are often inaudible in a supine position, and become transiently more evident only upon assuming a left lateral decubitus . As in the case of S3, a firm pressure on the bell will usually soften or eliminate S4.
Can S4 be palpable?
Yes, as a presystolic movement. This is best detected in left lateral decubitus, and over many cardiac cycles (because of its respiratory variation). In fact, S4 is often easier to palpate than S3, thus allowing for a bedside differentiation between these two diastolic extra sounds. A palpable S4 should always be considered pathologic (conversely an S4 that is only audible is often a byproduct of aging).
How common is S4? Can it be normal?
It depends on the method used to detect it. By phonocardiography it is so common that it may indeed reflect no true pathology. In fact, S4 can be recorded in 75% of normal middle-aged subjects, as a response to the effects of aging on ventricular compliance. Still, an audible , loud , and even palpable S4 almost always reflects an underlying pathology – independently of the patient’s age. Even in older adults (where it may be common even in the absence of clear-cut pathology), the presence of a distinctly audible S4 should suggest underlying disease. Indeed, follow-up of these “normal” patients usually reveals coronary artery pathology.
Can S4 occur in younger individuals?
Yes. It has been recorded in younger subjects with no clear underlying pathology but just an increase in blood flow.
What are the auscultatory differences between S3 and S4?
S4 is higher-pitched, louder, shorter and, of course, differently timed, since it is late diastolic, and thus preceding S1 (which serves as an important reference point). S3 is instead early diastolic, and thus following S2 . Both vary with respiration (S3 more prominently than S4).
How is S4 produced?
By atrial contraction, primarily left-sided, but at times right-sided too. Yet, it is not generated by atrial systole per se , but by the resulting forceful tension of ventricle/AV valve apparatus . Hence, S4 is often more persistent than S3, since its reason (strong atrial contraction) is usually chronic.
What is the hemodynamic significance of an S4?
Not as ominous as that of S3. S4 corresponds to an increase in late ventricular diastolic pressure, but in contrast to S3, it reflects normal atrial pressure, normal cardiac output, and normal ventricular diameter. It is also associated with loud S1 and S2, since ventricular systole is usually adequate, and many patients are even hypertensive.
What are the clinical implications of S4?
More benign that those of S3, insofar as S4 has no adverse postoperative implications. It is even questionable whether it predicts severity of AS. It simply indicates a hypertrophic but compensated ventricle, with reduced ventricular distensibility and decreased passive filling in early-to-mid diastole. This places greater demand on atria, which now have to handle 30%–40% of the entire ventricular filling (instead of the usual 20%). The resulting stronger atrial kick will rush blood into the noncompliant ventricle, and thus produce S4, which in tachycardic patients may assume a gallop cadence. Hence, S4 indicates diastolic rather than systolic dysfunction.
Which disease processes can cause an S4?
Diseases with ventricles so thick as to require a strong atrial contraction (in fact, P waves may also become prominent). Among these are: (1) hypertension , either systemic or pulmonary (note that S4 may precede the electrocardiographic signs of ventricular hypertrophy); (2) AS (where S4 is usually associated with a gradient >70 mmHg); (3) coarctation of the aorta ; (4) hypertrophic cardiomyopathy (an audible, and palpable, S4 is almost a sine qua non for this condition); (5) CAD (S4 can be heard in as many as 90% of patients with MI); and (6) prolonged P-R interval .
What happens when these hypertrophic ventricles fail?
Once ventricular hypertrophy evolves into ventricular failure (with a dilated and flaccid ventricle), the S4 gradually softens and eventually disappears, leaving in its place an S3. Hence, S4 implies an earlier, more compensated (and less severe) ventricular dysfunction.
How common is S4 in myocardial infarction (MI)?
Very common early on, and overall benign, given the ventricular stiffness of ischemia. Yet, presence of S4 at more than one month after MI does predict higher 5-year mortality.
Can S4 occur in mitral regurgitation?
Only if acute. Otherwise, MR is typically associated with an S3 .
Can a right-sided S4 be differentiated from a left-sided one?
Yes. Like the right-sided S3, a right-sided S4 is best heard over the lower left sternal border or subxiphoid areas. At times it may even be heard over the neck veins. Also, a right-sided S4 is commonly associated with other signs of right ventricular strain, like distended neck veins with large A or V waves, loud P2, and right-ventricular heave. Finally, as all right-sided findings, a right-sided S4 is usually louder in inspiration .
Can patients with atrial fibrillation have an S4?
No, since they cannot muster an adequate atrial contraction. The same applies to atrial flutter.
What is the differential diagnosis of an S4?
A split S1. In contrast to S4, a split S1: (1) widens (or shortens) with respiration in one-third of patients; (2) does not soften upon standing or sitting; (3) is best heard with the diaphragm; and (4) presents all the way up to the upper left sternal border (the S4, instead, is mostly localized over the apex or lower sternal border).
S1-ejection click (sound) complex. This may easily simulate an S4-S1 complex, and thus be difficult to separate. In contrast to S4, both S1 and an ejection sound (ES) are medium-to-high pitched, and thus best heard with the diaphragm and do not soften upon assuming an upright position (as does the S4). Finally, ES is usually audible all the way up to the base, intensifying with exhalation when pulmonary in origin. Note that while S4 can be palpable (as a presystolic impulse), a split S1 and the ES can only be audible.
What is an opening snap?
It is a pathologic, loud, snapping, short, and high-pitched early diastolic extra sound of patients with mitral (or tricuspid) stenosis. It is loudest over the lower left sternal border (a little less at the apex), and best heard by either using the diaphragm or by applying firm pressure on the bell (thus converting it into a diaphragm). It is produced by the tensing and deceleration of a stenotic but still mobile A-V valve ( Fig. 10.16 ). In this, it resembles the snapping of a sail that is filling with wind. Note that in MS , much of the snapping is produced by the filling of the anterior leaflet, which is larger and more mobile than the posterior.
Why are these sounds called “snaps”?
Because of convention. Extra sounds produced by the atrioventricular valves are normally referred to as snaps (if occurring in diastole and caused by the abnormal opening of the leaflets) and clicks (if occurring in systole and caused by the prolapse and backward ballooning of the leaflets). Clicks of A-V prolapse are usually mid-to-late systolic, although they can also be early systolic, but in this case they are more commonly due to abnormal semilunar ejection, and thus referred to as ESs.
Is the opening of a normal atrioventricular valve audible?
No. Only in patients with hyperkinetic heart syndrome, the increase in blood flow may render it audible. This, however, represents more the exception than the rule. In all other cases, an audible sound of A-V opening indicates thickening and stiffening of leaflets, making them behave like a sail that suddenly fills under wind – with ballooning, billowing, and a final snap caused by the tight grip of the chordae.
How can one distinguish an opening snap from the closing of S2?
By their different timing. There is usually enough separation between the closing of the AV (A2) and the opening of the MV to make them perceived as two separate acoustic events. This interval is around 100 msec and is commonly referred to as the A2-OS .
Does the timing of OS (i.e., the length of A2-OS) reflect the severity of stenosis?
Yes: the earlier the snap, the worse the stenosis . OS timing is controlled by: (1) the pressure in the LA at time of mitral opening (the greater the pressure, the earlier the snap); (2) the heart rate (bradycardia delays the snap, while tachycardia accelerates it); (3) the stiffness of the MV (the stiffer the valve, the longer the A2-OS, and thus the later the snap); (4) myocardial contractility (ventricular dysfunction lengthens the A2-OS and delays the snap); and (5) the closing pressure for the AV . The higher the aortic pressure, the later the snap.
Does the intensity of OS reflect the severity of stenosis?
Yes. A soft (or absent) snap suggests a stiff and poorly mobile MV, usually calcific (although it might also reflect the thickness of the chest wall, or the degree of emphysema). Other conditions may also soften OS, including heart failure, a very large RV (which pushes the left ventricular wall away from the chest surface), and pulmonary hypertension (that reduces flow at both the mitral and pulmonic level). Conversely, increased venous return (and raised left atrial pressure) increases the intensity of the snap. This can occur after leg-raising or mild exercise, like turning from supine to left decubitus position.
How common is an opening snap in patients with mitral stenosis?
Common. In the absence of calcification, it occurs in 75%–90% of all patients. Usually it reflects a milder form of the disease, and thus is absent in more advanced (and calcific) cases.
How can one distinguish the pulmonary sound of a split S2 from an opening snap?
With difficulty. Both P2 and OS are high-pitched and short. And the time interval between A2 and P2 is similar to that between A2 and OS (both are 30–100 msec). Hence, to separate P2 from OS, you should rely on: (1) the area of maximum intensity (OS is louder at the lower left sternal border/apex while P2 at the base); (2) the respiratory variations (in the absence of left bundle branch block, the expiratory widening of a “split S2” is more likely to represent an OS than a A2-P2 complex); and (3) the intensity of S1 (a soft S1 tends to exclude an OS). In case of pulmonary hypertension, the best way to differentiate P2 from OS is not the apical intensity of the sound (which can be quite loud), but its respiratory variations.
What is a tricuspid opening snap?
It is the opening sound of a stenotic tricuspid valve. This may occur in 5% of MS patients.
How can one differentiate a mitral from a tricuspid OS?
By respiration. Like all right-sided findings, the tricuspid OS is louder in inspiration . The OS of MS is instead louder in exhalation .
What is a pericardial knock?
It is a sharp, loud, and high-pitched early diastolic sound that coincides with early ventricular filling. Hence, it represents a special form of S3, even though louder, earlier, and higher-pitched. It is best detected by placing the diaphragm between the apex and left sternal border.
How is the pericardial knock produced?
By sudden deceleration of the LV, as it encounters a thick and calcific pericardium. This is a mechanism similar to that of S3, even though the deceleration of the knock is even more abrupt. Hence its loudness.
Is the pericardial knock common in acute pericarditis?
No. It is always absent in acute/subacute pericarditis (where, instead, the rub is a more typical finding). Even in tamponade knocks are absent. Conversely, they are encountered in 30%–90% of patients with chronic calcific and constrictive pericarditis . This used to be the sequela of an old tuberculous process, but nowadays is usually the result of coronary artery bypass surgery.
What other physical findings may accompany constrictive pericarditis?
Findings of right-sided heart failure : hepatomegaly (90%–100%), ascites (50%–90%), leg edema (60%), and often anasarca. The key feature, however, is distention of neck veins (present in 98% of cases), with typically deep X and Y descents that mimic on tracing a “M” or “W.” The deep “Y” (Friedreich’s sign present in 60%–90% of cases) is due to the fact that ventricular filling is only impaired at the very end of diastole, so filling occurs rapidly in the early part of diastole.
Kussmaul’s sign : inspiratory distention (and not collapse) of the neck veins. This is present in half of patients with constriction.
Pulsus paradoxus can be present in up to 40% of the cases, but only in the low range of 10–20 mmHg (see also Chapter 2 ).
Systolic retraction of the apical impulse. This occurs in 90% of cases.
What is the differential diagnosis of a pericardial knock?
S3 and OS (OS) . The knock occurs later than OS, and is much louder and higher-pitched than S3. Since it can be well heard over the pulmonic area, it may also need to be differentiated from a split S2, which has respiratory variations, lack of transmission to the apex, and shorter interval.
What is a tumor plop?
It is a sound produced by the diastolic prolapse of a pedunculated left (or right) atrial myxoma, billowing back through either the mitral or tricuspid orifice. It is rare (being present in only 10% of myxoma patients), but does go into the differential diagnosis of an early diastolic extra sound, together with S3, the OS, the pericardial knock, and the split S2. Its hallmark is variability , insofar as it is intermittent and varying in intensity, timing, and quality . Changes in body posture may occasionally induce a sudden drop in blood pressure (with or without syncope). This is due to a transient obstruction by the tumor of the diastolic ventricular flow.
What is an ejection sound (ES)?
It is a high-pitched and clicky early systolic sound that is often louder than S1 and always best heard through the diaphragm. It used to be referred to as ejection click (or early systolic click) , but nowadays is most commonly called the ejection sound , since this avoids confusion with the mid/late systolic click of atrioventricular prolapse.
What is the mechanism of production? ( Fig. 10.17 )
ESs are produced by blood flowing across the semilunar valves and into the large vessels. Thus, they are a normal, but usually inaudible, components of S1. Only in disease, however, do they become loud enough to be identifiable as separate acoustic events . In patients with no cardiovascular pathology, ESs are usually the result of a hyperkinetic heart syndrome . In patients with cardiovascular pathology they reflect instead one of two processes:
The opening (or doming) of a congenitally bicuspid semilunar valve, with/or without stenosis.
A dilatation of the aortic (or pulmonic) root. The enlarged trunk creates the sound through its sudden tensing in early systole. This is invariably associated with arterial stiffening or high pressure in the corresponding vascular bed (i.e., pulmonary or systemic hypertension).
How do you distinguish an aortic from a pulmonic ejection sound?
By their different location (left upper parasternal border for the pulmonic, apex for the aortic – even though the latter can also be heard over the aortic area).
By their different response to respiration : the aortic ES has constant intensity throughout respiration, while the pulmonic gets louder in exhalation and softer in inspiration. This is because the ballooning of the pulmonic valve (which causes the sound) tends to be less in inspiration, due to the increase in venous return that, in turn, causes a stronger right atrial contraction. The inspiratory softening (and even disappearing) of the pulmonary ES is very much in contrast to the respiratory behavior of all other right-sided findings, whose intensity increases during inspiration, while decreasing during exhalation (Carvallo maneuver).
Can an ejection sound be accompanied by a systolic murmur?
Yes. In fact, ESs due to a bicuspid valve are often immediately followed by an ejection murmur . This is caused by a relative stenosis of the bicuspid valve, leading, in turn, to a poststenotic dilatation of the aortic (or pulmonic) root. The dilatation further enhances the ES, thus perpetuating the cycle. Hence, an ES identifies a concomitant systolic murmur as pathologic, and places the cause of the stenosis at the valvular level.
What is an aortic ejection sound due to?
Forceful ejection of blood into a normal aortic root (as it may occur in high-output states, like AR), or normal ejection of blood into a stiffened and dilated aortic root (as it may occur in patients with hypertension, atherosclerosis, aortic aneurysm, or AR).
Normal ejection of blood through an abnormal AV . This is either a native trileaflet valve that has been stiffened and fused by a rheumatic process, or (more commonly) a congenitally bicuspid valve.
Where is the aortic ejection sound best heard?
It depends. In patients with semilunar valve disease, it is well heard at the base, but even better at the apex . In some cases, the apex may actually be the only area where the ES is detectable. This is also true in patients with emphysema. When instead the ES originates from the aortic root , it is best heard throughout the sash area of aortic projection (from the apex to the right shoulder), with highest intensity at the base. The aortic ES is also best heard with the patient sitting up and in held exhalation.
What is the significance of an aortic ejection sound in aortic stenosis?
It argues in favor of valvular AS (ESs are absent in both subvalvular and supravalvular AS). More importantly, an ES argues in favor of a bicuspid AV.
What is the clinical significance of the intensity of an aortic ejection sound?
It reflects the mobility of the valve. Hence, ES will soften with fibrosis and disappear with calcification (usually indicating a transvalvular gradient >50 mmHg). Hence, the higher prevalence of ESs in young individuals, whose stenotic valves tend to be more pliable and mobile than those of the elderly.
Can the opening of a pulmonary bicuspid valve be responsible for an ejection sound?
Yes. In patients with valvular PS, the sudden opening and upward movement of a dome-shaped valve will generate an ES.
Does a pulmonic ejection sound indicate severity of pulmonary stenosis (PS)?
To the contrary. It indicates mild to moderate disease (which is intuitive, since ESs reflect mobility of the valve). Only rarely it correlates with right ventricular pressure >70 mmHg. In more severe PS cases the ES tends to occur earlier, either merging with S1 or preceding it.
What is the significance of the intensity of a pulmonic ejection sound?
Not as valuable as that of an aortic ES. In valvular PS the intensity of ES correlates very little with severity of the disease, since a softer click may occur in both mild and severe disease. Still, the intensity of the click does vary with respiration (louder in exhalation and softer in inspiration), as does the intensity of the systolic ejection murmur that may accompany it.
What is a nonvalvular pulmonic ejection sound due to?
To two possible mechanisms, both taking place in the pulmonary artery :
Pulmonary hypertension . The ES is caused by ejection of blood into a stiffened pulmonary trunk. The timing of the sound correlates with pulmonary artery diastolic pressure: the higher the pressure, the later the systolic occurrence of ES.
Dilatation of the pulmonary artery . Contrary to the valvular pulmonic ES, these two arterial ES remain constant throughout respiration.
What is the differential diagnosis of an ejection click?
The most difficult is its differentiation from a split S1. Less difficult is the separation from either S4 (softer, lower pitched, preceding S1, and best detected through the bell) or a mid/late systolic click (high-pitched and loud as the ES, but timed a bit later in systole).
What is the Means-Lerman Scratch of Hyperthyroidism?
It is a raspy and scratchy systolic sound heard over the pulmonary artery of patients with hyperthyroidism. Described in 1932 by the American physicians J. Lerman and J.H. Means, it resembles a combination ejection murmur/ES. It can also resemble a pericardial friction rub, since it has similar grating qualities and increase in exhalation. In fact, the Means-Lerman scratch is caused by the rubbing of a hyperdynamic pericardium against the pleura. It is less common than the other cardiovascular findings of hyperthyroidism, such as tachycardia (with 90% of patients having a resting heart rate >90 beats/min); bounding peripheral pulses ; wide pulse pressure ; active precordium ; louder heart sounds ; and a systolic ejection murmur (in up to 50% of cases). Moreover, Means-Lerman is not exclusive of thyrotoxicosis, having been described in other hyperdynamic conditions, such as anemia or fever.
What are mid-to-late systolic click(s)?
They are short, high-pitched, and clicky extra sounds that are best heard over the apex and left lower parasternal area. Diaphragm of the stethoscope, various bedside maneuvers, and a left lateral decubitus may all be necessary to bring them out.
What is the clinical significance of a single (or multiple) mid-to-late systolic click(s)?
They indicate the presence of MVP or tricuspid valve prolapse. In fact, simple identification of a typical click and/or murmur complex suffices – no further testing is needed.
What are the auscultatory characteristics of a systolic click due to MVP?
The major one is variability from cycle to cycle: in intensity, number, and timing. Clicks may also acquire association with late systolic murmur, faint enough to elude unskilled clinicians. At times they may be multiple, further confusing the inexperienced observer.
Why don’t clicks of mitral valve prolapse occur in early systole?
Because they have different modes of generation:
Early systolic clicks are ESs , due to blood flowing across the semilunar valves and into the arterial root (aortic or pulmonic). Hence, they occur at the beginning of ventricular ejection (i.e., early systole).
Mid-to-late systolic clicks , on the other hand, are regurgitant sounds, caused by the posterior billowing of a mitral leaflet. Since this requires a significant decrease in left ventricular size, mid-systolic clicks usually take place during mid-to-late systole. Yet, as always in medicine, there are exceptions that confirm the rule. Some prolapse clicks, for example, may either follow or overlap with S1 (thus creating a loud summation sound). These are usually caused by a prolapse so severe to occur even in the large and distended ventricle of early systole.
How can one recognize mitral valve prolapse when the click coincides with S1?
By the combination of a holosystolic murmur of regurgitation plus a loud “S1” (which is actually the summation of S1 and click). A loud S1 is otherwise uncommon in patients with simple MR.
What are the acoustic characteristics of the click(s)?
The click(s) is mid-to-late systolic, loudest over the apex or left sternal border, and at times multiple. In two-thirds of the cases it precedes the murmur, in one-third it immediately follows it.
How are these clicks generated?
By the combined backward snapping of a prolapsing mitral leaflet and the sudden stretch of its chordal apparatus (chordal snap) . This would also explain the occasional multiple clicks. Yet, some authors have argued that the contraction of the papillary muscles may actually prevent the leaflet from prolapsing directly back into the atrium. In this case, the click might be due to the ballooning of the leaflet itself, very much like the sound of a sail suddenly filled by wind.
Which bedside maneuvers can change the timing of an MVP click/murmur?
Maneuvers that modify left ventricular diameter ( Fig. 10.18 ). For a more detailed discussion, please see Questions 320 and 321.
Are mid-to-late systolic clicks always associated with a late systolic murmur?
Not at all. If associated, however, they suggest the presence of MVP with regurgitation. Yet, many MVP patients have only the click (or click s ), since the presence of a murmur (and thus regurgitation ) may vary from day to day and cycle to cycle.
Can patients with MVP present with a diastolic click?
Yes: 5%–15% of all MVP patients indeed have an early diastolic click. This is still caused by the ballooning of the mitral leaflet, albeit in a reversed direction.
What is the differential diagnosis of a mid-systolic click?
It depends on timing. Earlier clicks tend to be confused with ESs , split S1, or even S4 (which, however, is softer and lower-pitched). Mid-to-late clicks, on the other hand, can be confused for a split S2 or even for an S2/OS complex. Presence of a late systolic murmur following the click may further confuse, suggesting an OS/diastolic rumble complex. Finally, multiple systolic clicks may also be confused for pericardial friction rubs.
What are the auscultatory characteristics of a pericardial friction rub?
It is a scratching, scraping, grating, crackling, crunchy, squeaky, creaking, and typically fleeting noise , heard in patients with inflammation of the pericardial layers. It is very different from a murmur or an extra sound. In fact, it was first described by Collin in 1820 as the “crackling of new leather.” Because of its high frequency, it is best heard by applying firm pressure on the diaphragm of the stethoscope, so that the tensing of the skin may further help transmission.
How many components are in a rub?
As many as three: (1) one occurring anywhere in systole, although most commonly in mid-systole (and thus corresponding to ventricular contraction); and (2) two occurring instead in early and late diastole (and thus corresponding respectively to early ventricular filling and atrial contraction). These may give the rub a peculiar lilt, almost gallop-like.
Do rubs always present with three components?
No. The systolic component is always present, but the diastolic ones may be absent, especially the atrial . In a review of 100 patients with pericardial friction rubs, found that around 50% had three components, 30% had two components, and only 15% had just one.
Where are rubs best heard?
Throughout the precordium, although more than 80% tend to be louder along the left parasternal area and lower left sternal border (third and fourth interspace). Note that rubs vary tremendously from site to site, often being audible in only a very circumscribed area.
Can rubs be palpable?
Yes. Very loud rubs can be palpable (the same is true for pleural friction rubs). One-fourth of all rubs are, in fact, palpable.
What bedside maneuvers can intensify a pericardial friction rub?
The most common is inspiration : in approximately one-third of the patients rubs become louder in deep and held inspiration . This is because the inspiratory descent of the diaphragm stretches the pericardium, thus making the rubbing of the two layers more likely to occur, and more intense. Note however, that rubs may also be enhanced by held exhalation . This brings the heart closer to the chest wall, but also increases venous return to the LV, thus better stretching the pericardial layers onto each other. Finally, having the patient sit up, lean forward, and rest on elbows and knees may also increase contact between visceral and parietal pericardium, and thus their rubbing ( Fig. 10.19 ).
How can one separate a pericardial from a pleural rub?
By asking patients to hold their breath, first in inspiration and then in exhalation. A pericardial rub will persist in at least one of the two (and usually in both), while a pleural rub will disappear. Remember, however, that patients with viral pleuro-pericarditis or Dressler’s syndrome may actually have both a pleural and a pericardial friction rub.
Which disease processes are associated with rubs?
Pericarditis , usually acute or subacute. This can be localized (as in the case of trauma or myocardial ischemia) or diffuse (viral or bacterial infections, radiation changes, uremia, and collagen vascular diseases like rheumatoid arthritis and systemic lupus erythematosus). Prevalence of rubs varies from condition to condition. Still, a rub is only one of the three diagnostic features of acute pericarditis (the others being chest pain and EKG changes).
Acute MI . Rubs occur in 20% of cases, usually a few days into the course (they are typically absent in the first 24 hours). Rubs carry a worse prognosis, reflecting larger infarcts, more extensive coronary disease, lower ejection fractions, and greater number of complications – including arrhythmias and pump failure (but not tamponade).
Although fleeting in simple postinfarction pericarditis, rubs can last much longer in post-MI (Dressler’s) syndrome .
A pericardial rub can also occur (albeit rarely) in patients with pulmonary embolism.
Finally, a localized rub is often heard in patients with metastatic involvement of the pericardium, even though only 7% of all neoplastic effusions are associated with a rub. Curiously, in patients with known cancer that develop a rub, the finding argues against a neoplastic etiology, predicting instead either an idiopathic or a radiation-induced process.
Does the presence of a rub exclude a pericardial effusion?
No. One-tenth of all rubs will be associated with a pericardial effusion. In fact, rubs can occur in up to one-fourth of tamponade cases. Although this is counterintuitive, it reflects a loculated process, capable of compromising ventricular filling (the sine qua non of tamponade) while simultaneously allowing parts of the pericardium to rub against each other. Hence, never exclude tamponade because of a rub. Instead, measure pulsus paradoxus. Especially in patients with tachycardia, tachypnea, distended neck veins, and clear lungs (see Chapter 2 ).
What is the differential diagnosis of a pericardial friction rub?
A three-component rub must be differentiated from a to-and-fro murmur of AR and from a continuous murmur of PDA . The scratching and creaking qualities of the rub will usually help recognizing it. A three-component rub may also resemble a ventricular gallop (because its early-diastolic component coincides with the S3 timing), especially in tachycardic patients, who, after all, represent the majority of pericarditis cases. To identify the rub, rely on its loudness, high frequency, and typical scratchy quality. A one-component (systolic) rub may pose the greatest diagnostic challenge, since it is often misdiagnosed as a systolic ejection murmur . To sort it out, monitor the sound over time: a rub will usually change in quality and intensity, often acquiring one or two diastolic components.
What about constrictive pericarditis?
It presents with a constellation of typical findings (see previous) that often include a knock, but rarely a rub (present in <5% of the cases).
That the stethoscope will come in general use notwithstanding its value I am extremely doubtful, because its beneficial application requires much time and gives a great deal of trouble both to the patient and the practitioner, and because its whole hue and character is foreign and opposed to our habits and associations.
It must be confessed that there is something even ludicrous in the picture of a grave physician actually listening through a long tube to the patient’s thorax as if the disease within were a living being that could communicate its conditions to the sense without.
Besides, there is in this method a sort of bold claim and pretension to certainty, which cannot, at first sight, but be somewhat startling to a mind deeply versed in the knowledge and uncertainties of our art, and to the calm and cautious habits of philosophizing to which the physician is accustomed. On all these accounts and others that might be mentioned, I conclude that the new method will only in a few cases be speedily adopted, and never generally. –John Forbes, preface to his translation of R.T.H. Laennec, De L’Auscultatione Mediate . London, T. & J. Underwood, 1821
Cardiac auscultation is the centerpiece of physical diagnosis, and recognizing murmurs is its most challenging aspect. It requires the identification of sounds jam-packed in less than 0.8 second, often overlapping, and not infrequently at the threshold of audibility. Stethoscopy is like learning a musical instrument, and similarly rewarding. Hence, despite being as old as the battle of Waterloo, this little tool (and its skill) still occupies an important role in 21st century medicine.
Become a Clinical Tree membership for Full access and enjoy Unlimited articles
If you are a member. Log in here
