Compartment Pressures (Abdomen, Extremity) – Measurement


Goals/Objectives

  • Etiology

  • Anatomic considerations

  • Management considerations

Abdominal Compartment Syndrome and Management of the Open Abdomen

Joseph F. Sucher
Zsolt J. Balogh
Frederick A. Moore

From Cameron JL, Cameron AM: Current Surgical Therapy, 10th edition (Mosby 2011)

Diagnosis

Identifying at-risk patients and preventing ACS is paramount to achieving optimal patient outcomes. However, ACS occurs across a heterogeneous group of patients; thus identifying at-risk patients will depend on the local patient population and maintaining a high index of suspicion. At-risk patients include, but are not limited to, those with major abdominal or thoracic operations requiring crystalloid fluids greater than 5000 mL/day, trauma or burn patients in severe shock who fail to adequately respond to ongoing volume loading or require a massive transfusion (>10 units of blood in 6 hours), and patients with severe pancreatitis, severe SIRS, or septic shock who require more than 40 mL/kg of crystalloid volume in the first 24 hours. At-risk patients should then have objective intra-abdominal pressure (IAP) measurements as recommended by the Abdominal Compartment Society (WSACS), shown in Figure 61-1-1 .

F igure 61-1-1, Intra-abdominal hypertension assessment algorithm.

Relying on physical examination, whether performed by use of simple subjective palpation or objective abdominal girth measurements, has been clearly shown to be nonspecific and poorly correlative with IAP. Therefore patients at risk for ACS, or those who are suspected to have IAH or ACS, should have IAP monitoring performed via the urinary bladder as described by Kron and colleagues and modified by Cheatham ( Figure 61-1-2 ). Briefly, IAP can be assessed via Foley catheter with a pressure-transducer system by instilling 25 mL of sterile saline into the empty bladder and recording the pressure as leveled at the midaxillary line. Today, multiple commercial products are available to aid in performing IAP monitoring. A management algorithm is illustrated in Fig. 61-1-3 .

F igure 61-1-2, A closed, needle-free system for measurement of intravesicular pressure. Normal saline (1000 mL), a 60 mL Luer-lock syringe, and a segment of pressure tubing are attached to a disposable pressure transducer connected to two stopcocks. An 18 gauge angiocatheter is inserted into the culture aspiration port of the urinary drainage tubing, and the needle is removed, leaving the plastic infusion catheter in place. The infusion catheter is connected to the pressure tubing, and the system is flushed with normal saline. The infusion catheter may be taped to the urinary drainage tubing for added security.

F igure 61-1-3, Intra-abdominal hypertension/intra-abdominal compartment syndrome management algorithm.

Abdominal Compartment Syndrome, Damage Control, and the Post-Traumatic Open Abdomen

Richard S. Miller
John A. Morris

From Asensio JA, Trunkey DD: Current Therapy of Trauma and Surgical Critical Care, 1st edition (Mosby 2008)

Major contributors to improved survival in the field of trauma and surgical critical care over the past decade include the early recognition and preventive strategies in the management of the abdominal compartment syndrome and the systematic, staged surgical approach to the trauma patient in extremis called damage control. However, in our efforts to cure one disease, we have created another: the post-traumatic open abdomen, defined as a large post-operative ventral hernia with the abdominal viscera covered by a temporary dressing or closure.

Many lessons have been learned in managing the complications associated with these critically ill patients and through these lessons, four essential principles in the management of the open abdomen have now evolved:

  • 1.

    Protect the bowel.

  • 2.

    Preserve the fascia and prevent its loss of domain.

  • 3.

    Expedite early fascial closure primarily or with the use of biologic material.

  • 4.

    Avoid committing the patient to a planned ventral hernia and delayed reconstruction unless absolutely necessary.

Before discussing these principles, both abdominal compartment syndrome and damage control deserve concomitant discussion regarding the initial management that then leads to the post-traumatic open abdomen.

Abdominal Compartment Syndrome

Generically, a compartment syndrome is a condition in which increased pressure in a confined space adversely effects the circulation and threatens the function and viability of the tissue within the space. This entity can occur in the extremities, orbital globe, intracranial cavity, and abdominal cavity.

The effects of increased intra-abdominal pressure were first described in 1863 by Marey and Burt, who reported the relationship between intrathoracic pressure and elevated intra-abdominal pressure. However, it was not until the 1980s that Kron and Richards coined the term “abdominal compartment syndrome” (ACS). They reported a separate series of patients that developed a tense, distended abdomen with elevated pulmonary artery pressures and increased intra-abdominal pressures postoperatively despite normal mean arterial blood pressure and cardiac performance. All of these patients improved with re-exploration and abdominal decompression.

Intra-abdominal hypertension and the abdominal compartment syndrome are not synonymous. ACS is a late manifestation of uncontrolled intra-abdominal hypertension produced by ongoing ischemia and splanchnic hypoperfusion and the resuscitative measures to counteract the hemorrhagic shock state ( Figure 61-2-1 ).

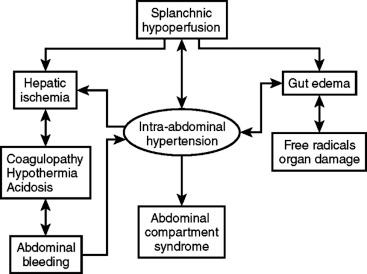

F igure 61-2-1, A cycle of ischemia producing intra-abdominal hypertension and the abdominal compartment syndrome.

Table 61-2-1 lists the risk factors associated with ACS. Mortality risk from the fulminant abdominal compartment syndrome has been reported to be as high as 67%.

T able 61-2-1
Etiology of Abdominal Compartment Syndrome: Who Is at Risk?
  • Post-traumatic hemorrhage

  • Intraperitoneal bleeding

  • Retroperitoneal bleeding

  • Extraperitoneal bleeding

  • Any patient who requires vigorous fluid resuscitation from shock of any cause

  • Postresuscitative visceral edema

  • “Deadly triad” – hypothermia, acidosis, coagulopathy

In addition to the accumulation of blood within the perineal cavity, other factors may contribute to occupying space within the abdominal cavity. This can occur by any shock-induced visceral ischemia and reperfusion edema including major injuries outside the abdominal cavity. Several recent reports have described this “secondary abdominal compartment syndrome,” which occurs most frequently with major pelvic and long bone fractures, and hemorrhagic chest injuries. However, secondary ACS can occur in any setting associated with hemorrhagic shock.

Balough and associates reviewed patients with major torso trauma and found that both primary and secondary abdominal compartment syndrome can be predicted early and are harbingers of multi­organ failure. Fourteen percent of these patients develop abdominal compartment syndrome, all of which require aggressive resuscitation using crystalloid, blood, and blood products early in their initial management in the emergency department. Therefore, the current emphasis in critical care management of the severely injured patients focuses on identification of predictive factors for the development of ACS and the recognition of intra-abdominal hypertension and treatment before full development of the syndrome.

Intra-abdominal hypertension affects multiple organ systems in a graded fashion. The deleterious consequences appear gradually, and the adverse effects of elevated intra-abdominal pressure occur at lower levels than previously thought and manifest before the development of the fulminant syndrome ( Table 61-2-2 ).

T able 61-2-2
Effects of Intra-Abdominal Hypertension on Organ Systems
Head ↑ Intracranial pressure
↓ Cerebral perfusion pressure
Heart ↓ CO
↓ Venous return
↑ Pulmonary artery occlusion pressure and central venous pressure
↑ Systemic vascular resistance
Lungs ↑ Peak inspiratory pressure
↑ Pulmonary artery wedge pressure
↓ Dynamic compliance (Cdyn)
↑ Arterial oxygen pressure (PaO 2 )
↑ Arterial carbon dioxide pressure (PaCO 2 )
↑ Intrapulmonary shunt (Qsp/Qt)
↑ Fraction of dead space to total expired tidal volume (V D /V T )
Liver ↓ Portal flow
↓ Mitochondria
↑ Lactate
Kidney ↓ Urine output
↓ Renal flow
↓ Glomerular filtration rate (GFR)
Intestines ↓ Celiac flow
↓ Superior mesenteric arterial (SMA) flow
↓ Mucosal flow
Abdomen wall ↓ Compliance
↓ Rectus flow

The classic picture of ACS includes a patient with a tense, distended abdomen and ventilatory insufficiency including hypoxia and hypercapnia, as well as increased peak inspiratory pressures. Progressive oliguria occurs despite adequate mean arterial pressure and cardiac output. This is followed by decreased cardiac performance and subsequent cardiovascular collapse unless treatment is instituted immediately ( Table 61-2-3 ).

T able 61-2-3
Abdominal Compartment Syndrome: Classic Clinical Picture
  • Tense distended abdomen

  • Ventilator insufficiency

  • Hypoxia

  • Hypercapnia

  • Increased peak inspiratory pressure

  • Progressive oliguria despite adequate mean arterial pressure/carbon dioxide

  • ↓ Cardiac performance

A high-risk patient for ACS may present with tense abdomen, respiratory failure, and progressive oliguria in a multitrauma patient requiring aggressive resuscitation for hemorrhagic shock.

Common computed tomography findings in this patient population include extraperitoneal hematoma and/or extravasation, intra- and retro-peritoneal edema, and “shock bowel” defined as an intense mucosal enhancement producing a prominent, feather-like appearance to the small intestines.

The most practical and reliable method of measuring intra-abdominal pressures is through the urinary bladder, which acts as a passive conduit. The urinary bladder transmits intra-abdominal pressures without imparting any additional pressures from its own musculature. Fifty to 100 ml of saline is injected into the fully drained bladder. A Foley catheter is clamped distal to the aspiration port and a 16-gauge needle is inserted into this port, which is then attached to a transducer system with the pubic symphysis used as the zero reference point. Commercial kits are available for measuring bladder pressures (AbVisor Intra-abdominal pressure monitor, Wolfe Tory Medical Inc., Salt Lake City, Utah).

The consensus at the World Congress on Abdominal Compartment Syndrome defines this disease entity as persistent bladder pressures over 20 mm Hg with the new onset of organ failure. Organ dysfunction progresses as intra-abdominal pressure increases over this level. Once defined, ACS mandates immediate decompressive celiotomy.

This often rapidly reverses all the adverse affects of increased intra-abdominal pressure and dramatically improves oxygenation and pulmonary compliance, returning peak inspiratory pressures toward normal and promptly reversing the oliguria with a brisk diuresis of resuscitation fluids. Before decompression, all attempts to correct acid–base and electrolyte disturbances including potassium, magnesium, and calcium may avoid cardiac dysrhythmias after decompression. A respiratory therapist should also be immediately available to readjust ventilatory settings to prevent additional pulmonary barotrauma.

Decompression can be performed safely as a bedside procedure in the intensive care unit (ICU). However, with pressures greater the 35 mm Hg, decompression and re-exploration are required in the operating room to identify potential sources of ongoing hemorrhage.

References

  • 1. Kron L, Harman PK, Nolan SP: The measurement of intra-abdominal pressure as a criterion for abdominal re-exploration. Ann Surg 1984; 199: pp. 28-30.
  • 2. Richards WO, Scovill W, Shin B, Reed W: Acute renal failure associated with increased intra-abdominal pressure. Ann Surg 1983; 197: pp. 183-187.
  • 3. Kopelman T, Harris C, Miller RS, Arrillaga A: Abdominal compartment syndrome in patients with isolated extraperitoneal injuries. J Trauma 2000; 49: pp. 744-749.
  • 4. Biffl WL, Moore EE, Burch JM, et. al.: Secondary abdominal compartment syndrome is a highly lethal event. Am J Surg 2001; 182: pp. 645-648.
  • 5. Balough Z, McKinly BA, Cocanour CS, et. al.: Secondary abdominal compartment syndrome: an elusive complication of traumatic shock resuscitation. Am J Surg 2002; 184: pp. 538-544.
  • 6. Balough Z, McKinley BA, Holcomb JB, Miller CC, Cocanour CS, Kozar RA: Both primary and secondary abdominal compartment syndrome can be predicted early and are harbingers of multiple organ failure. J Trauma 2003; 54: pp. 848-861.
  • 7. Ertel W, Oberholzer A, Platz A, Stocker R, Trentz O: Incidence and clinical pattern of the abdominal compartment syndrome after “damage control” laparotomy in 311 patients with severe abdominal and/or pelvic trauma. Crit Care Med 2000; 28: pp. 1747-1753.
  • 8. Saggi BH, Sugerman HJ, Ivatury RR, Bloomfield GL: Abdominal compartment syndrome. J Trauma 1998; 45: pp. 597-609.
  • 9. McNelis J, Marini CP, Jurkiewicz A, Fields S, Caplin D, Stein D: Predictive factors associated with the development of abdominal compartment syndrome in the surgical intensive care unit. Arch Surg 2002; 137: pp. 133-136.
  • 10. Morris JA, Eddy VA, Blinman TA, Rutherford EJ, Sharp KWVA: The staged celiotomy for trauma issues in unpacking and reconstruction. Ann Surg 1993; 217: pp. 576-586.
  • 11. Eddy VA, Nunn C, Morris JA: Abdominal compartment syndrome: the Nashville experience. Surg Clin North Am 1997; 77: pp. 801-881.
  • 12. Cheatham ML, Safcsak K, Block EFJ, Nelson LD: Predictors of mortality in patients with open abdomens. Crit Care Med 1999; 27: pp. 170A.

Compartment Syndrome

J. Gregory Modrall

From Cronenwett JL, Johnston KW: Rutherford's Vascular Surgery, 7th edition (Saunders 2010)

Compartment syndrome is a recognized complication of several conditions treated by vascular surgeons. Failure to arrive at a timely diagnosis of compartment syndrome increases the risk of short- and long-term morbidity, including limb loss or permanent disability. Conversely, prompt recognition and appropriate management of compartment syndrome can optimize the chances of a full recovery. This chapter addresses the pathogenesis, diagnosis, and treatment of compartment syndrome of the lower leg and other less common sites.

Pathogenesis

The unifying feature that defines all compartment syndromes, regardless of cause or anatomic location, is an increase in intracompartmental pressure (ICP) that impairs tissue perfusion.

Local Hemodynamics

The adverse consequence of elevated ICP on tissue perfusion can be understood by applying Poiseuille's law


F = π r 4 Δ P 8 η L

to capillary blood blow within a muscle compartment. In this equation, F represents capillary blood flow, Δ P is the pressure gradient from the precapillary arteriole to the postcapillary venule, and r is proportional to the radius of the capillary to the fourth power. The viscosity of blood (η) and length of capillary ( L ) remain unchanged. Increasing ICP alters two variables in this equation: Δ P and R . As ICP rises, pressure is transmitted to the postcapillary venules, increasing the venous pressure and decreasing the arterial-venous pressure gradient (Δ P ). Furthermore, increased ICP may collapse capillaries, decrease their radius, and increase the resistance to flow.

Compartment Pressures

Critical Closing Pressure

Matsen suggested that there is a “critical closing pressure” above which capillaries collapse from transmural pressure and blood flow is arrested. The pressure at which capillary blood flow ceases has been debated over the decades. Using wick catheters inserted into the anterolateral compartment of dogs, Hargens and colleagues demonstrated that baseline capillary hydrostatic pressure in normotensive dogs was 25 ± 3 mm Hg, while hydrostatic pressure in postcapillary venules was 16 ± 4.4 mm Hg. They proposed that capillary perfusion pressure would drop precipitously if ICP exceeded 30 mm Hg. Using vital microscopy to observe the response of isolated rat cremasteric muscle to increased external pressure, Hartsock and coworkers found that a pressure gradient between ICP and mean arterial pressure (MAP) of 25.5 ± 14 mm Hg arrested capillary blood flow. Interestingly, they saw no significant collapse of arterioles, capillaries, or venules. Another study saw no significant collapse of arterioles with increased ICP but a modest reduction (≤25%) in the diameter of venules. Together, these studies disproved the “critical closing theory” proposed by Matsen and suggested instead that the arterial-venous pressure gradient is the critical determinant of capillary blood flow. This conclusion has direct implications for determining the threshold ICP that defines compartment syndrome.

Absolute ICP Threshold

Defining the threshold ICP that produces tissue injury and cell death is an important step in determining the pressure at which fasciotomy is advisable. Hargens and colleagues found that an absolute ICP of 30 mm Hg for 8 hours universally produced muscle necrosis in normotensive dogs, whereas pressures less than 30 mm Hg produced no muscle necrosis. Interestingly, tissues differ in their susceptibility to increased ICP. Early signs of endoneurial injury were observed at pressures of 30 mm Hg for 8 hours. Tissues' different susceptibility to injury may explain those cases in which a delayed fasciotomy fails to restore full neurologic function despite viable muscle in the compartment.

Dynamic ICP Threshold

Defining compartment syndrome based on an absolute pressure threshold is appealing in its simplicity but ignores the role of arterial blood pressure in compartment blood flow. Changes in arterial pressure affect the arterial-venous pressure gradient, altering compartment blood flow. Thus, some authors have proposed defining compartment syndrome using a pressure threshold relative to MAP or diastolic pressure. Heppenstall and associates found that uninjured muscle in dogs developed evidence of tissue ischemia on 31 P magnetic resonance spectroscopy when the difference between MAP and ICP (MAP – ICP) dropped below 30 mm Hg. Injured muscle showed greater sensitivity to ischemia, and tissue ischemia became evident when the difference between MAP and ICP was less than 40 mm Hg. In a small series of patients, Heppenstall and associates found that a dynamic pressure threshold (MAP – ICP) less than 40 mm Hg prevented unnecessary fasciotomy in a number of patients with absolute ICPs exceeding 30 mm Hg. Using the diastolic blood pressure as their reference point in a dog study, Heckman and coworkers found a dramatic increase in tissue injury and necrosis when the difference between the diastolic blood pressure and the ICP was less than 10 mm Hg. Comparing ICP criteria, McQueen and Court-Brown found that an absolute ICP threshold of 30 mm Hg would have resulted in fasciotomy in 43% of patients, whereas a dynamic ICP threshold of 30 mm Hg less than diastolic pressure resulted in only three fasciotomies. These studies provide compelling data suggesting that a dynamic ICP threshold relative to MAP or diastolic pressure is a more appropriate criterion for selecting patients for fasciotomy.
